    I just happened to search craigslist one day on break at work and happened to find an auto 1994 AWD Impreza for 700 dollars. I asked my friend (Butthau5) if he wanted to build a rally car and he said "I thought you'd never ask". Thus the time and money pit began. The original idea was just to 5 speed swap the car and race the NA 2.2 but due to circumstances butthau5 gained a donor bugeye wrx. The new plan is to GD wrx swap everything but use the ej22 short block. Maybe this car will be ready by next spring, who knows. I'm going to use this forum to document the long journey of hopefully finishing a project rally car.

    Here is the car as we got it


    Attached Files:

    silver03, tangledupinblu and Butthau5 like this.
  2. thomas franz
    Offline

    thomas franz Well-Known Member

    Likes Received:
    118
    Trophy Points:
    128
    The car was a road tripper apparently and came with a lot of maps and this bad boy.


    Attached Files:

    Krazylegz1485 and Butthau5 like this.
  3. thomas franz
    Offline

    thomas franz Well-Known Member

    Likes Received:
    118
    Trophy Points:
    128
    This is where we are at. We have the ej22 pulled and some other various things. Various new and old parts are scattered around and inside the car. The next task will be pulling the drive train and getting ready for the wrx swap.


    Attached Files:

    Butthau5 likes this.
  4. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,461
    Trophy Points:
    398
    Looks like a pretty clean shell! Couple little rust spots, but should be a good start.

    Building it for Stage Rally competition?

    Butthau5 likes this.
  5. thomas franz
    Offline

    thomas franz Well-Known Member

    Likes Received:
    118
    Trophy Points:
    128
    Thats the plan but we will probably do some rallycross as well. The car was taken care of very well and spent most of its life in salt free states. The super minor wheel well rust is about all there is. It could have been a trusty daily driver.

  6. MrBlue
    Offline

    MrBlue Well-Known Member

    Likes Received:
    427
    Trophy Points:
    148
    Fun project...LMK if you need a cage put in it. Just finished a 1980 928s Porsche


    Attached Files:

    Butthau5 likes this.
  7. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,874
    Trophy Points:
    573
    Beefy!

    MrBlue likes this.
  8. thomas franz
    Offline

    thomas franz Well-Known Member

    Likes Received:
    118
    Trophy Points:
    128
    That cage looks like it can withstand anything! We most likely will. We planned on doing it ourselves but i have only just started mig welding. I also have a 5 month old so chances are I will want to sub out the work so i can focus my free time to do the mechanical/body work. Whats a cage like that run for price? You can pm me if youd like.

    MrBlue likes this.
  9. MrBlue
    Offline

    MrBlue Well-Known Member

    Likes Received:
    427
    Trophy Points:
    148
    That one is SCCA/PCA cert spec for roadracing. You will need to let me know the events/class you plan to run so I can get the current rulebook so you pass tech and get the cage certified. Rally cages in general need a more elaborate door bar section that will be specified in the rules. Also beware that the price of steel is crazy right now over $300 for a 20' stick of 1 3/4" .120 wall DOM tube, I used 3 on the porsche....you will need 4 or more for a rally cage.
    If you are new to welding and have no experience in cage design I suggest you sub that part of the build out for sure, your life literally depends on it.

    You can PM me with any questions....Cheers!

    euro, Butthau5 and tangledupinblu like this.
  10. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,461
    Trophy Points:
    398
    Yea, that's a pretty barebones cage compared to a decent rally cage.

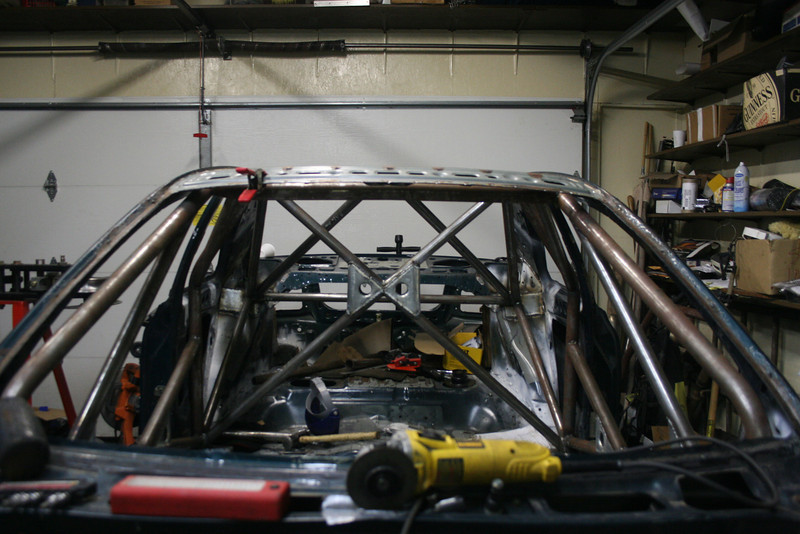

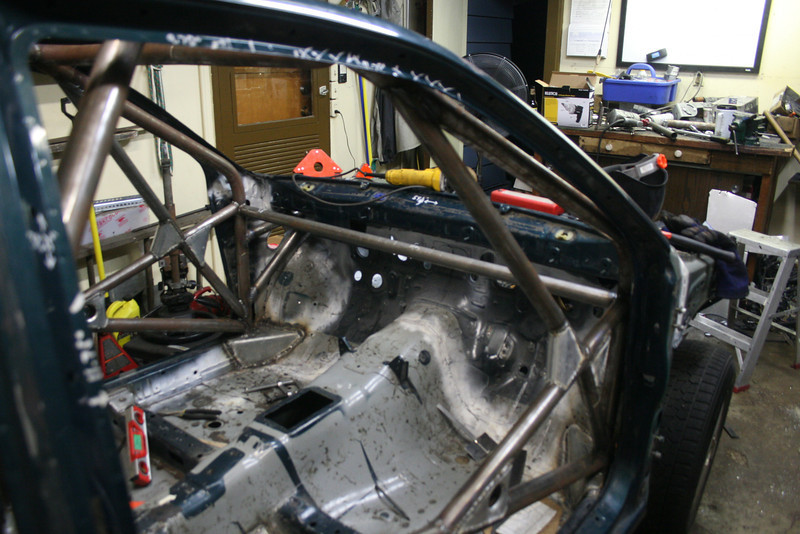

    Here's the cage Carl built for Ziptie 171 v2.0. He cut and bent every piece, but only tacked them in and had a certified welder come in and finish it
    [​IMG]

    [​IMG]

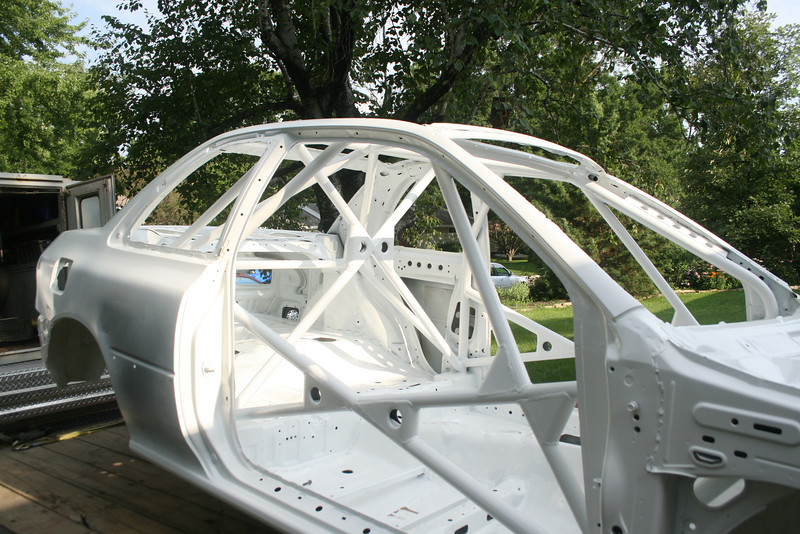

    After powdercoat
    [​IMG]


    I believe this one was built to FIA spec, not just Rally America. Or maybe that was Izzy's....
