DIY grounding kit and intake

Discussion in 'DIY Instructables' started by MOsubie, Nov 16, 2010.

  1. MOsubie
    Offline

    MOsubie Well-Known Member

    Likes Received:
    15
    Trophy Points:
    203
    Well, I was wondering if anyone has done these two simple diy's.

    I already did them myself, but just wanting everyone else who did it to show what they got!

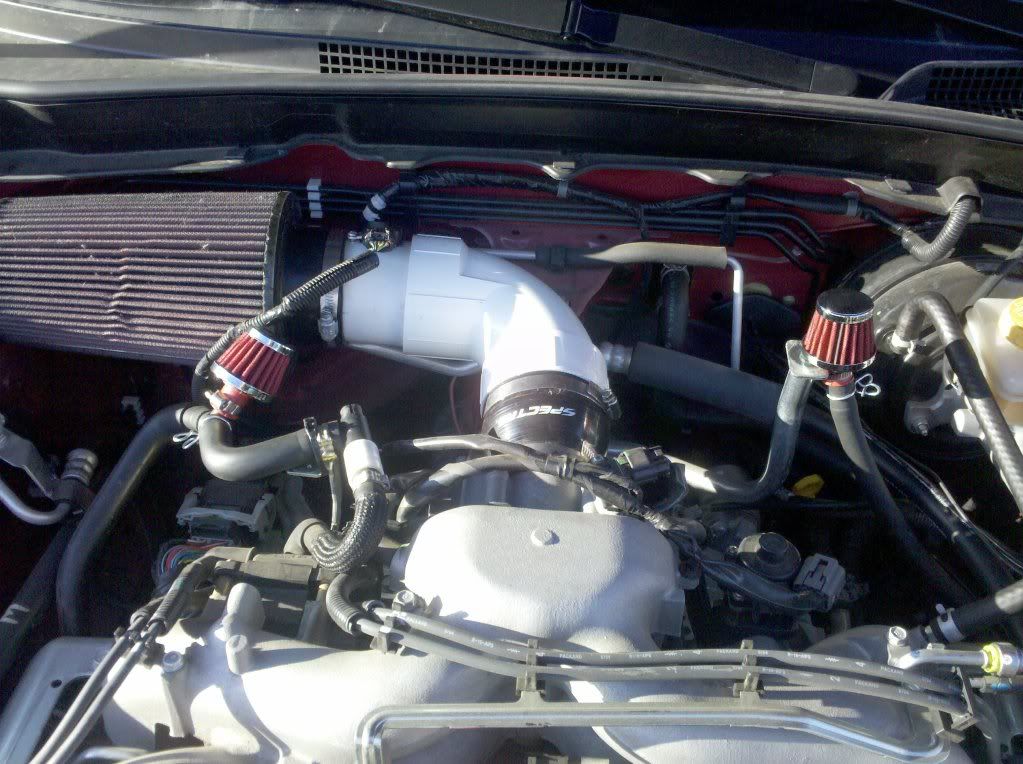

    Here's mines: Also very sorry for the big picture... ;P
    [​IMG]

  2. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113

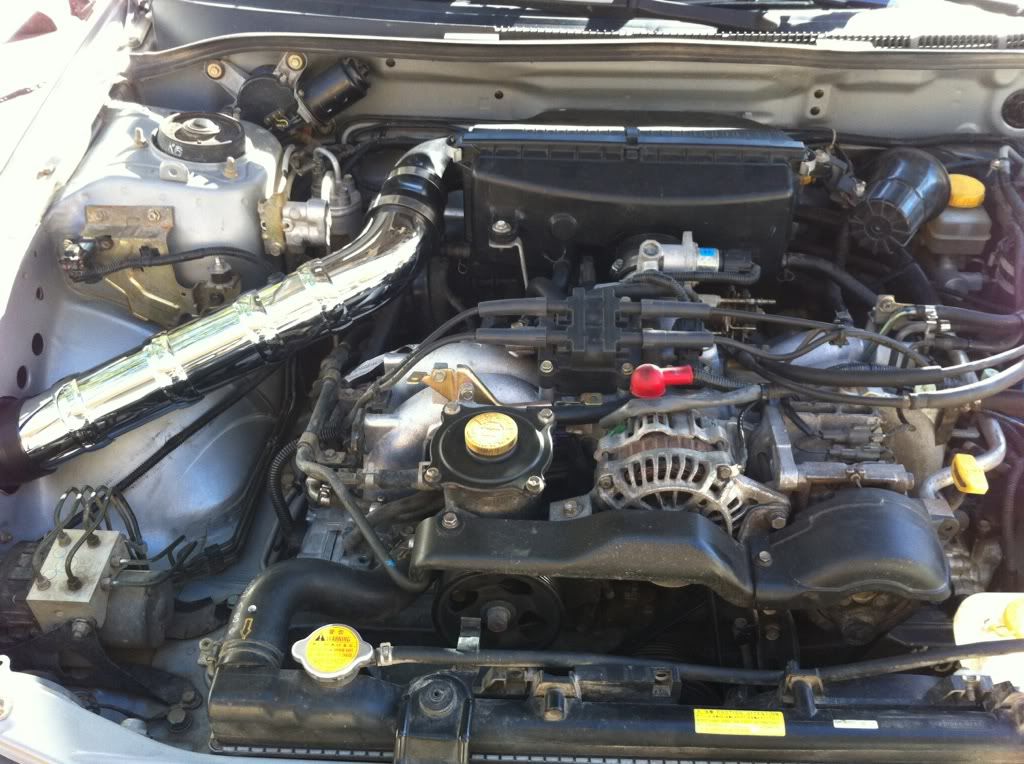

    Heres what I've done, seems to work pretty well but the inner diameter of the PVC is bigger then the OEM so the MAF sensor freaks out and all sorts of pretty lights come on the dash...Still working on a solution, but the car runs and drives great.

    [​IMG]

  3. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    You should get your fuel trims checked out.
    Should be running pretty lean if so.

  4. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113
    Yeah I should, also some oil squirts out of the right breather...not sure if it only does it when the oil is overfilled, but it doesn't seem to cause any issues but it just seems strange that both sides dont do it. How do I go about checking the fuel? Any easy tricks?

  5. Shibbs
    Offline

    Shibbs The Daywalker

    Likes Received:
    74
    Trophy Points:
    283
    Yeah, get it tuned.

    Or put the stock intake back on, whichever is easier for you.

  6. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113
    hmmm where bullwinkle? haha The car is also an 4eat, I was asking around about tuning a while back and people were pretty reluctant because I guess theres not much more umph to get out of everything, in a nutshell a waste of money. Thoughts?

  7. AWDimprezaL
    Offline

    AWDimprezaL has more posts than you

    Likes Received:
    1,818
    Trophy Points:
    573
    well it wouldnt hurt, expecially for how **** of gas mileage you are more than likely getting with a setup like that, with your computer trying to compensate.

  8. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113
    This is probably true, it does seem to burn through gas pretty quickly, then again a lot of that is probably due to the way I drive. See Top Gear Prius VS M3 gas milage race.

  9. thunderdan1313
    Offline

    thunderdan1313 New Member

    Likes Received:
    0
    Trophy Points:
    0
    u should talk to brain i forgot his name on here but its brain robbin his tuner lives by ur skool i do belive

  10. Rusty
    Offline

    Rusty Member

    Likes Received:
    0
    Trophy Points:
    26
    When you get to it I'm interested in seeing your grounding set up, as well. I've heard it improves idle, exc but have yet to do it.

    Also what is the with the mini air filters on the lines? Not sure if I've ever seen that before.

  11. AWDimprezaL
    Offline

    AWDimprezaL has more posts than you

    Likes Received:
    1,818
    Trophy Points:
    573
    Those are breathers.

  12. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113
    They make it so that crap cant get into your engine, but vapors can get out. Traditionally those lines lead back into the airbox burning anything that made it through the engine the first time around. It dosent give any better milage but it means that there are fewer emissions out the back, and we really dont care about those in MN thankfully.

  13. Rusty
    Offline

    Rusty Member

    Likes Received:
    0
    Trophy Points:
    26
    One way air valve eh? Thanks for the good explanation.

  14. MOsubie
    Offline

    MOsubie Well-Known Member

    Likes Received:
    15
    Trophy Points:
    203
    Were you asking about mines?

  15. AWDimprezaL
    Offline

    AWDimprezaL has more posts than you

    Likes Received:
    1,818
    Trophy Points:
    573
    Mines?

  16. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    Scaled his maf quickly last night, hopefully it's works well.

    About 7-8% richer before scaling.

  17. MOsubie
    Offline

    MOsubie Well-Known Member

    Likes Received:
    15
    Trophy Points:
    203
    I'm glad I don't have maf. :)

  18. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,698
    Trophy Points:
    398
    Like wise.

  19. burtonboy00
    Offline

    burtonboy00 Well-Known Member

    Likes Received:
    47
    Trophy Points:
    113
    I wish I didnt have MAF life would be easy peasy

  20. MOsubie
    Offline

    MOsubie Well-Known Member

    Likes Received:
    15
    Trophy Points:
    203
    Lol, it would be.

  21. MOsubie
    Offline

    MOsubie Well-Known Member

    Likes Received:
    15
    Trophy Points:
    203
    Well here is my write-up of my diy grounding, just in case anyone wants to do it.

    Bought 10 ft. of 8 or 6 ga. wire from home depot (before I knew that my own store carries it also) also bought the terminal connectors from there.

    Tools:
    Soldering gun
    Solder
    Sanding paper
    8, 10, 12 mm sockets if I remember right. Mostly 10

    Process:
    I soldered the terminals to the wires to make for a better conductivity.

    First wire goes from intake manifold to behind the washer fluid reservoir.
    Second goes from negative battery terminal to behind washer fluid reservoir.
    Third goes from alternator to behind fuse box.
    Last one goes from engine block to the right side of engine bay.

    Wherever I had the groundings to I sanded down the paint til it was back to metal.

    Make sure you measure first before cutting the wires.

    I will load pictures of the grounds whenever I feel like dealing with the cold or whenever anybody needs them.
