First Glimpse of our "shop" car

Hey guys,

I haven't really showed anyone else this yet, but I thought since it's nearing completion, I would give you guys a view of what it will be.

Here is a quick list of things that are done or will be

Complete wire tuck + all OEM wire mess delete
Coils in car
13b rew build and install
custom radiator setup
Boost Innovation's SS tubular turbo manifold + dual tial 38's and 4" full exhaust
custom Aluminium oil pan
custom intake manifold
granny 3 link 8.8 rearend install
all stock gauges + switches gone.... autometer in place
plus a whole bunch more stuff

GT4202 with 1.01 hotside


Compared to a PT67:




Polished Rotors


Exhaust flange


Here is the pile-o-**** that came off the car so far.... note the wiring..... that is everything from the stock harness from the seats forward


Well here is a shot of the new wheel combos for the street. They are 5Zigen's with Mickey Thompson drag radials 275, should hook on the street. Have a set of 10.5 full slicks for the track



Ahead of a low 11sec EVO


Here are some of the engine bay

Note the following

cross memeber for 13rew install
complete wire tuck
coils in car
radiator setup




the radiator is for an Integra... it is such a perfect fit.




in the next pics you can see the cross memeber i did. 1/2 cold rolled steel that bent in a press to fit perfectly. I am going to lay a strip of urethane down between the cross member and engine for mounting.

another thing that happend that i didnt design for, is that the tranny will just sit on the cross memeber aswell. no need to pull the tranny for engine extraction, and very easy engine installs. somthing that actually worked with bonus as well

OH yeah and since the fc engine sits at a stupid ass angle and not in the middle of the car, this one will sit square with the car and in the middle, **** like that bothers me for some reason




To be continued...



yep, that's badass



Nice pictures showing a rotary engine's rotor and plates. When I talked to Cobb a couple of months ago they said they were planning on offering an AP and other stuff for the RX8.



Here are some of the IC setup.








There will be some black trim around where the bumper was cut.

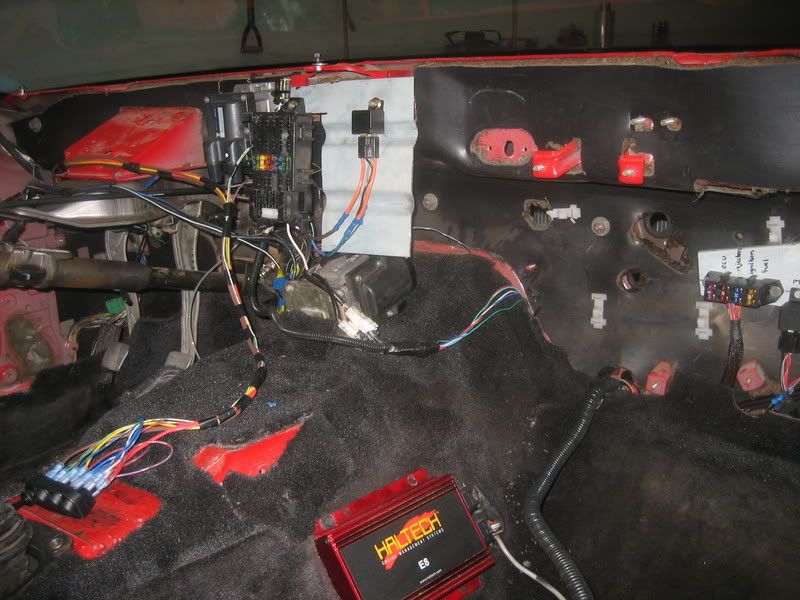

i can reach all the fuses and everything with the dash on, youd be amazed how much room is back in there with the heater/ac stuff out
