FMS top mount intercooler (08-14 wrx, 05-09 lgt)

Fast Motorsports top mount intercooler for sale. Fits 2008-2014 WRX and 2005-2009 Legacy GT.

$300

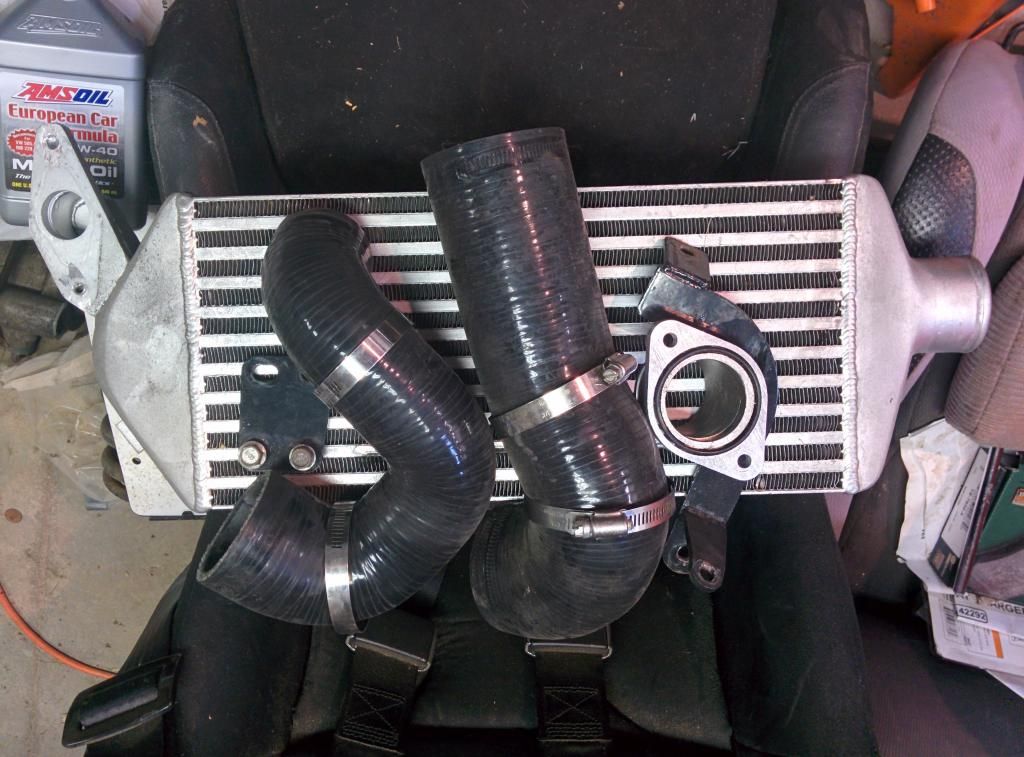

Comes with everything pictured as well as the hood scoop splitter (unused). This is technically the one for the wrx, but I used it on my legacy. Everything but the splitter fit.

This is the process west replica style that doesn't take a billion years to line up like the stock style where the core bolts directly to the turbo.

Ran this for ~3 years and 30k miles. No issues aside from the bpv mounting holes stripping out (common issue). Helicoiled both for a awhile but it kept leaking at the front one. Ended up drilling that spot out for a through bolt. No more leaks.

Link to a new one: http://www.importimageracing.com/fast-motorsports-top-mount-intercooler-2008-2014-subaru-wrx.html



Fins:



Bpv mount:



If you want more pics, just ask. Giggitty.



Added pics. The back bolt is helicoiled and holds a stock bolt just fine. For the front bolt i just used a nut and bolt from the hardware store.

Iirc the only hardware that came with the kit was the 1 bolt that attached the black bracket to the bottom of the core, and the 2 bilts for the drivers side mounting bracket extension (small rectangular tab in the first pic).



bump



^



Sold. Thanks Jake/Tim!
