Fog light question

Discussion in 'General Subaru Discussion' started by silver03, Dec 27, 2014.

  1. silver03
    Offline

    silver03 Well-Known Member

    Likes Received:
    1,335
    Trophy Points:
    348
    03 WRX. Fogs just won't come on. They were last working normally a couple weeks ago. There is no green indicator light when pressed in and no relay click, but the switch illuminates with all other dash lights when headlights are on.
    What I have done: (nothing more, nothing less)

    1. Pulled fuse and put in another =no go
    2. Swapped relays with known working one =no go
    3. Swapped a fog light bulb out with another known working one =no go

    What to do or test next? thanks

    silver03, Dec 27, 2014
    #1
  2. Ryan FailRad
    Offline

    Ryan FailRad Well-Known Member

    Likes Received:
    1,061
    Trophy Points:
    248
    Call your insurance company.. It's totaled..
    Maybe try checking the wiring, could possibly be a bad ground somewheres

    Ryan FailRad, Dec 27, 2014
    #2
  3. Sjogun
    Offline

    Sjogun Active Member

    Likes Received:
    257
    Trophy Points:
    73
    Bad switch, wiring, or shut your brights off :)

    Sjogun, Dec 27, 2014
    #3
    Ryan FailRad likes this.
  4. Volatle
    Offline

    Volatle Well-Known Member

    Likes Received:
    66
    Trophy Points:
    113
    [​IMG]

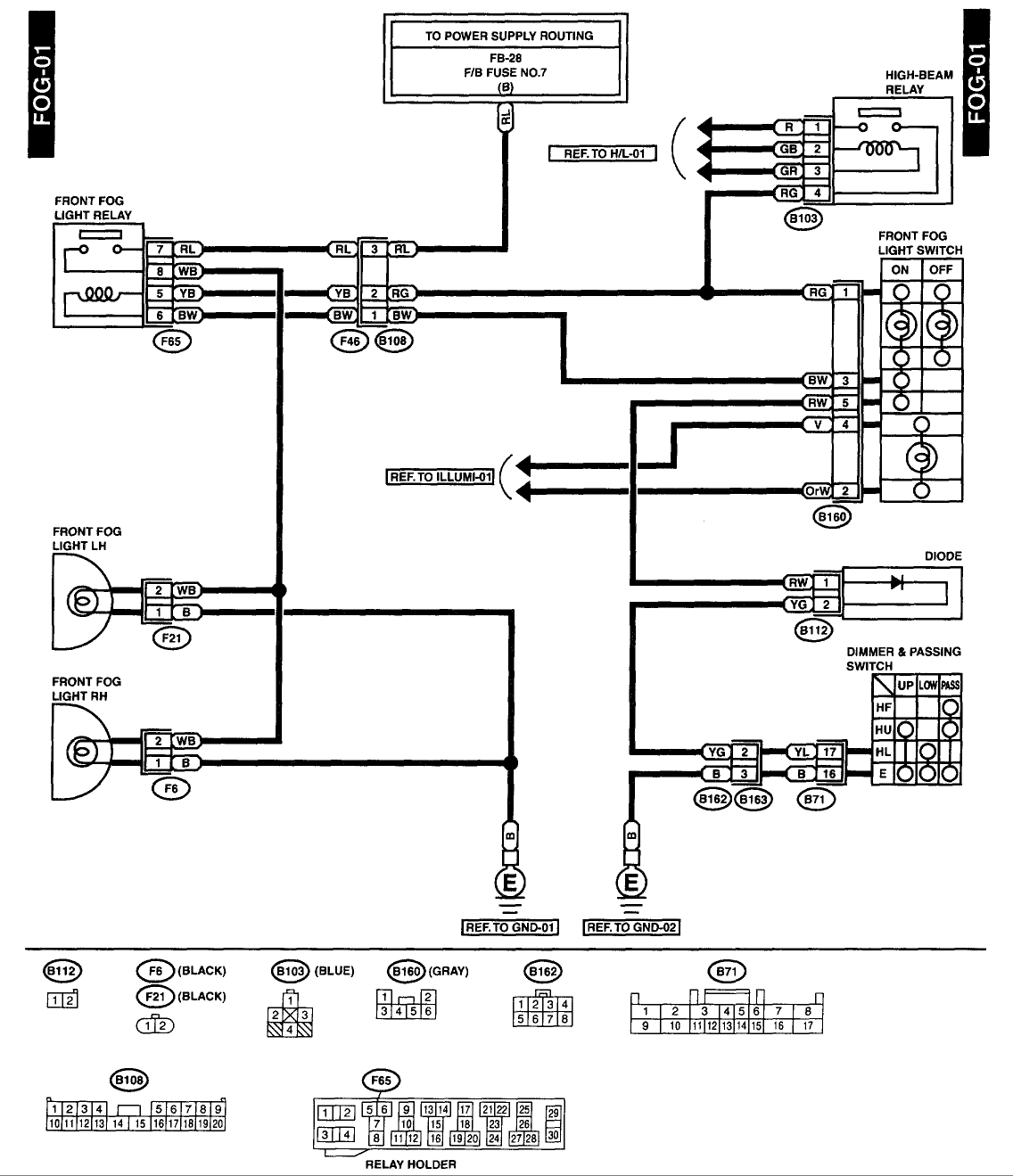

    Here is a wiring diagram. Hope it helps, follow your wires and check your grounds.

    Volatle, Dec 28, 2014
    #4
    Sjogun and silver03 like this.
  5. Just-someone
    Offline

    Just-someone Well-Known Member

    Likes Received:
    19
    Trophy Points:
    103
    Could be that your foglight harness has burnt out

    Just-someone, Dec 29, 2014
    #5
