Modded Sidefeed Injectors

Discussion in 'For Sale : Car Parts' started by Moleness, May 8, 2010.

Thread Status:
Not open for further replies.
  1. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248

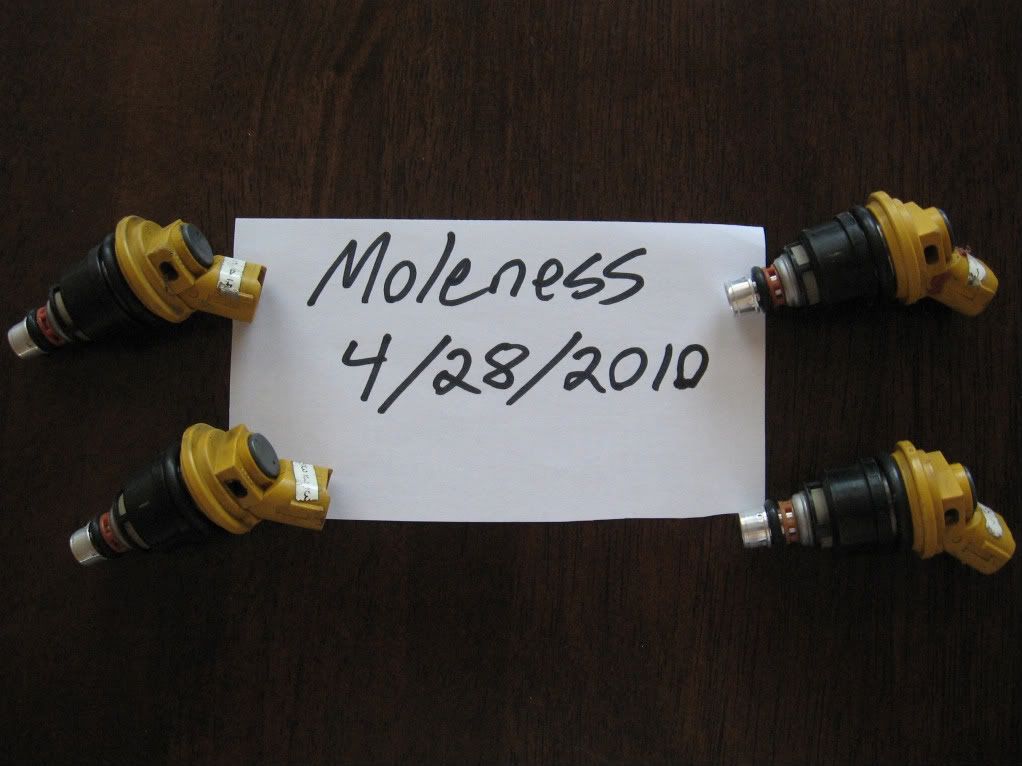

    I have a set of modded sidefeed injectors. They fit 04-06 STI's for sure and any other sidefeed Subaru. (maybe LGT or FXT? Do your homework ;) )

    Three were good, and one ran rich. I purchased a newly modded/cleaned injector that matches the set to replace it.

    All 4 have been cleaned and flow tested, and not installed since, so they are as new as modded injectors get. A new set goes for $390.

    SOLD

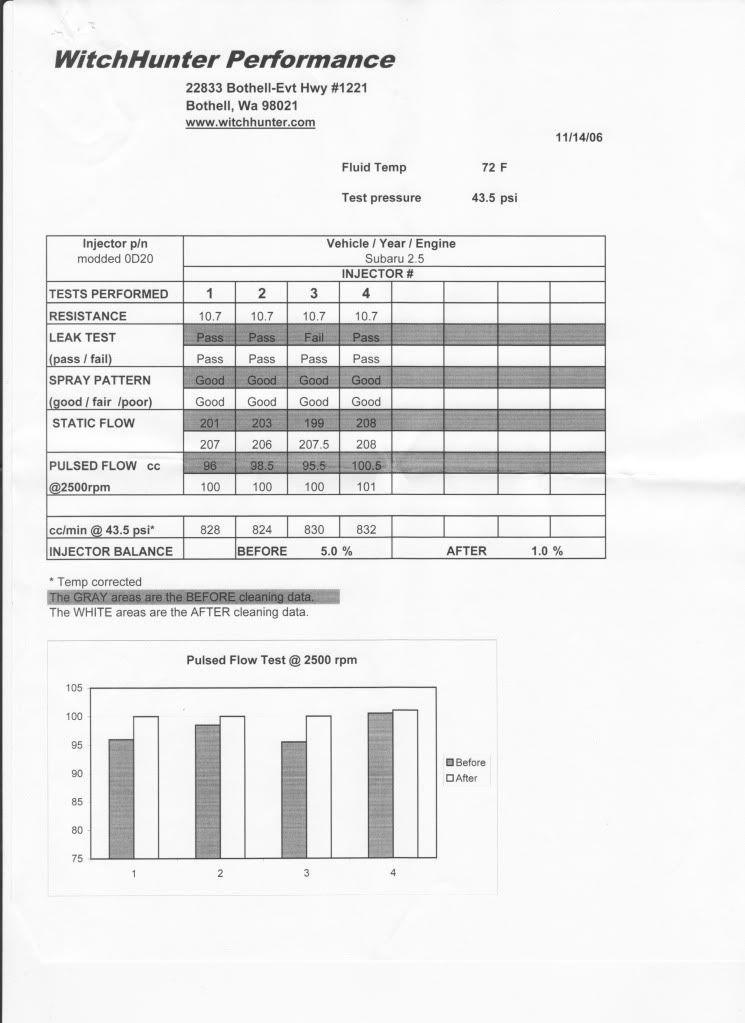

    Original Flow sheet from when Wichhunter serviced the set on '06 (#1 went on the fritz):

    [​IMG]

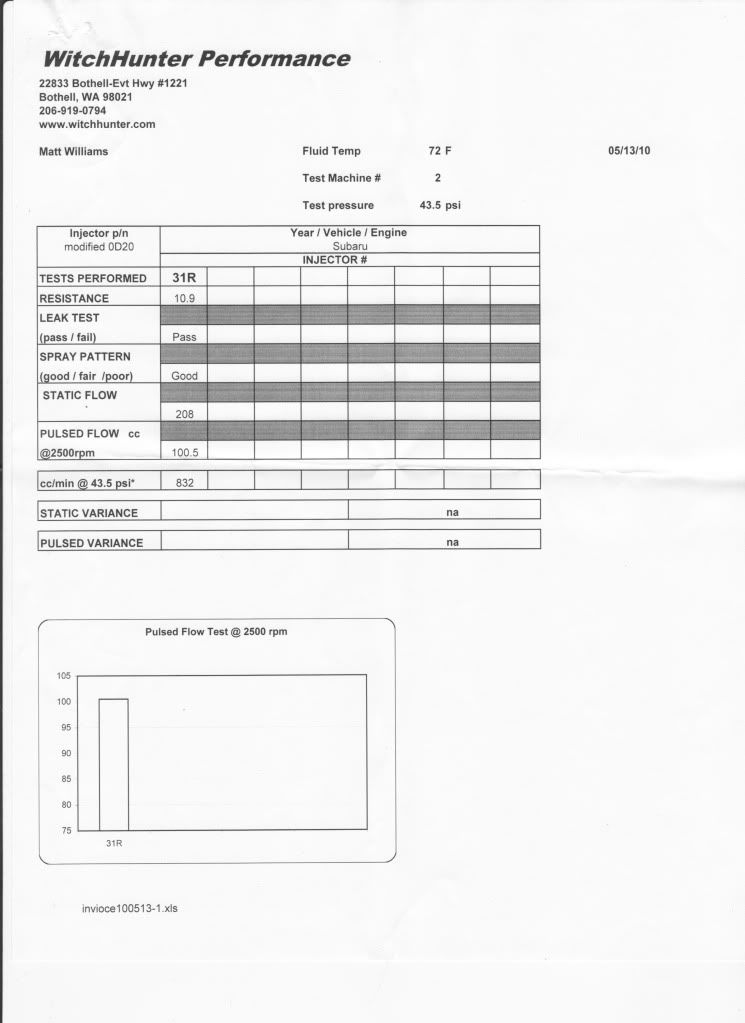

    The injector I just bought to replace #1, and it's flow sheet:

    [​IMG]
    [​IMG]

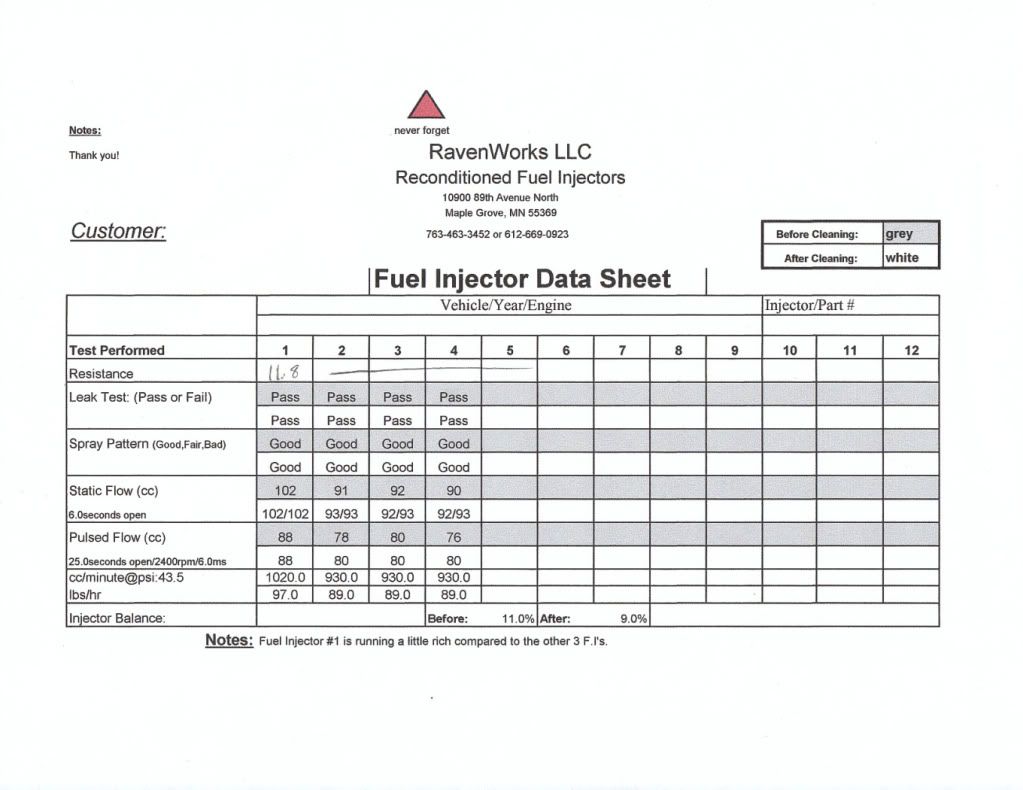

    Recently tested on a high-reading machine locally, not installed since. This is where I found that #1 was staying open too long or something.

    [​IMG]
    [​IMG]
    [​IMG]

    Moleness, May 8, 2010
    #1
  2. jdm4you
    Offline

    jdm4you New Member

    Likes Received:
    2
    Trophy Points:
    0
    How many cc's are these's?

    jdm4you, May 11, 2010
    #2
  3. Threshld1
    Offline

    Threshld1 Well-Known Member

    Likes Received:
    93
    Trophy Points:
    233
    cc/min @ 43.5psi 1020, 930, 930, 930...

    Threshld1, May 11, 2010
    #3
  4. jdm4you
    Offline

    jdm4you New Member

    Likes Received:
    2
    Trophy Points:
    0
    Wow!!! Ok. Way bigger then I need. GLWS though!!!

    jdm4you, May 11, 2010
    #4
  5. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    According to witchhhunter, who serviced them a couple years ago, they are 824-832cc's. Like I said, some sort of variable caused higher than normal readouts at ravenworks

    BUMP for me having another injector coming that will match the set, so I will be selling a matched set and the asking price will be updated accordingly ;)

    Moleness, May 13, 2010
    #5
  6. john
    Offline

    john Well-Known Member

    Likes Received:
    39
    Trophy Points:
    113
    I run a set of modified sidefeed stockers in my '05 LGT, which are rated at 816cc/min. Mine were modified by Perrin.

    Good price - someone buy these.

    john, May 13, 2010
    #6
  7. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    Bump!

    I now have a full, matched, clean, good as new set ready to install. See OP for details :)

    Moleness, May 19, 2010
    #7
  8. KSAL
    Offline

    KSAL Well-Known Member

    Likes Received:
    23
    Trophy Points:
    223
    I can vouch for these things. They were in my STi for a few years until I moved to 1260's. They will make GREAT power for anyone looking for it. I made 491 on racegas and they held that just fine. Anybody looking for a good deal its right here!

    KSAL, May 20, 2010
    #8
  9. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    Bump for reasonable offers...I may even be talked into helping with install ;)

    Moleness, May 23, 2010
    #9
  10. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    I will take $316.50 if i get it by sunday.

    Moleness, May 26, 2010
    #10
  11. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    this!!!

    Moleness, May 29, 2010
    #11
  12. vangstaboi86
    Offline

    vangstaboi86 Well-Known Member

    Likes Received:
    24
    Trophy Points:
    223
    bump.

    vangstaboi86, May 29, 2010
    #12
  13. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    Bump for lowered price...

    Moleness, Jun 4, 2010
    #13
  14. Moleness
    Offline

    Moleness I can change the internet Staff Member

    Likes Received:
    182
    Trophy Points:
    248
    Sold, yay!

    Moleness, Jun 6, 2010
