DIY: Installing Autodimming Homelink Rear View Mirrors in the 9-2X

Discussion in 'DIY Instructables' started by Adibee, May 5, 2014.

  1. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38

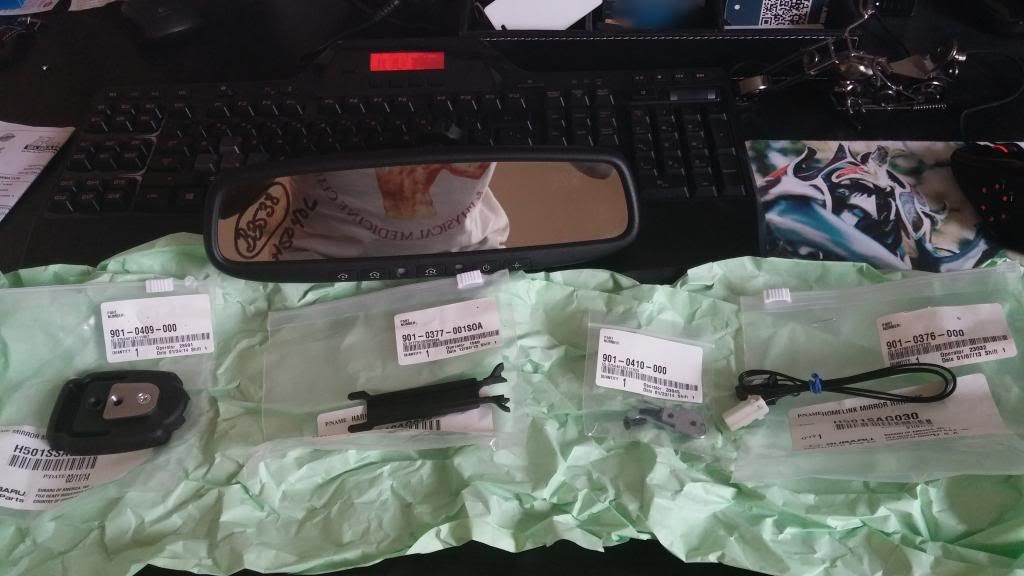

    These are the parts that I ordered for my Homelink/Compass Install


    [​IMG]

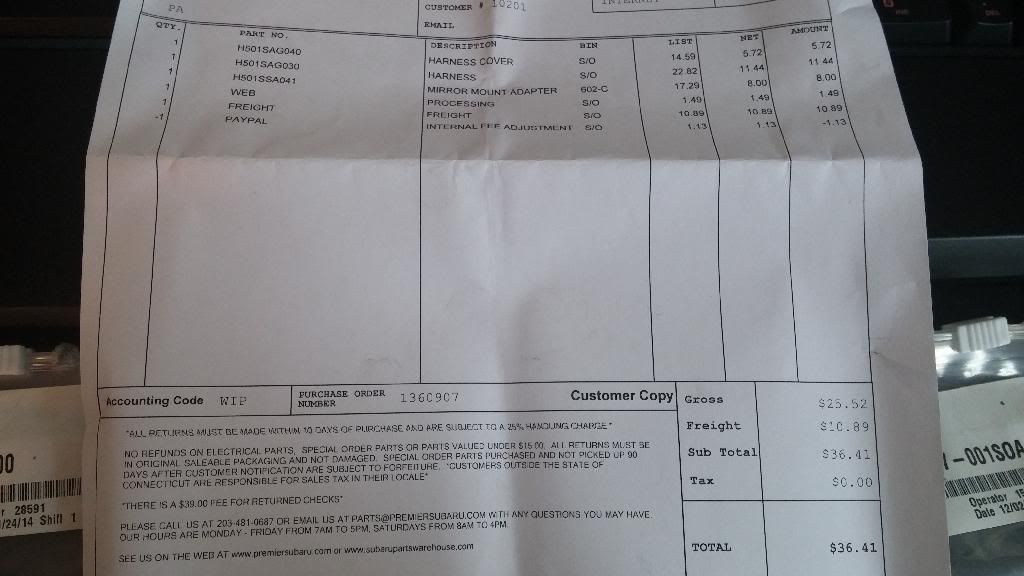

    Complete Parts list with price

    [​IMG]

    Installing the Homelink Mirror ::

    Remove the Stock mirror by twisting it 90 degrees to the right

    [​IMG]

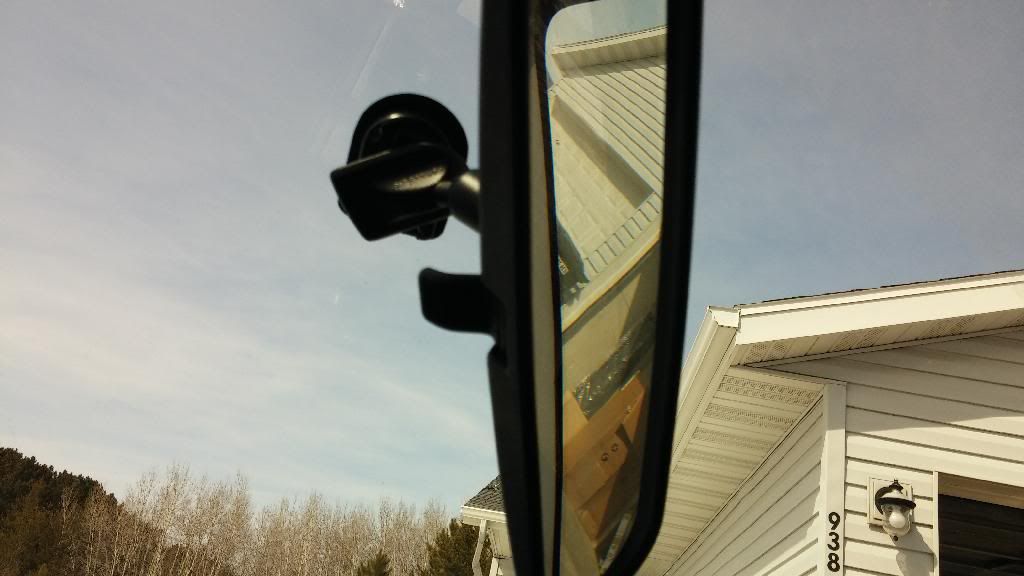

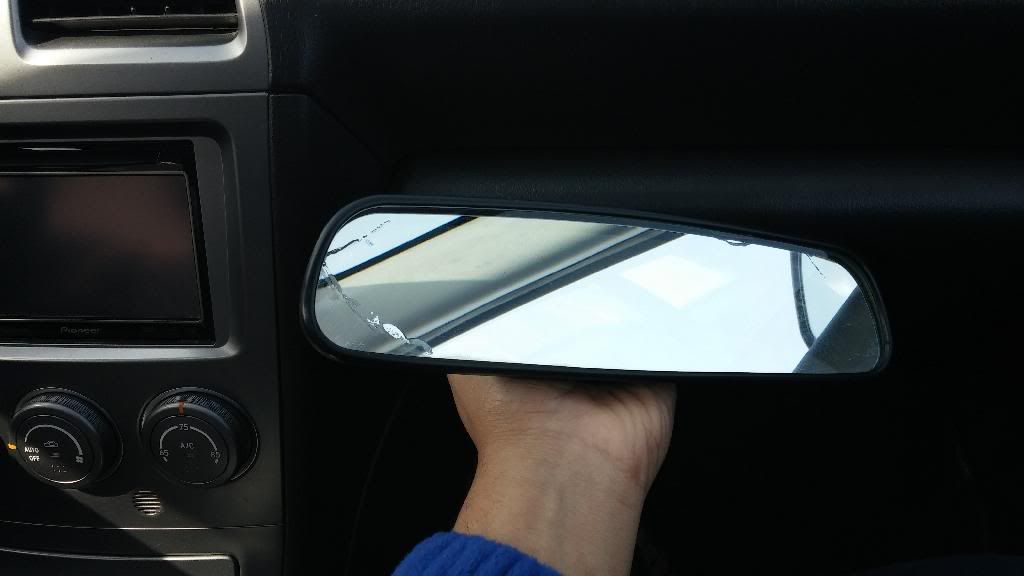

    Get the stock mirror out

    [​IMG]

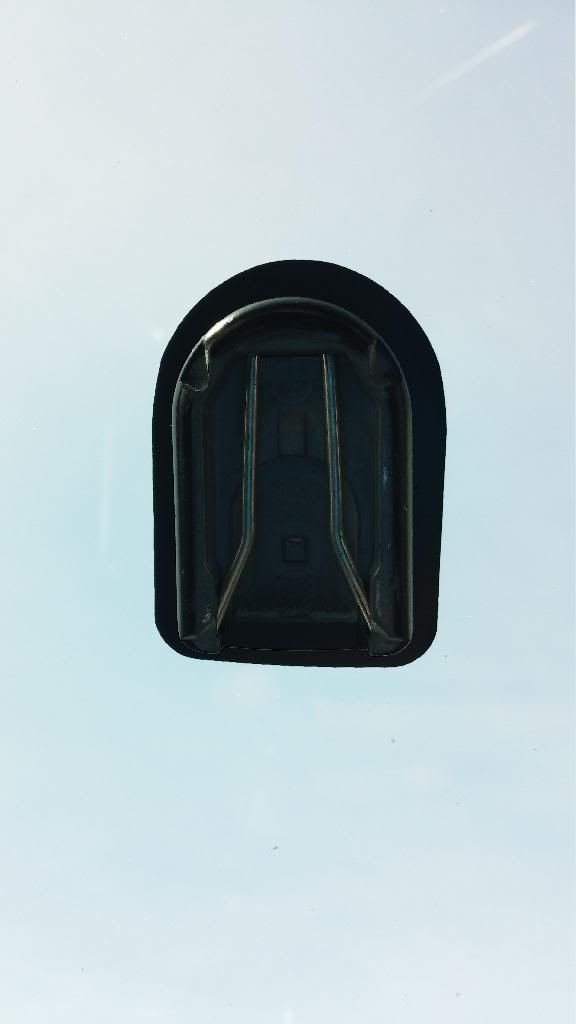

    This is how the stock mount looks like:

    [​IMG]

    Remove the Stock clip out

    [​IMG]

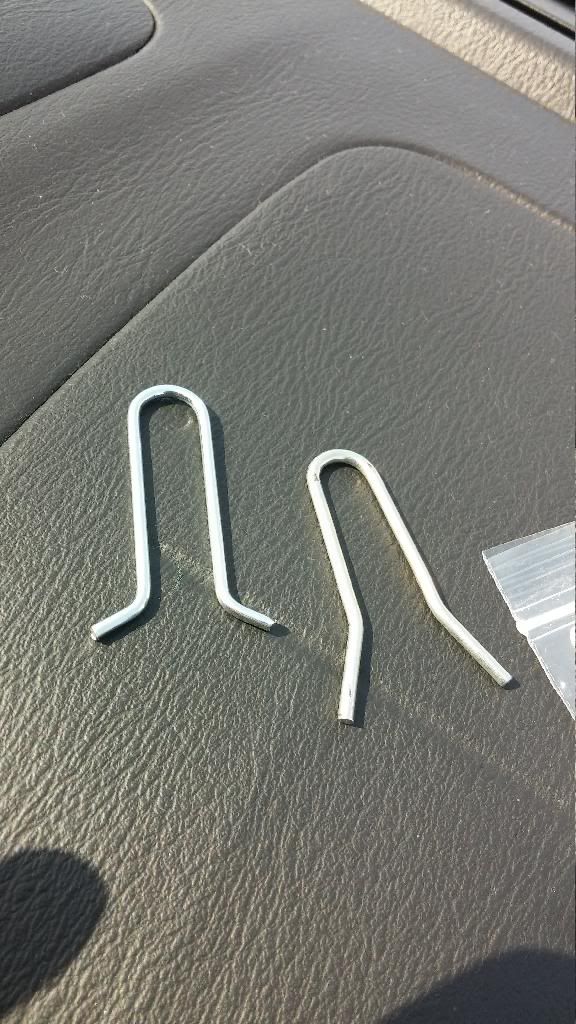

    The new clip on the left , stock on the right

    [​IMG]

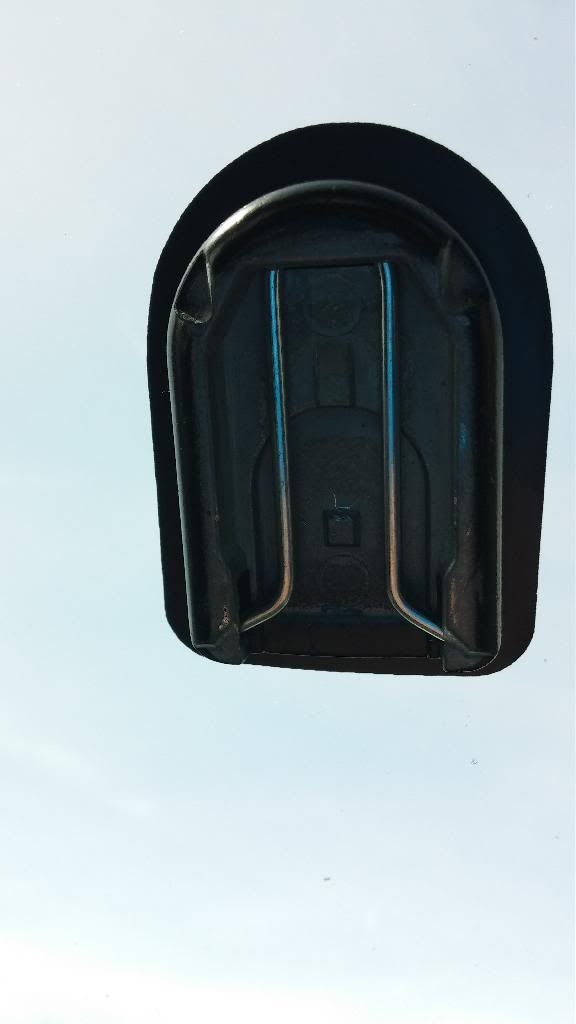

    Insert the new clip

    [​IMG]

    Slide the Cast iron into the clip might be a little PIA to put in

    [​IMG]

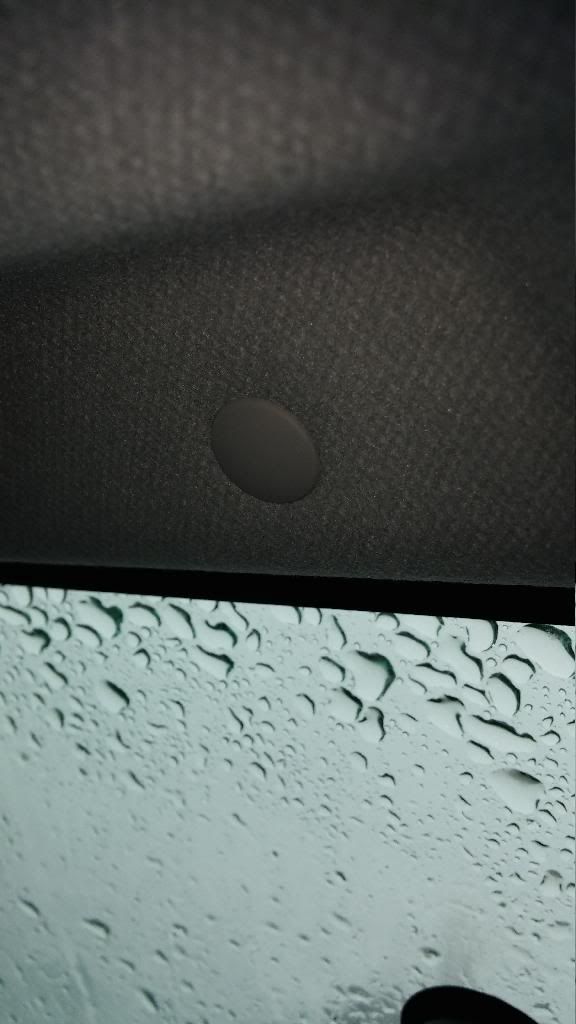

    Remove the bulb cover

    [​IMG]

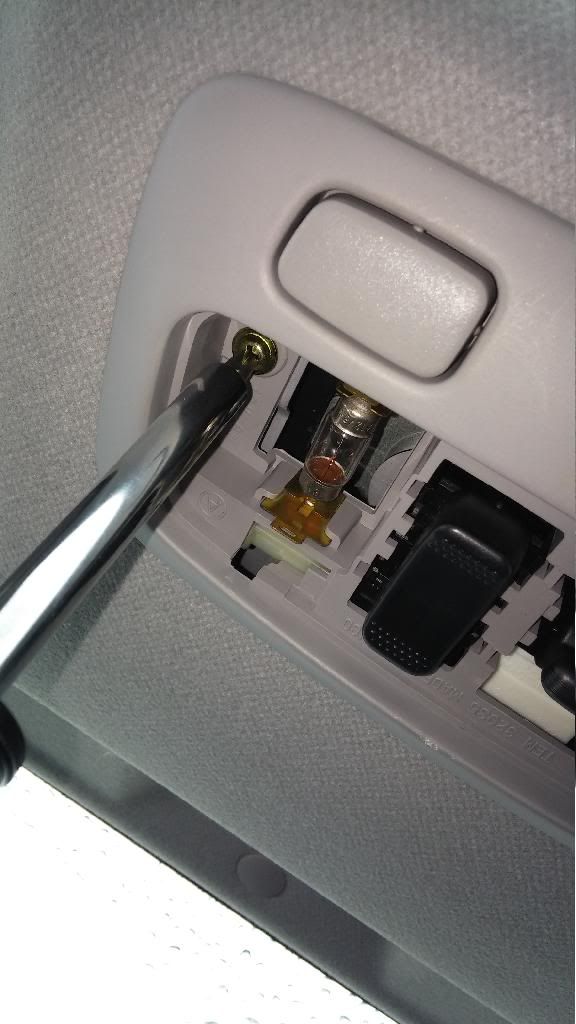

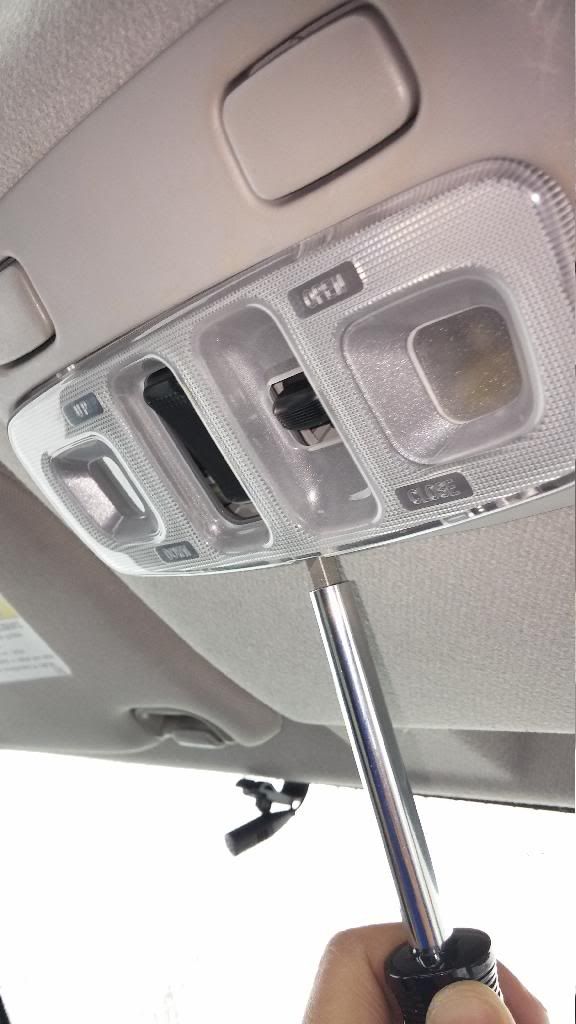

    Once the covers out take out the screws on either side of the console light assembly


    [​IMG]

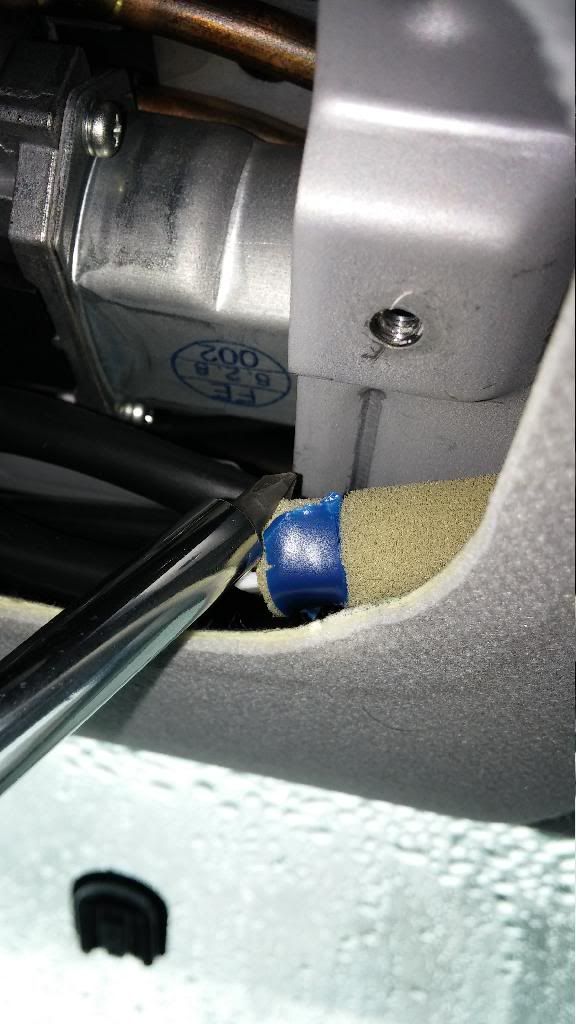

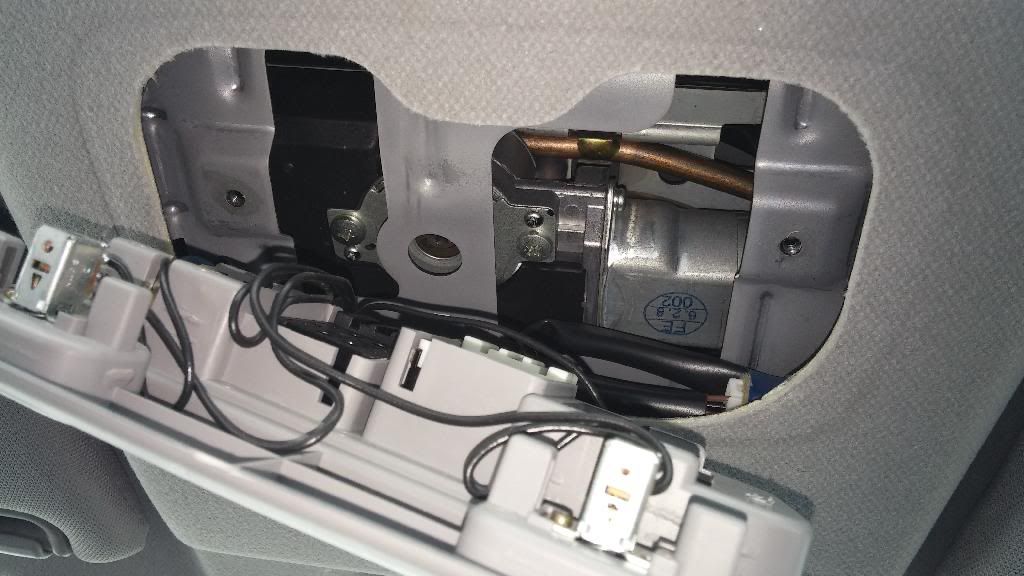

    Remove the the console and look for the wire plug

    [​IMG]

    Gothca!

    [​IMG]

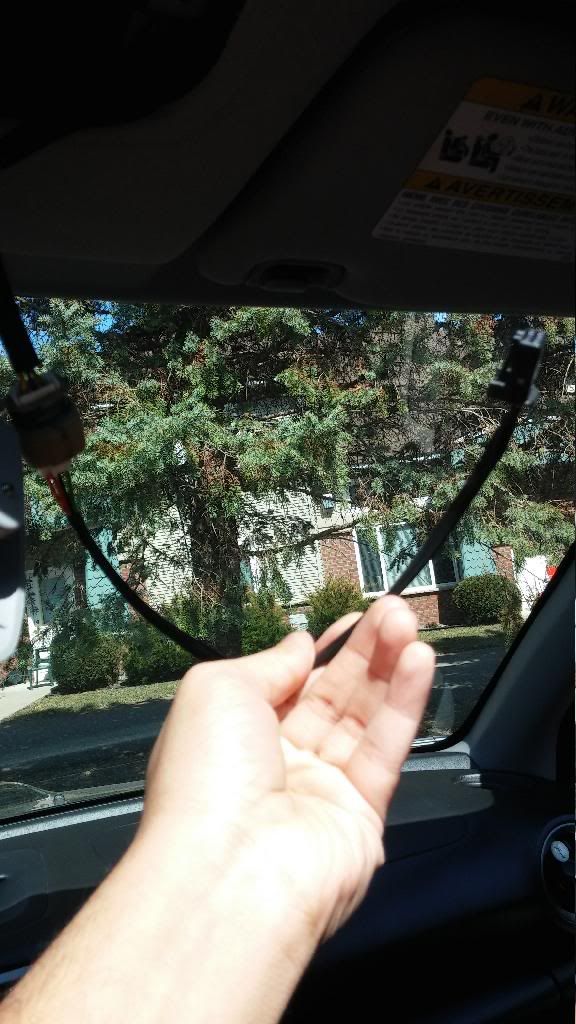

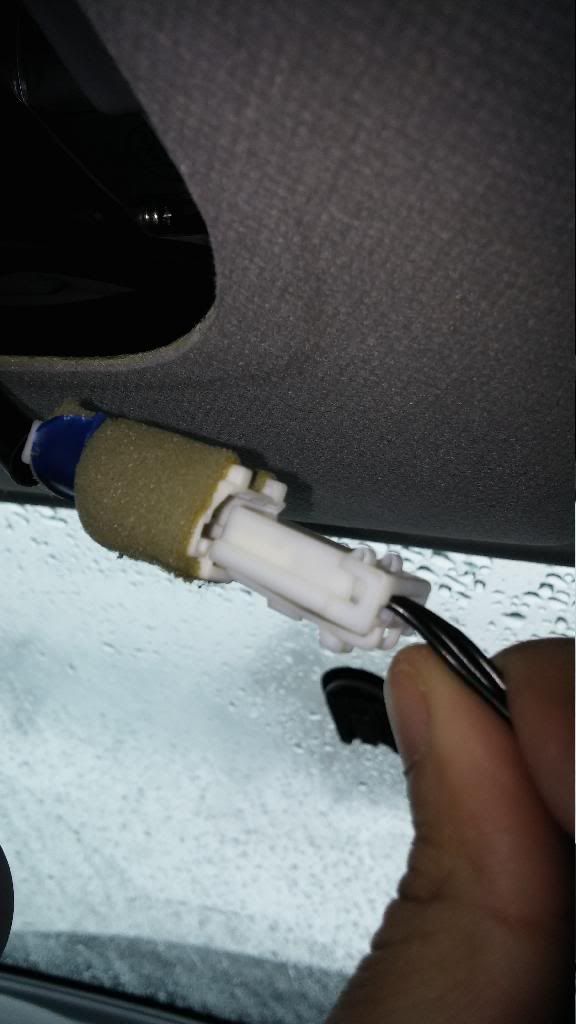

    Plug in the wiring harness to the plug

    [​IMG]

    [​IMG]

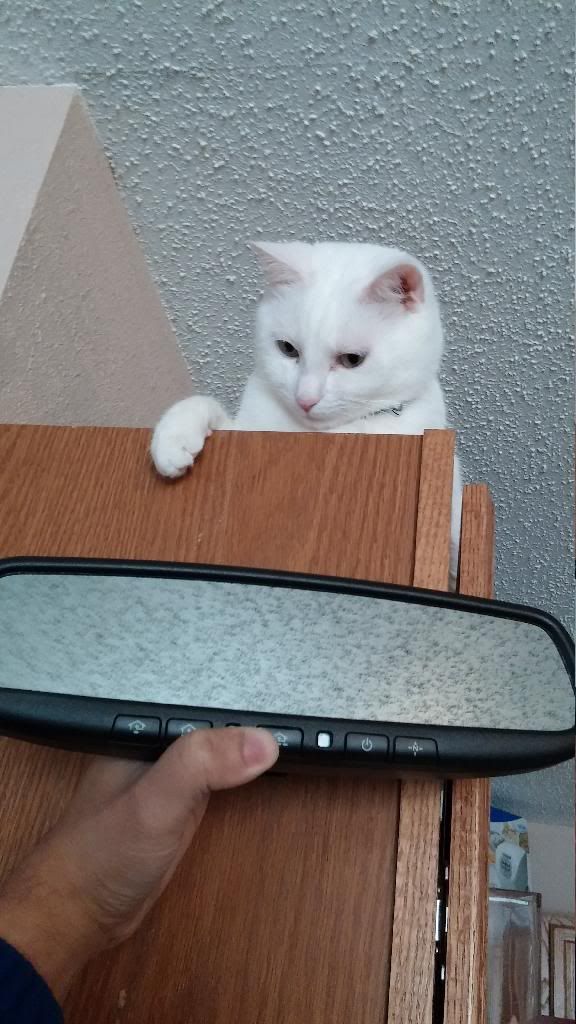

    Get your Homelink Mirror from your cat

    [​IMG]




    Pry this open

    [​IMG]

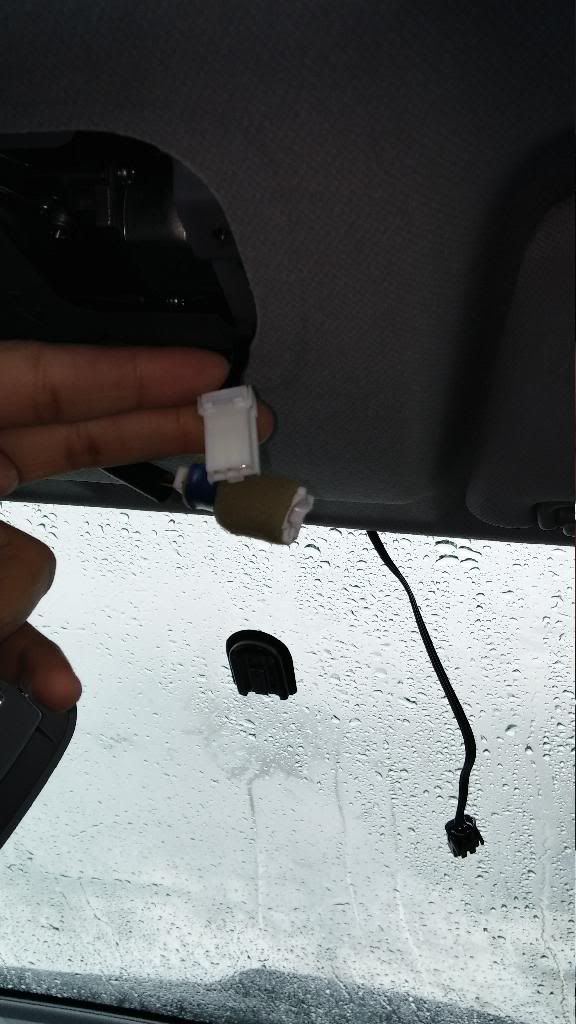

    Route the homelink harness through the overhead trim

    [​IMG]


    Slide the wire cover

    [​IMG]

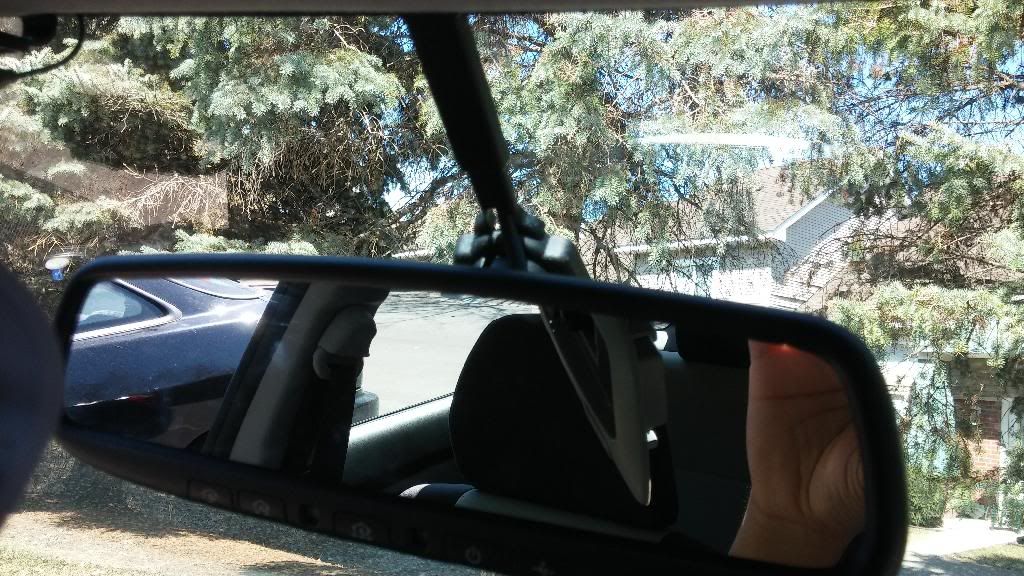

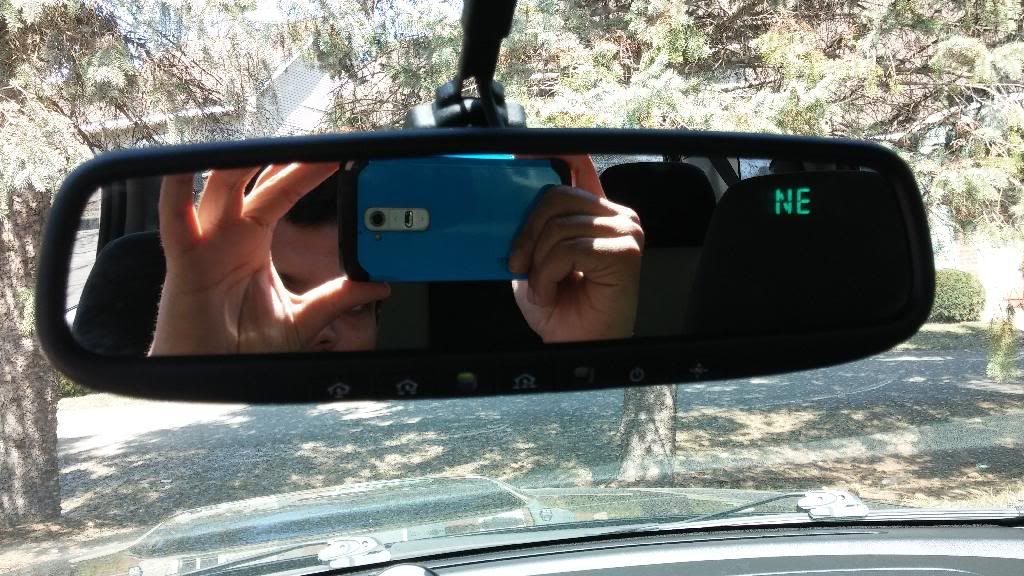

    Start your car and enjoy your new Autodiming Homelink MIRROR: :banana: :rock:

    [​IMG]

    idget and Ryan FailRad like this.
  2. GiMp
    Offline

    GiMp Well-Known Member

    Likes Received:
    297
    Trophy Points:
    168
    Where did you get the mirror?

  3. Ryan FailRad
    Offline

    Ryan FailRad Well-Known Member

    Likes Received:
    1,058
    Trophy Points:
    173
    Very nice

  4. AndyBoyee
    Offline

    AndyBoyee Member

    Likes Received:
    35
    Trophy Points:
    38
    What are the other buttons for? On my mirror there's only 2 button. One for auto dimmer and one for compass.

  5. GiMp
    Offline

    GiMp Well-Known Member

    Likes Received:
    297
    Trophy Points:
    168
    Garage door. Homelink

    AndyBoyee likes this.
  6. jojocat
    Offline

    jojocat Member

    Likes Received:
    3
    Trophy Points:
    13
    I saw the parts list and price and was like, wow, wish I could get one for a recent impreza for that cheap. But then noticed the mirror isn't on the list. :)

    I'll be keeping my eyes out for accessory clearance sales in a couple years. I got tweeters for my 98 legacy for dirt cheap in about 2003! Ah, patience...

  7. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    You can use mirrors from Hyundai like I did. They are cheaper if you search for them online.

    Nhibbs and jojocat like this.
  8. jojocat
    Offline

    jojocat Member

    Likes Received:
    3
    Trophy Points:
    13
    Cool! Didn't know that's what you did here...I'll check that out. The accessory kit from subaru to add this is like over $150...too much!

  9. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    Yeap those are really expensive, if you do go with the hyundai makesure you get the harness from ebay. The stock one wont work.

  10. Fatboy Walrus
    Offline

    Fatboy Walrus Member

    Likes Received:
    94
    Trophy Points:
    38
    Neat write up! Hey Adibee, did you ever get some flaps on that 92x?

  11. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    Hey Walrus I have'nt was thinking about it but never got to it. Have you tried it on yours? We still gotta meet up mang!

    Fatboy Walrus likes this.
  12. Fatboy Walrus
    Offline

    Fatboy Walrus Member

    Likes Received:
    94
    Trophy Points:
    38
    I actually purchased some RA flaps. Was trying to figure out install but needed a decent drill. Looks easy just a small PITA. Always free on weekends! would like to get them together and touch exhaust tips :p Congrats on the DIY!

  13. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    Were you able to put them in? I know Rally Armors are pretty good fit on these. Ya for sure Im open on weekends and weekdays too. Just give me a shout and we can make it happen!

  14. thomas franz
    Offline

    thomas franz Member

    Likes Received:
    98
    Trophy Points:
    38
    can you post up a link of the mirror your purchased? Thinking of doing this myself

  15. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    Hi Thomas I would highly recommend. It makes life so much easier if your driving at night now I wish my side mirrors were auto dim too. And the homelink reduces clutter on your visor. Here is a link I found very similar to this though I got mine for about 70$

    http://www.ebay.com/itm/GENTEX-453-...Parts_Accessories&hash=item540f9d62a0&vxp=mtr

  16. thomas franz
    Offline

    thomas franz Member

    Likes Received:
    98
    Trophy Points:
    38
    Sweet thanks man! This may be a stupid question but with an aftermarket harness this will be a plug and play?

  17. Adibee
    Offline

    Adibee Member

    Likes Received:
    31
    Trophy Points:
    38
    Nope not a stupid question at all :). The aftermarket one that I used would work on the hundai and kia homelinks, the subaru stock one wont work. I have a stock oem plug laying around if you plan to install stock subaru homelink let me know.

  18. GiMp
    Offline

    GiMp Well-Known Member

    Likes Received:
    297
    Trophy Points:
    168
    Just to add, if you have a base model and do not have the map lights up top, you probably do not have the harness to plug this into.
