    R u playing slot machines with those heads or what? U know USDM love u long time! LOL

    Musashi, Jun 2, 2009
    #46
  2. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

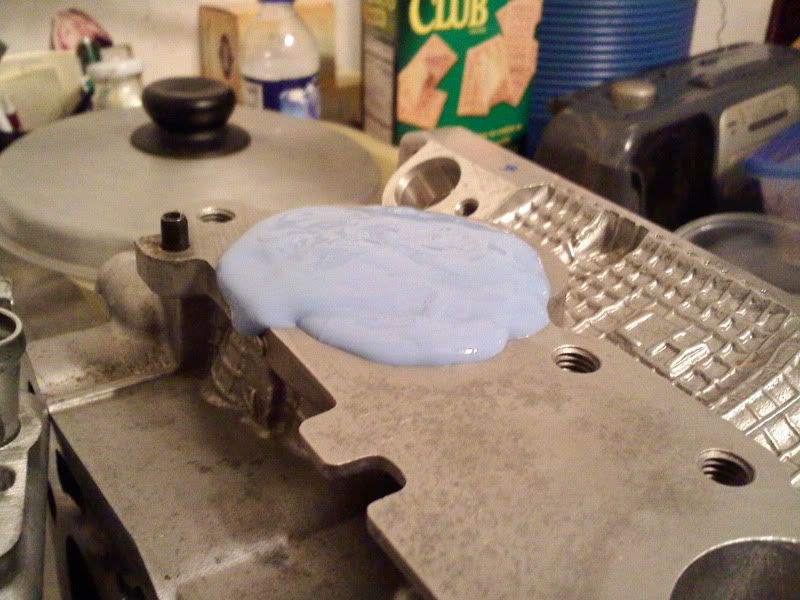

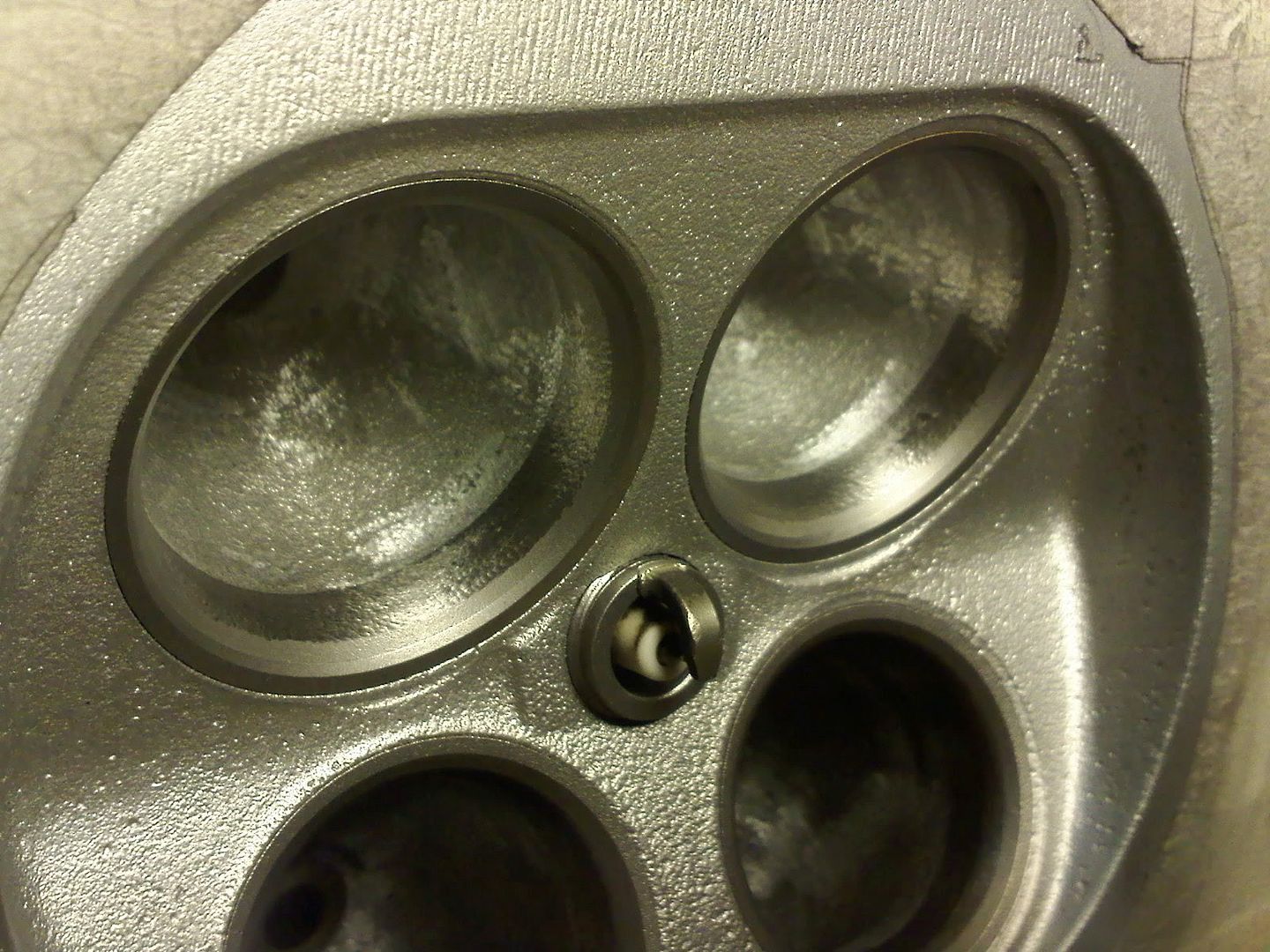

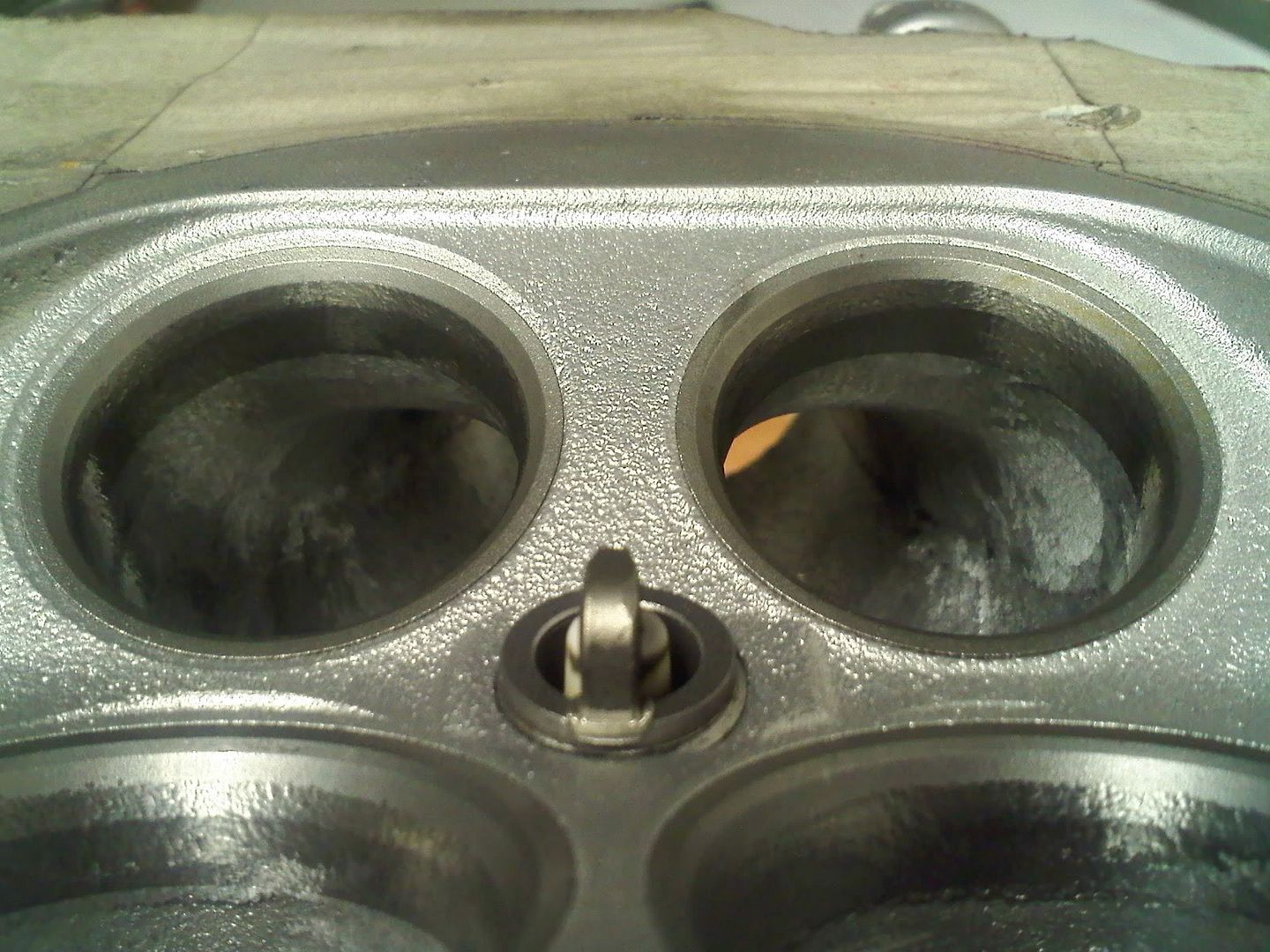

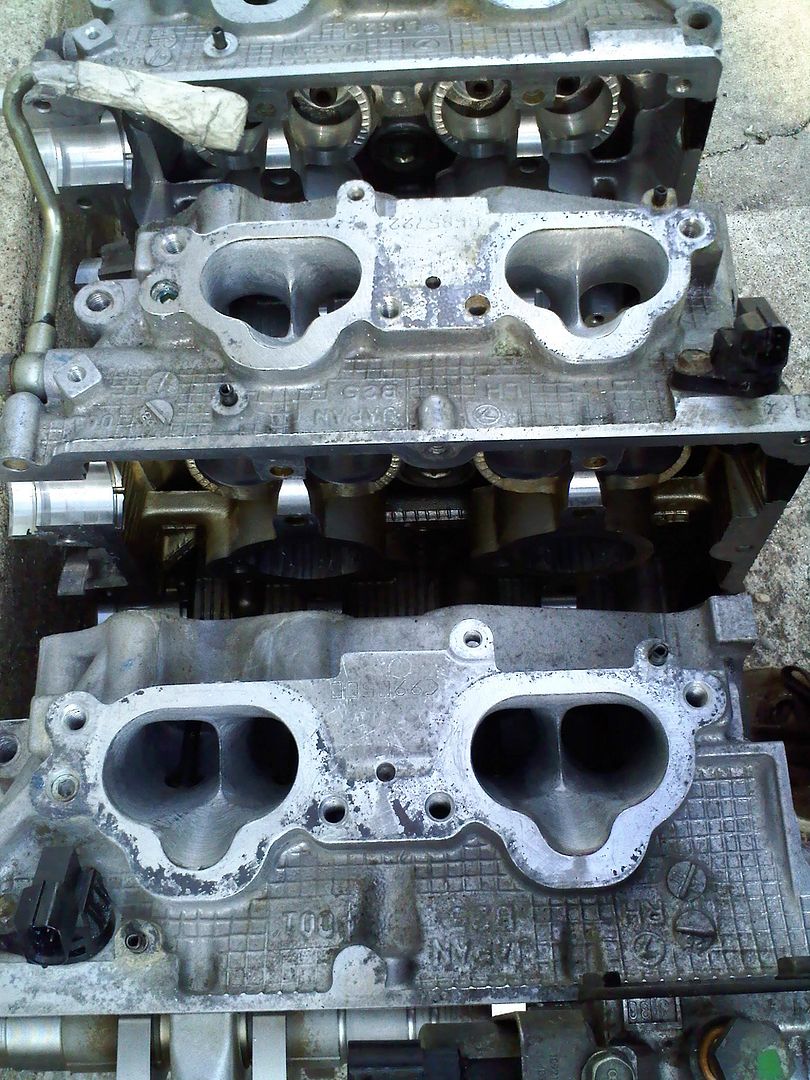

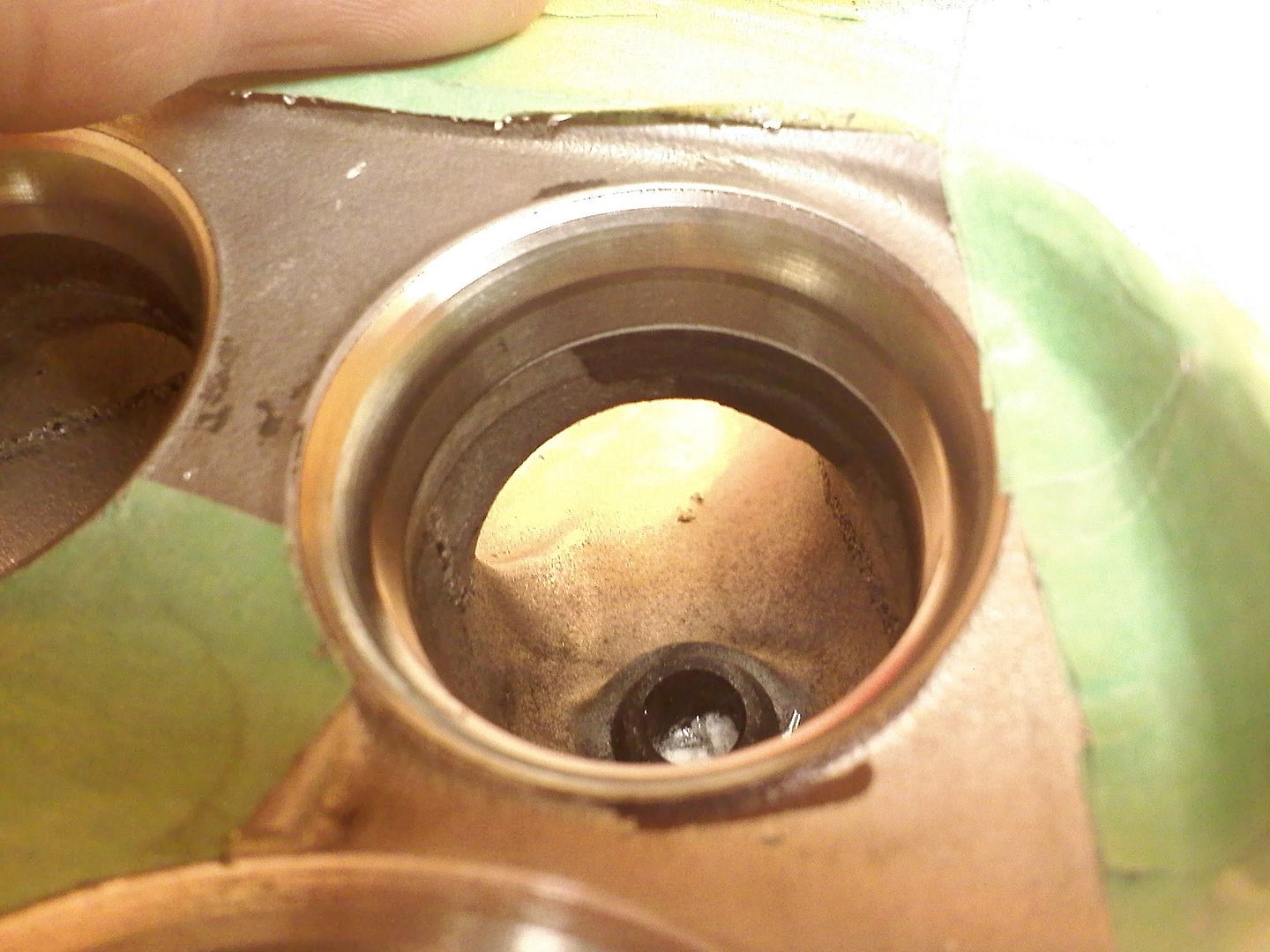

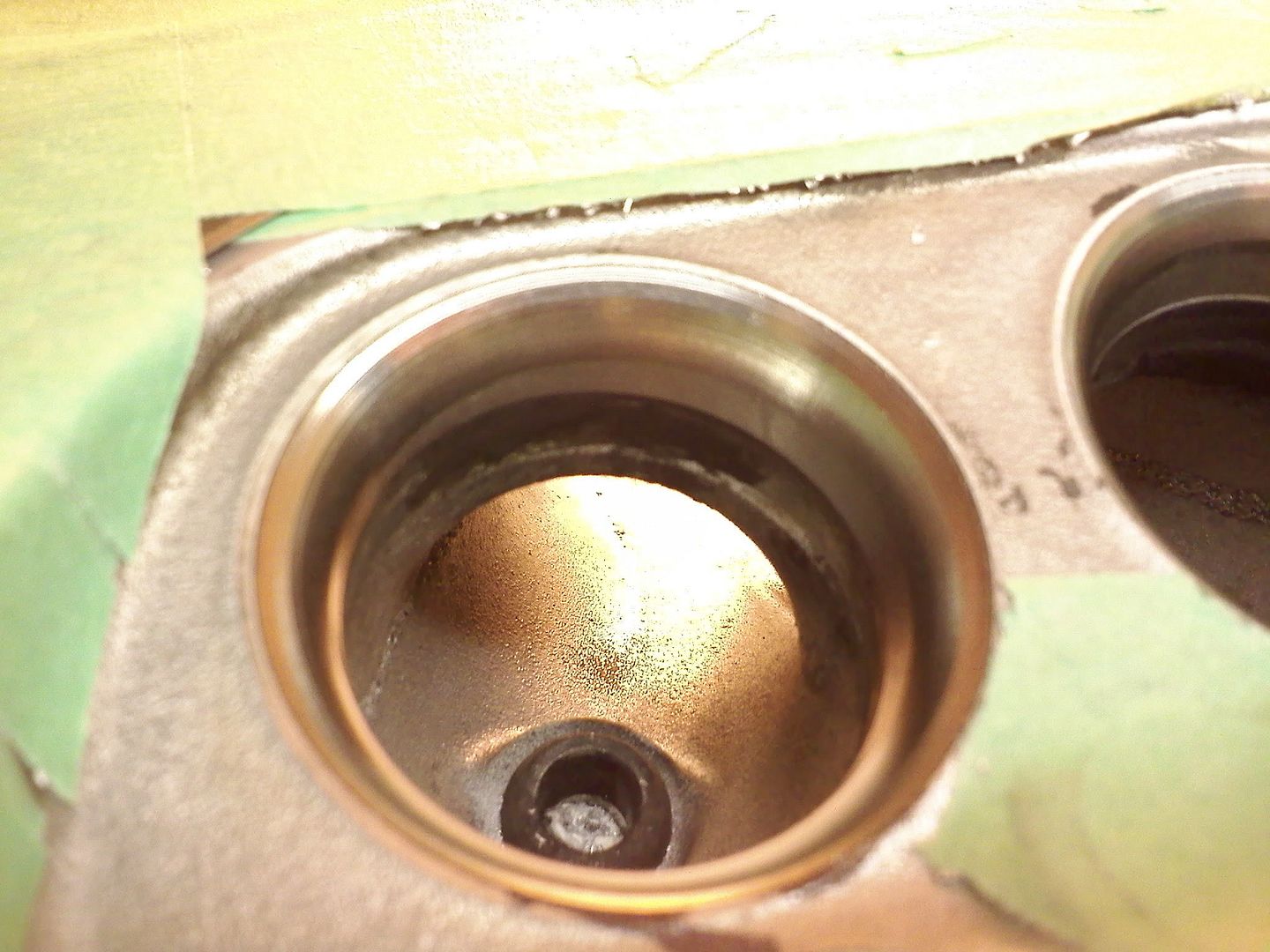

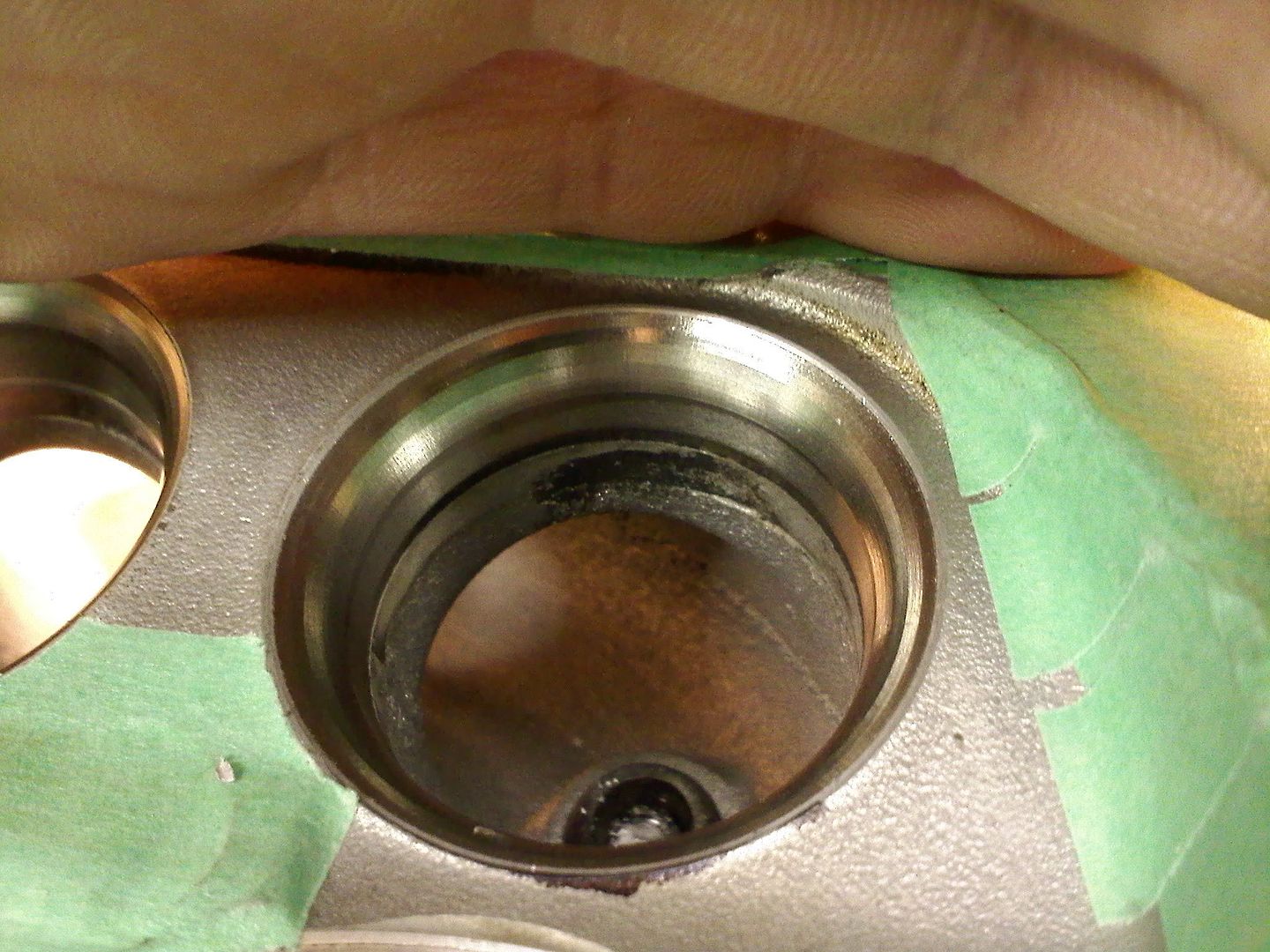

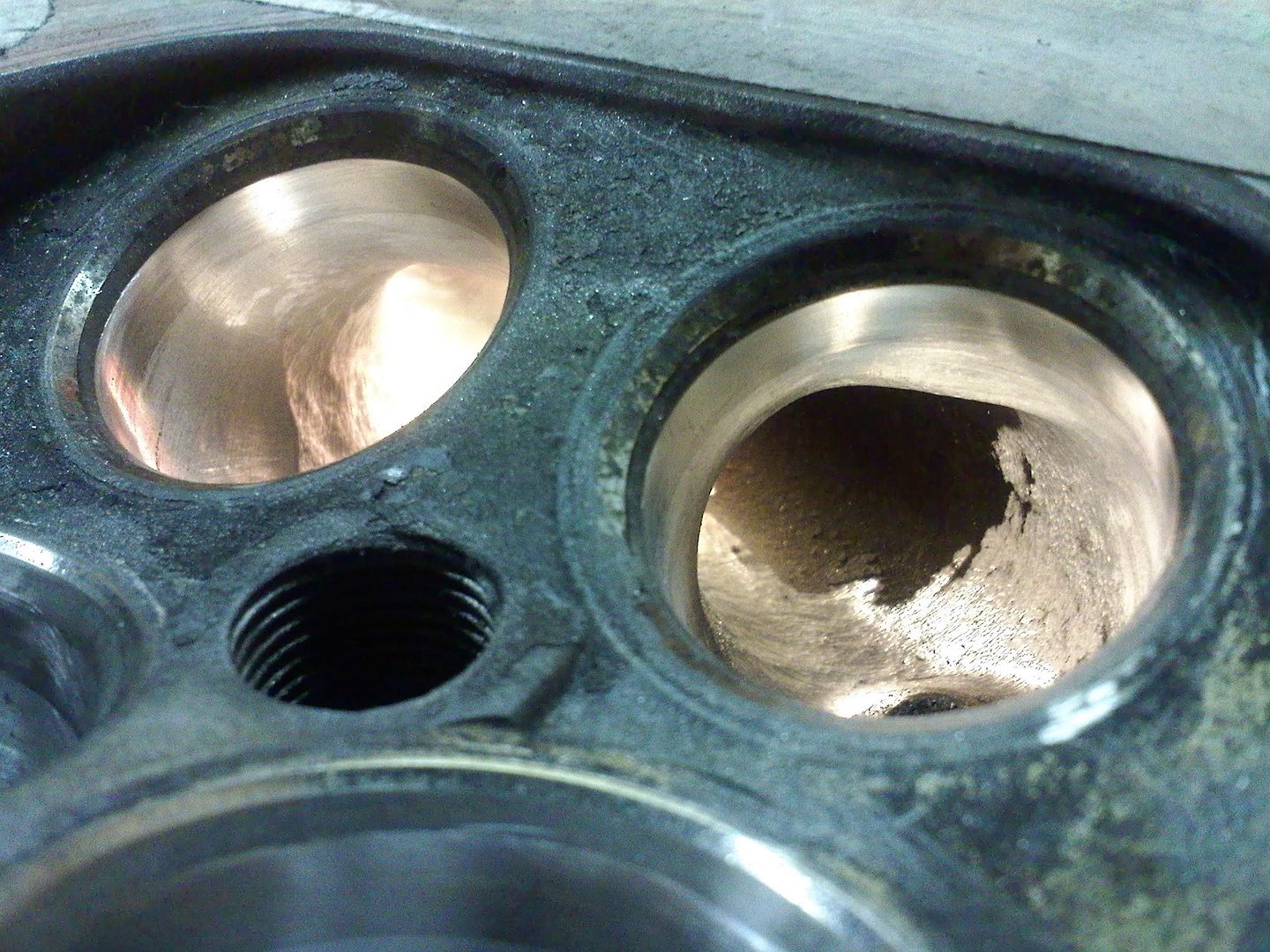

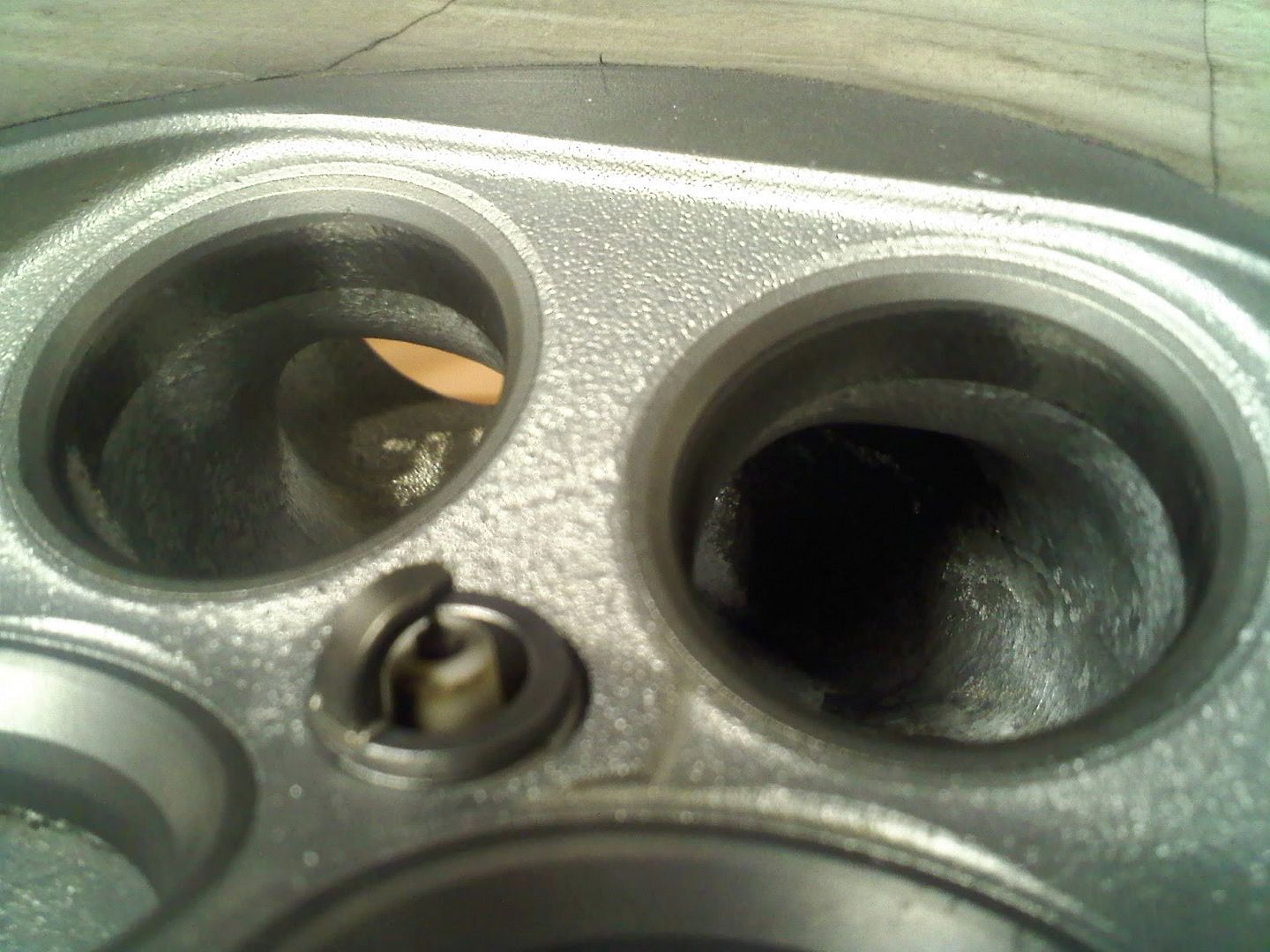

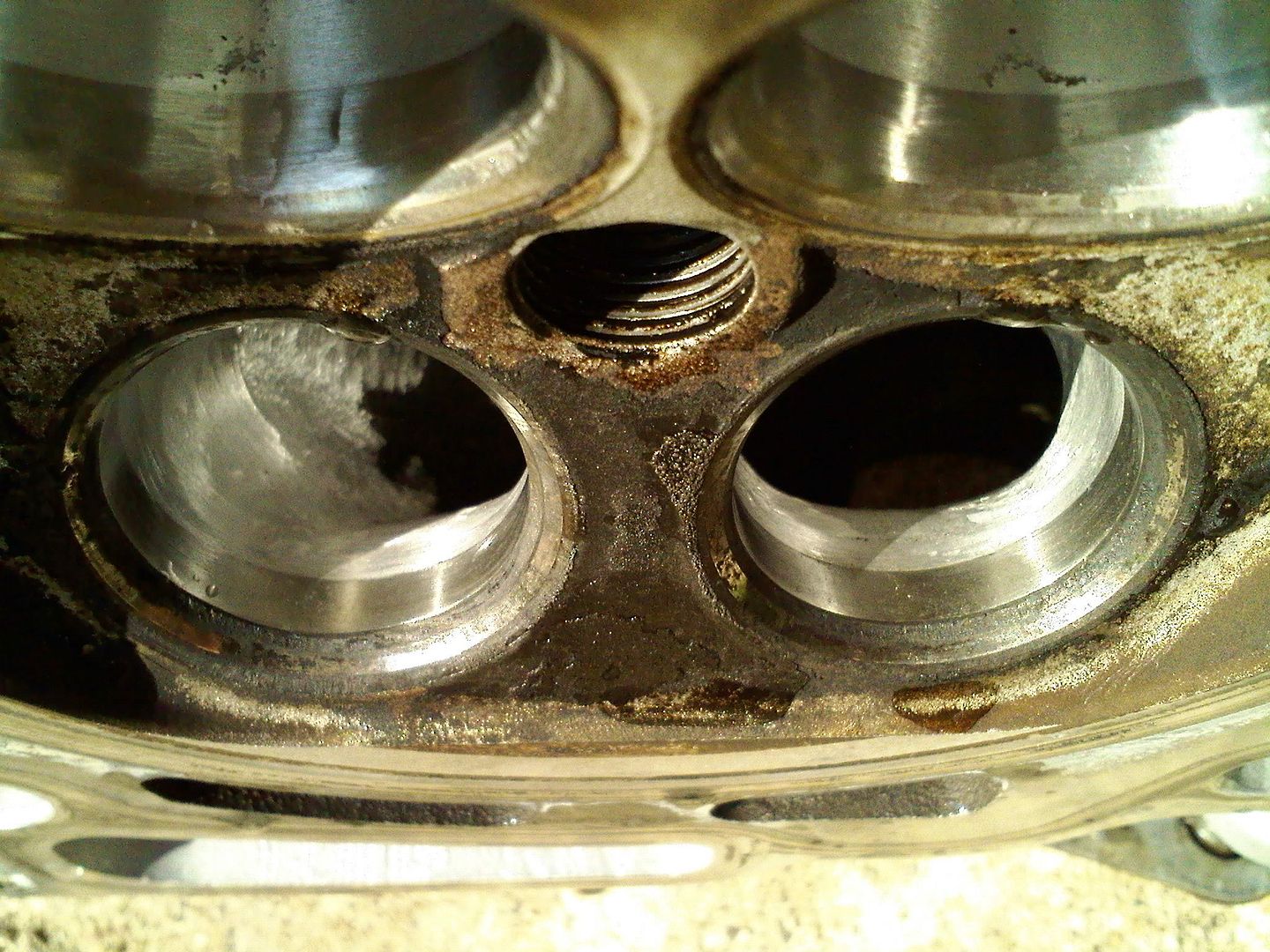

    yes it was fun while the heads were here. I'll make a new slot machine with my '06 WRX heads. The owner picked up his heads. He got to see the diff between stock and his.

    [​IMG][​IMG][​IMG]
    [​IMG][​IMG]

    FuJi K, Jun 4, 2009
    #47
  3. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    ^ Are those done?

    I ask because those sharp transitions will cause areas of turbulence.

    piddster, Jun 4, 2009
    #48
  4. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248
    yes, they are done. Lets see if it'll idle.

    FuJi K, Jun 4, 2009
    #49
  5. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

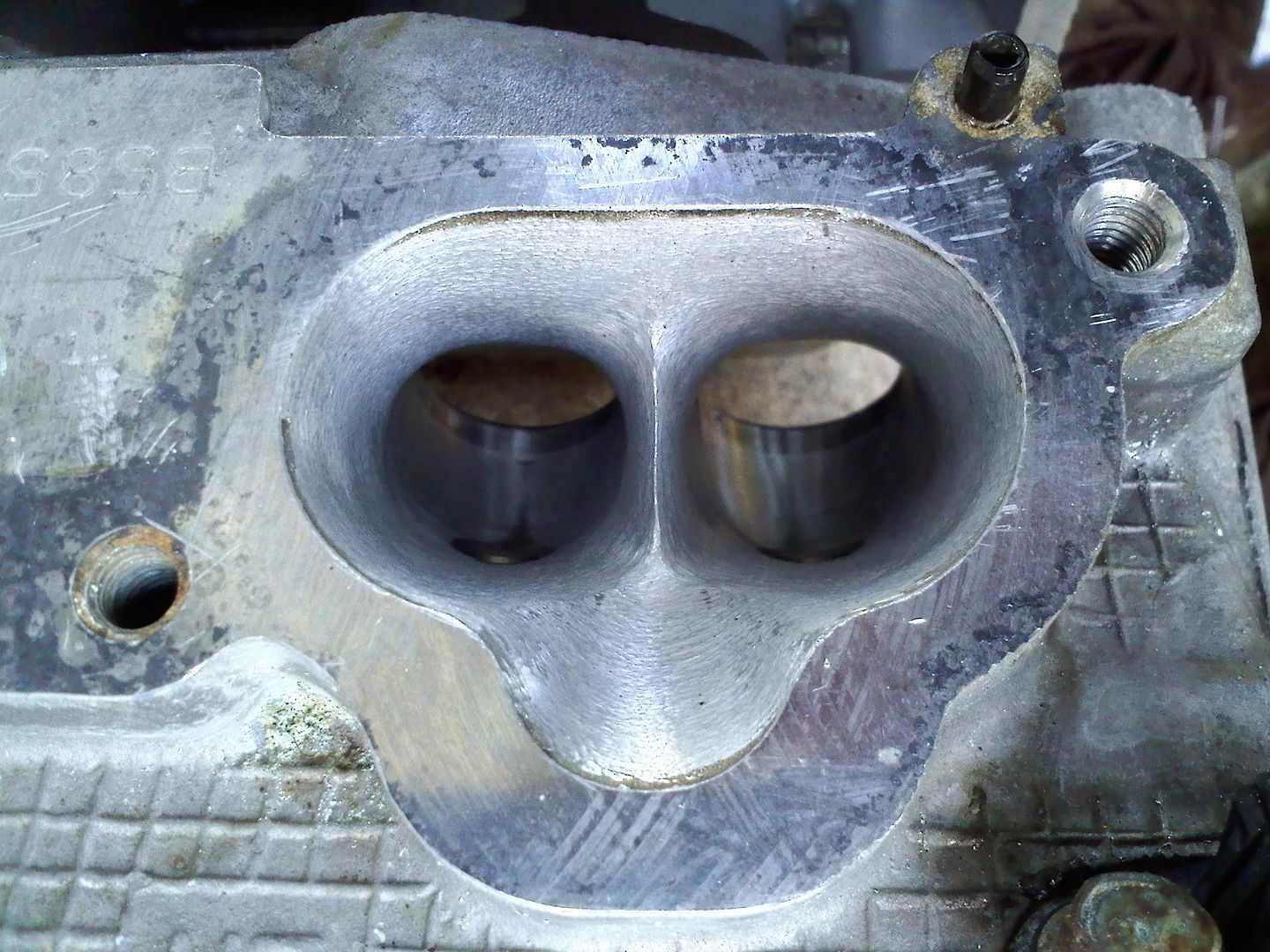

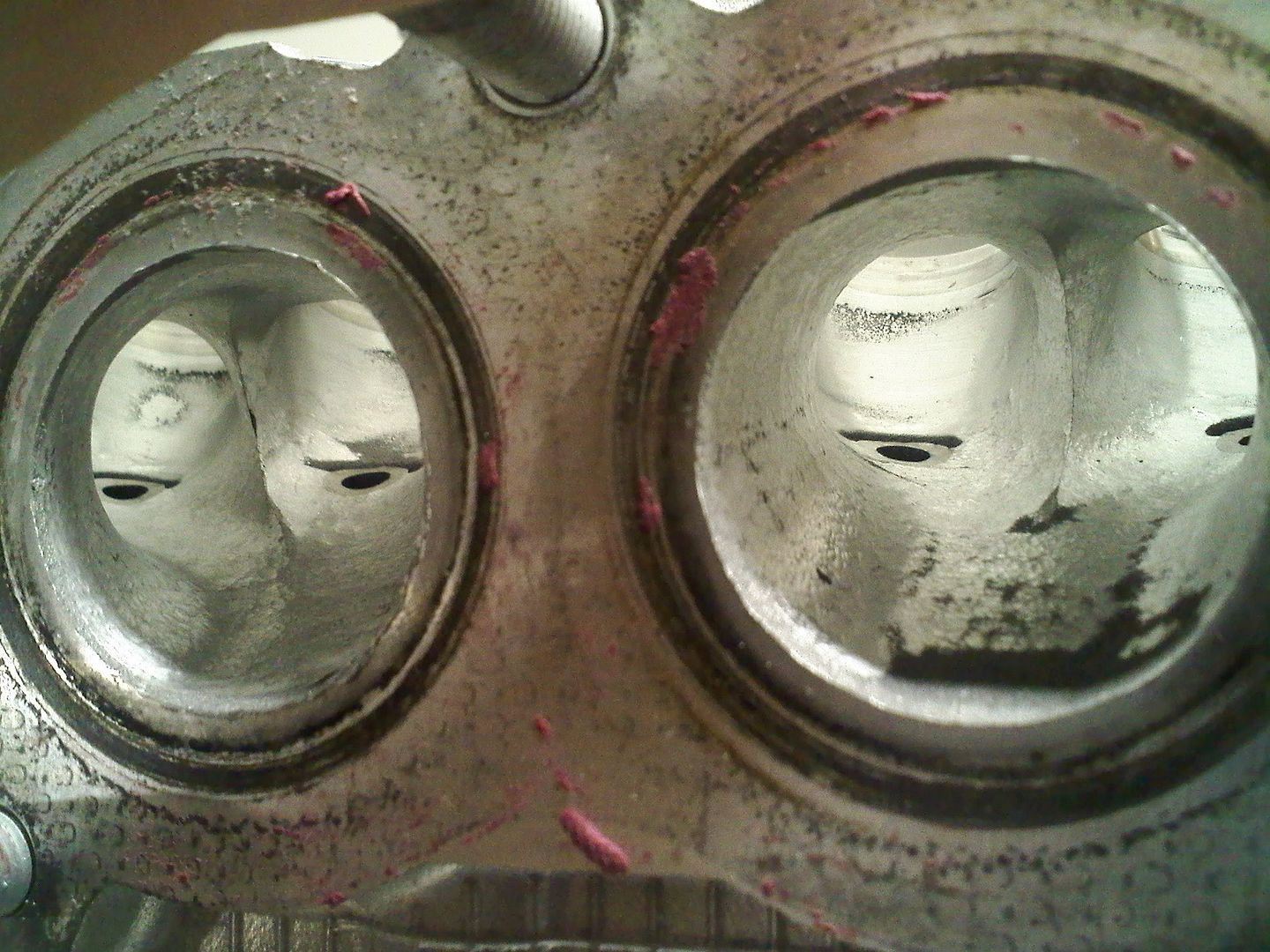

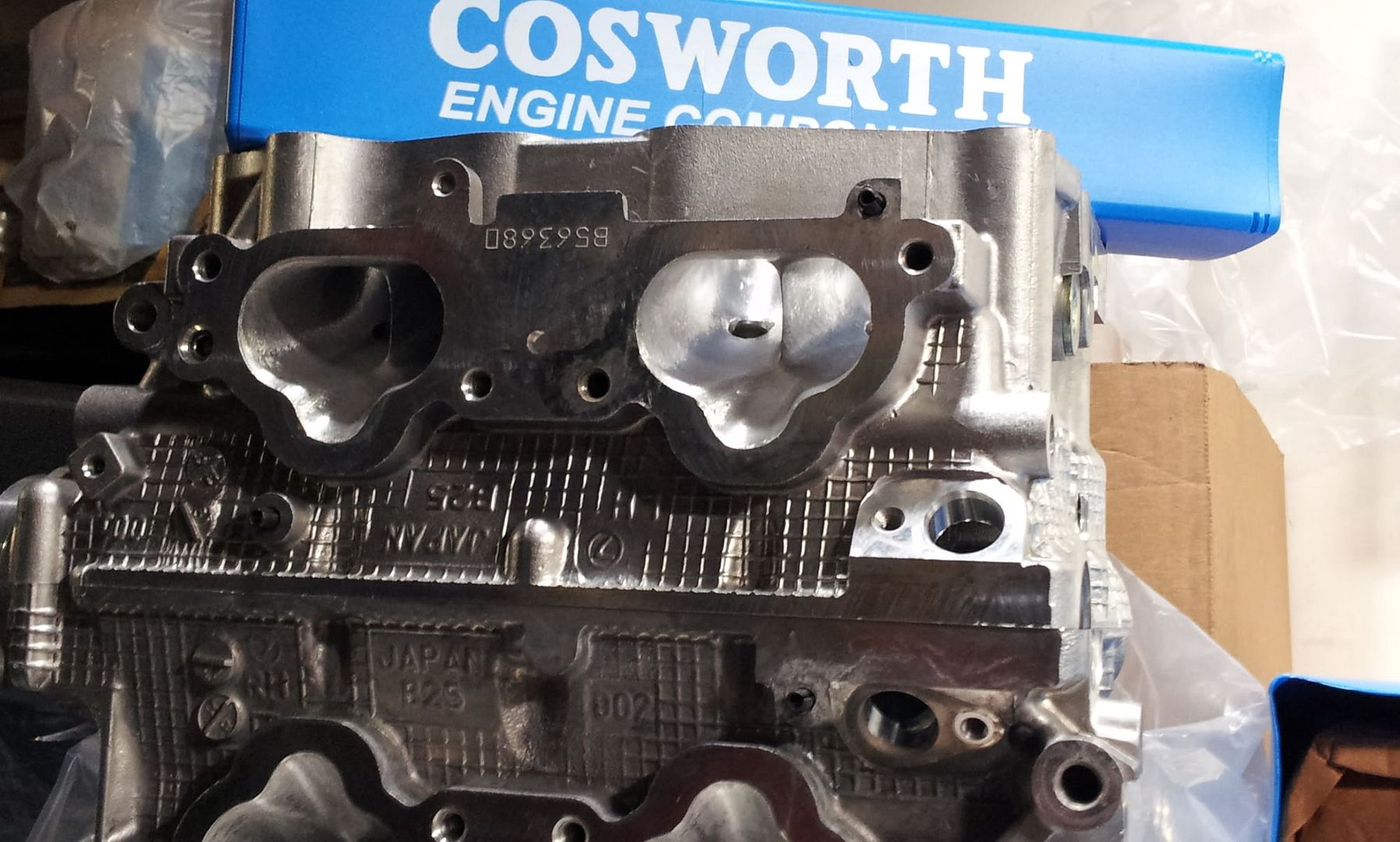

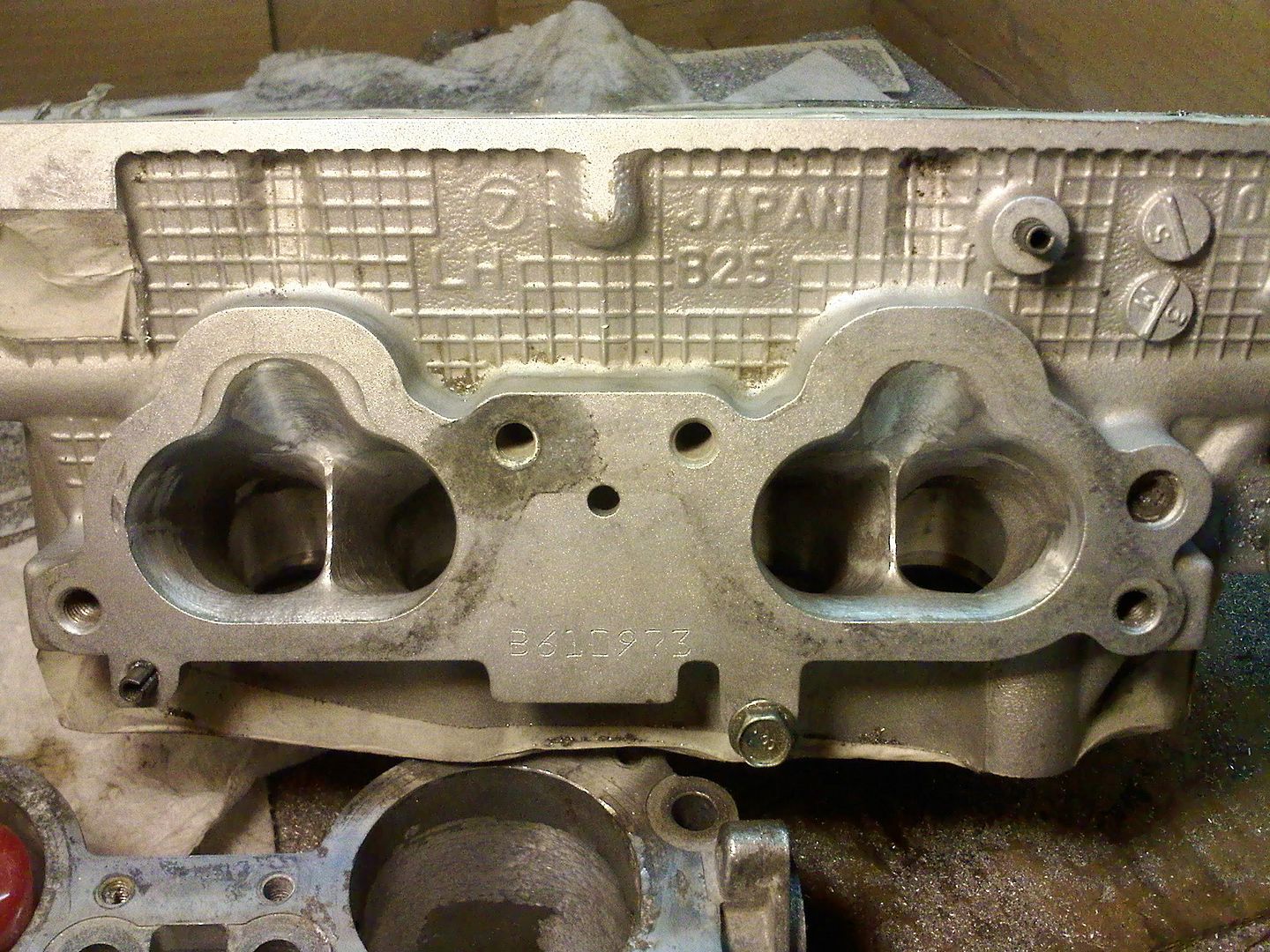

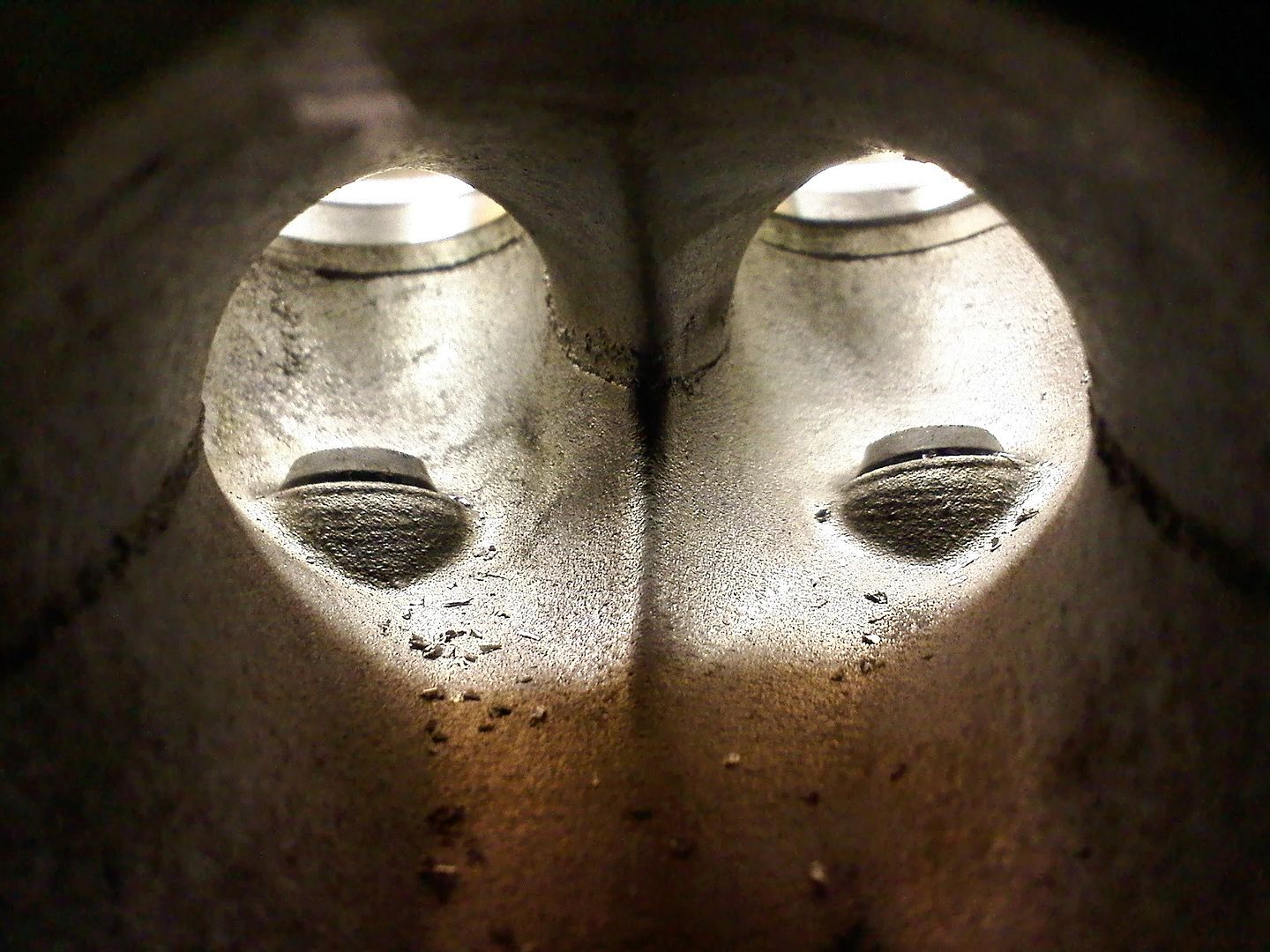

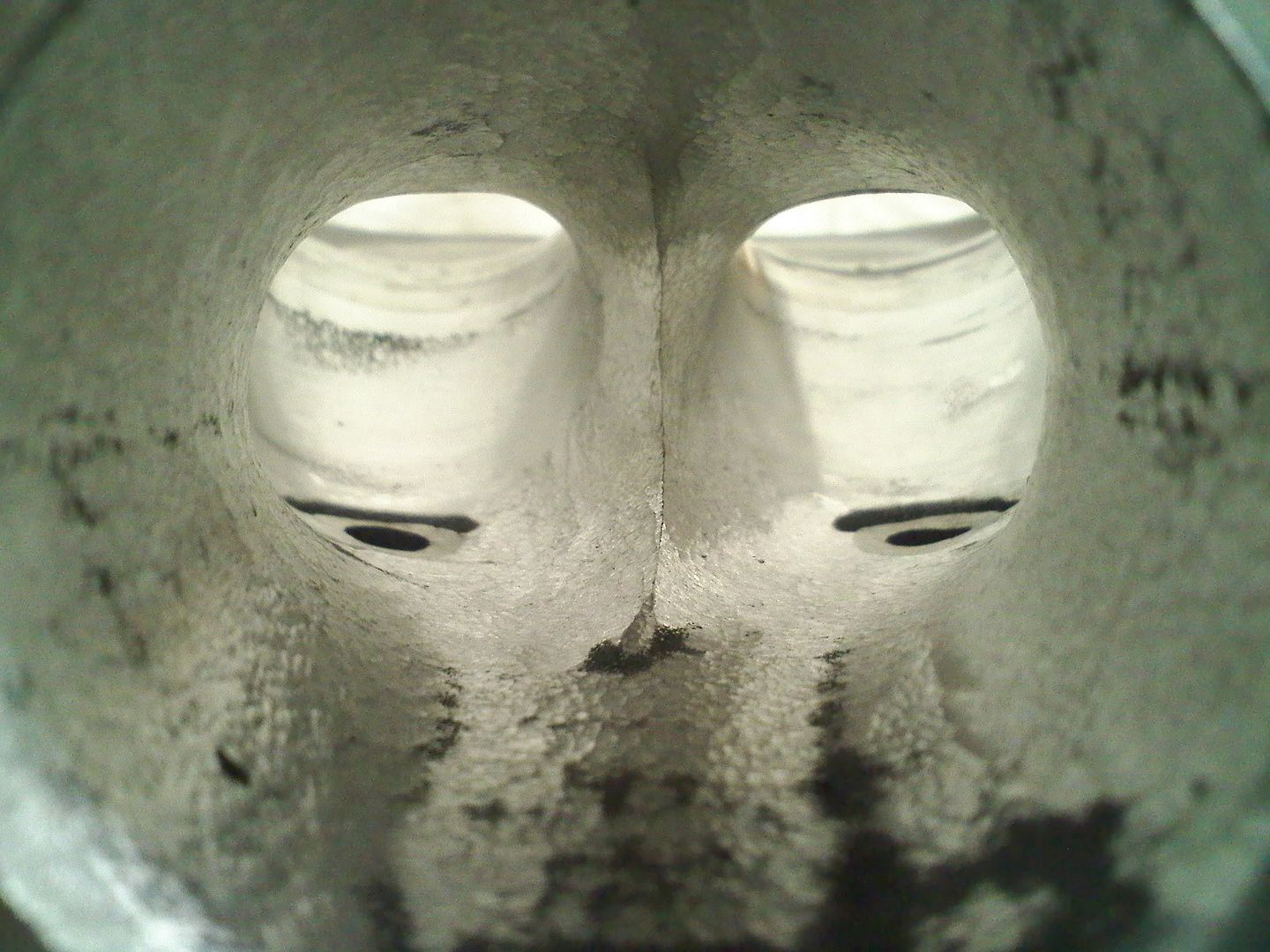

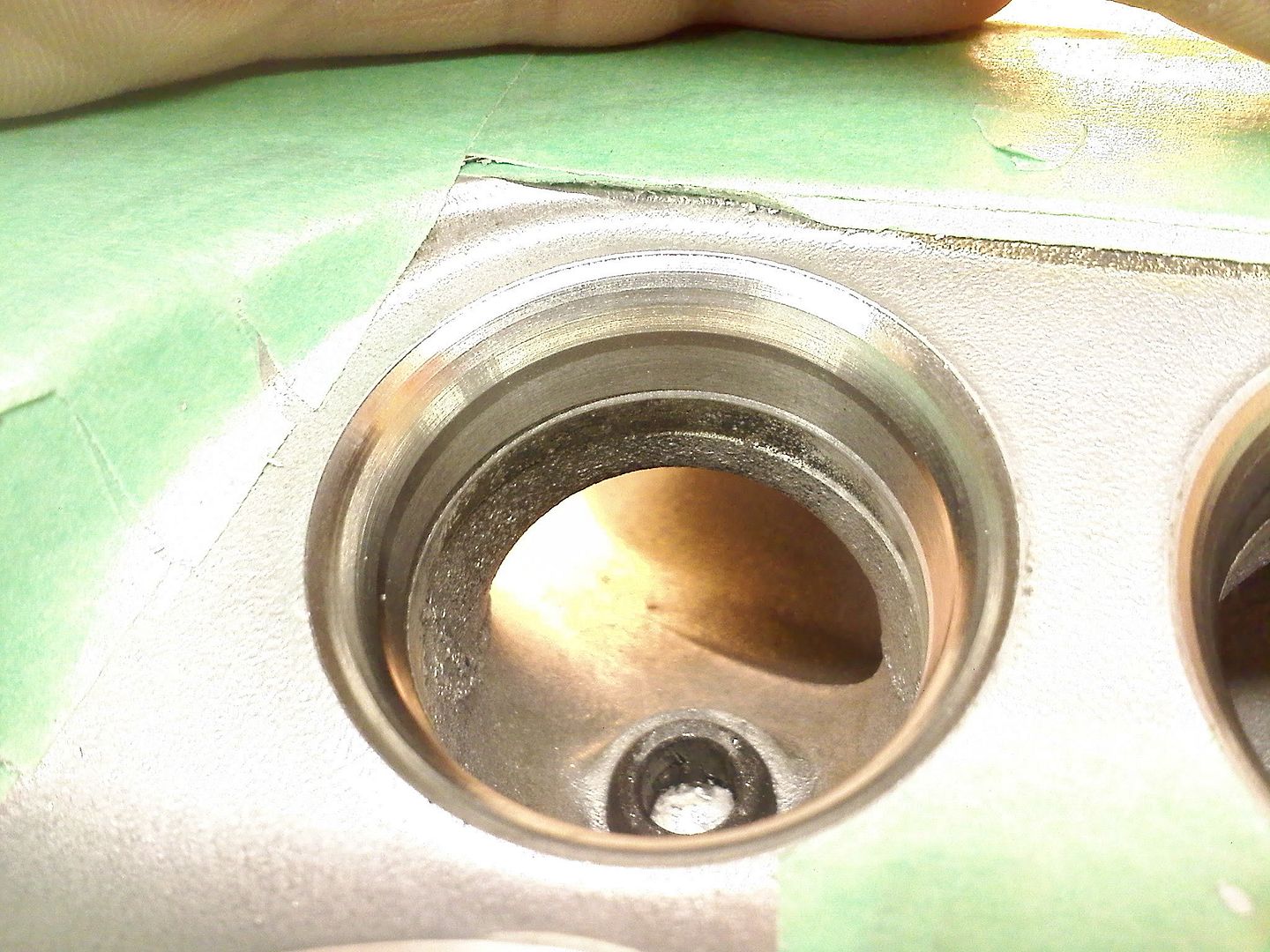

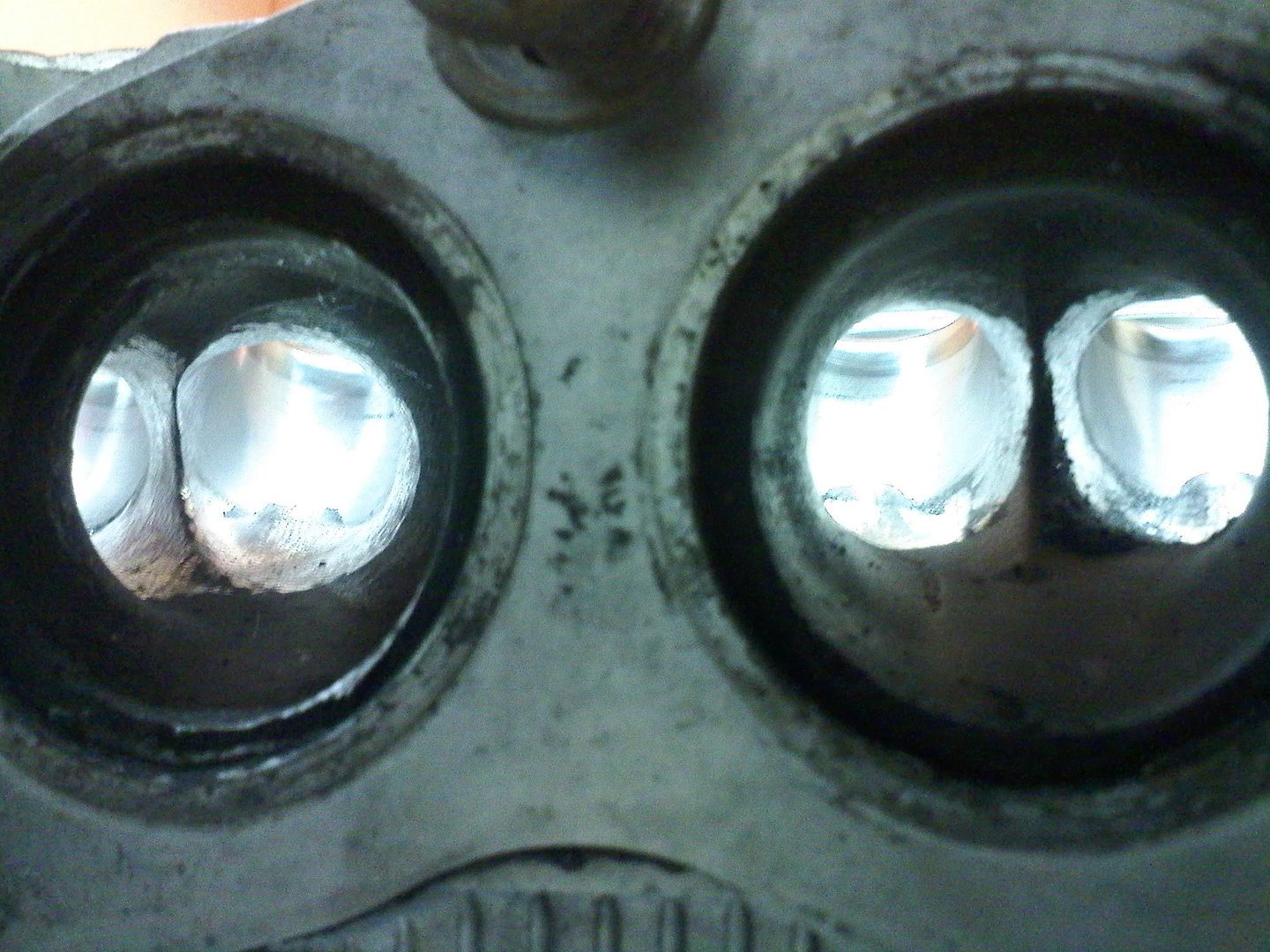

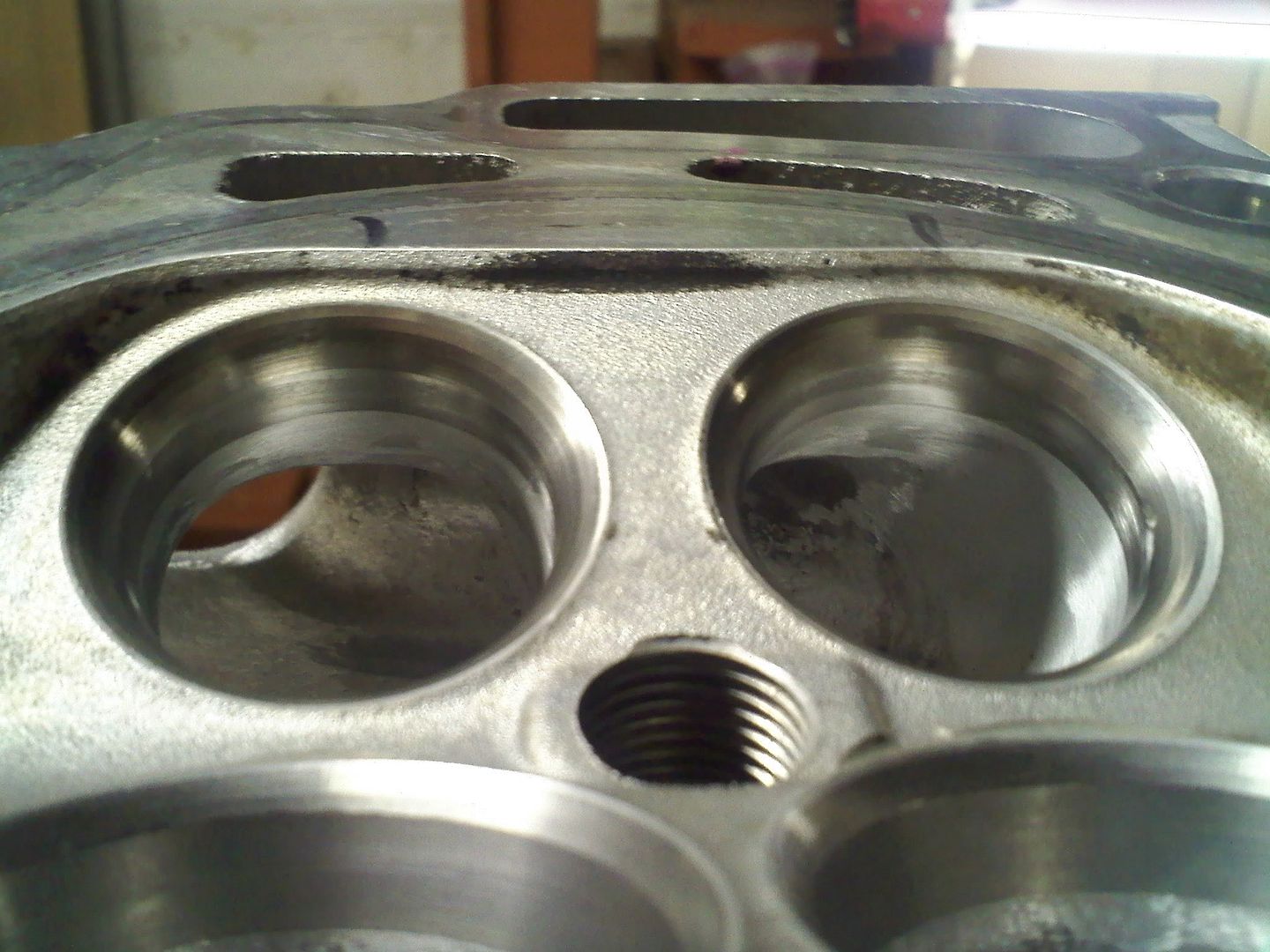

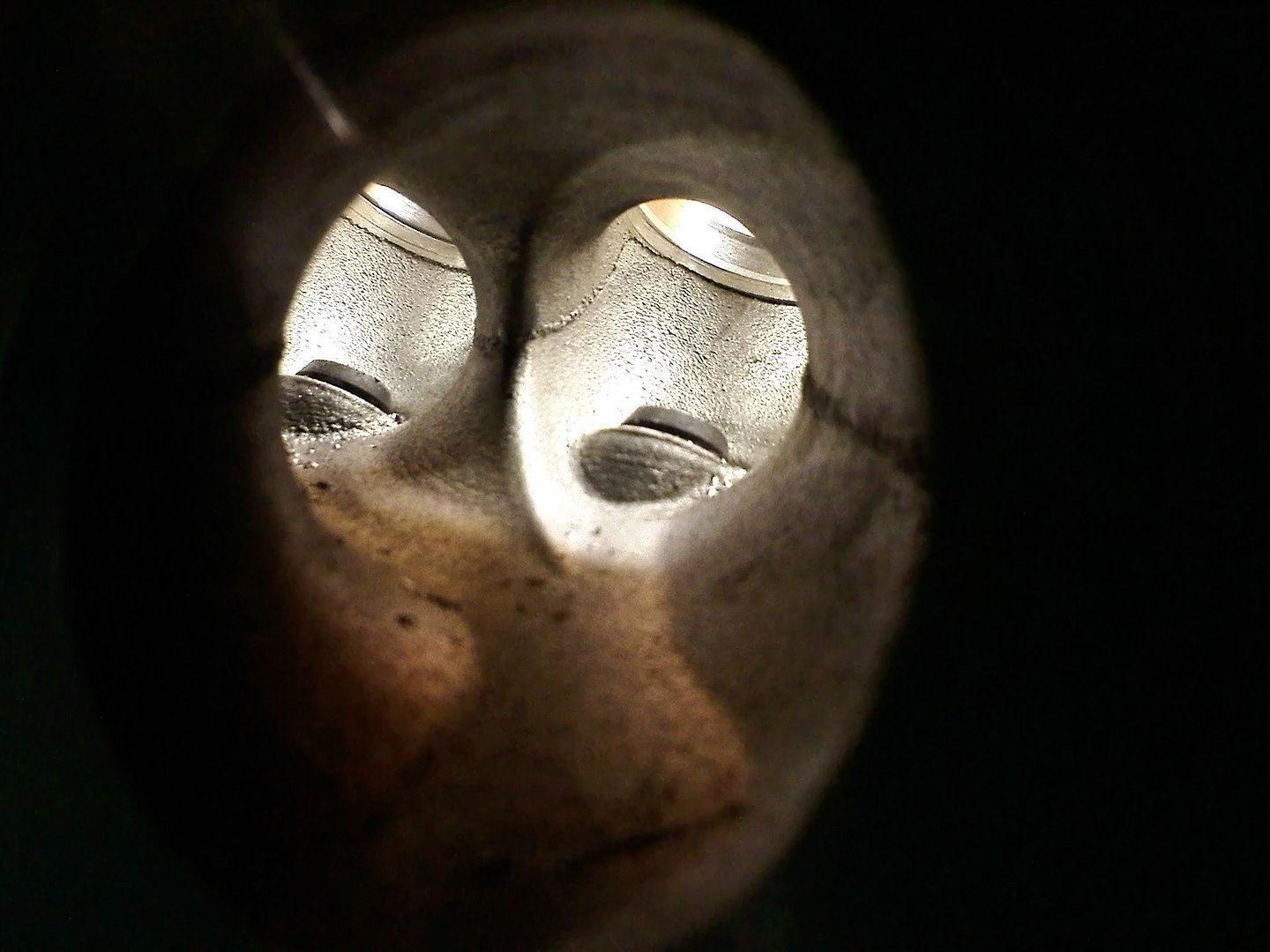

    Baby D's. '05 STi heads
    [​IMG][​IMG]
    [​IMG][​IMG]
    [​IMG][​IMG]

    FuJi K, Aug 26, 2009
    #50
  6. Musashi
    Offline

    Musashi Well-Known Member

    Likes Received:
    583
    Trophy Points:
    348
    Who's car are these off of?

    Musashi, Aug 28, 2009
    #51
  7. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    Be, Silver STi :biggrin:

    Nuke, Aug 28, 2009
    #52
  8. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248
    all done!!! takes so much time... *sigh*
    [​IMG][​IMG]
    [​IMG][​IMG]

    FuJi K, Sep 2, 2009
    #53
  9. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    * > jdm

    Nuke, Sep 2, 2009
    #54
  10. Musashi
    Offline

    Musashi Well-Known Member

    Likes Received:
    583
    Trophy Points:
    348
    It's amazing the things you see up close. LOL Looks great!

    Musashi, Sep 3, 2009
    #55
  11. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

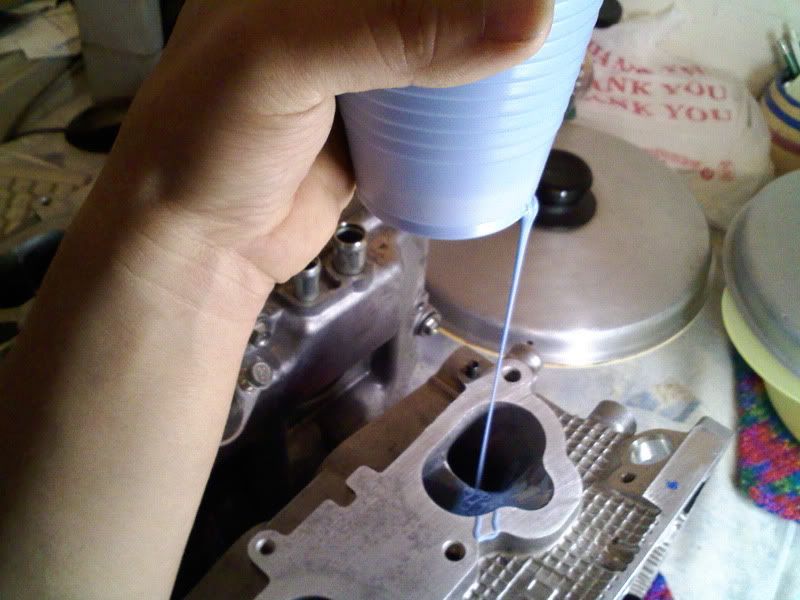

    assembled the valves today... made a custom spring compressor to work with my press.
    [​IMG][​IMG][​IMG]

    [YouTube]msLW2AcYy4U[/youtube]

    FuJi K, Sep 7, 2009
    #56
    vangstaboi86 likes this.
  12. i_subie
    Offline

    i_subie Well-Known Member

    Likes Received:
    0
    Trophy Points:
    101
    yah, a tool where only your little hands can get into.

    i_subie, Sep 8, 2009
    #57
  13. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248
    stock flow numbers in first post

    FuJi K, Dec 10, 2009
    #58
  14. ENTICED
    Offline

    ENTICED New Member

    Likes Received:
    0
    Trophy Points:
    0
    Okay, so I don't have double ds:) LOL

    ENTICED, Dec 10, 2009
    #59
  15. ENTICED
    Offline

    ENTICED New Member

    Likes Received:
    0
    Trophy Points:
    0

    LOL, fuji, you're too innocent, never thought i'd see a picture like this
    around ya. Haha

    ENTICED, Dec 10, 2009
    #60
  16. AWDimprezaL
    Offline

    AWDimprezaL has more posts than you

    Likes Received:
    1,818
    Trophy Points:
    573
    LMAO nice work fujiface

    AWDimprezaL, Dec 10, 2009
    #61
  17. ENTICED
    Offline

    ENTICED New Member

    Likes Received:
    0
    Trophy Points:
    0
    Fuji, my blogging is on the 3rd topic.

    ENTICED, Dec 10, 2009
    #62
  18. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248
    hahaha I didn't make that one... however I saved it!



    Line graphs in the first post!!!

    FuJi K, Dec 10, 2009
    #63
  19. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

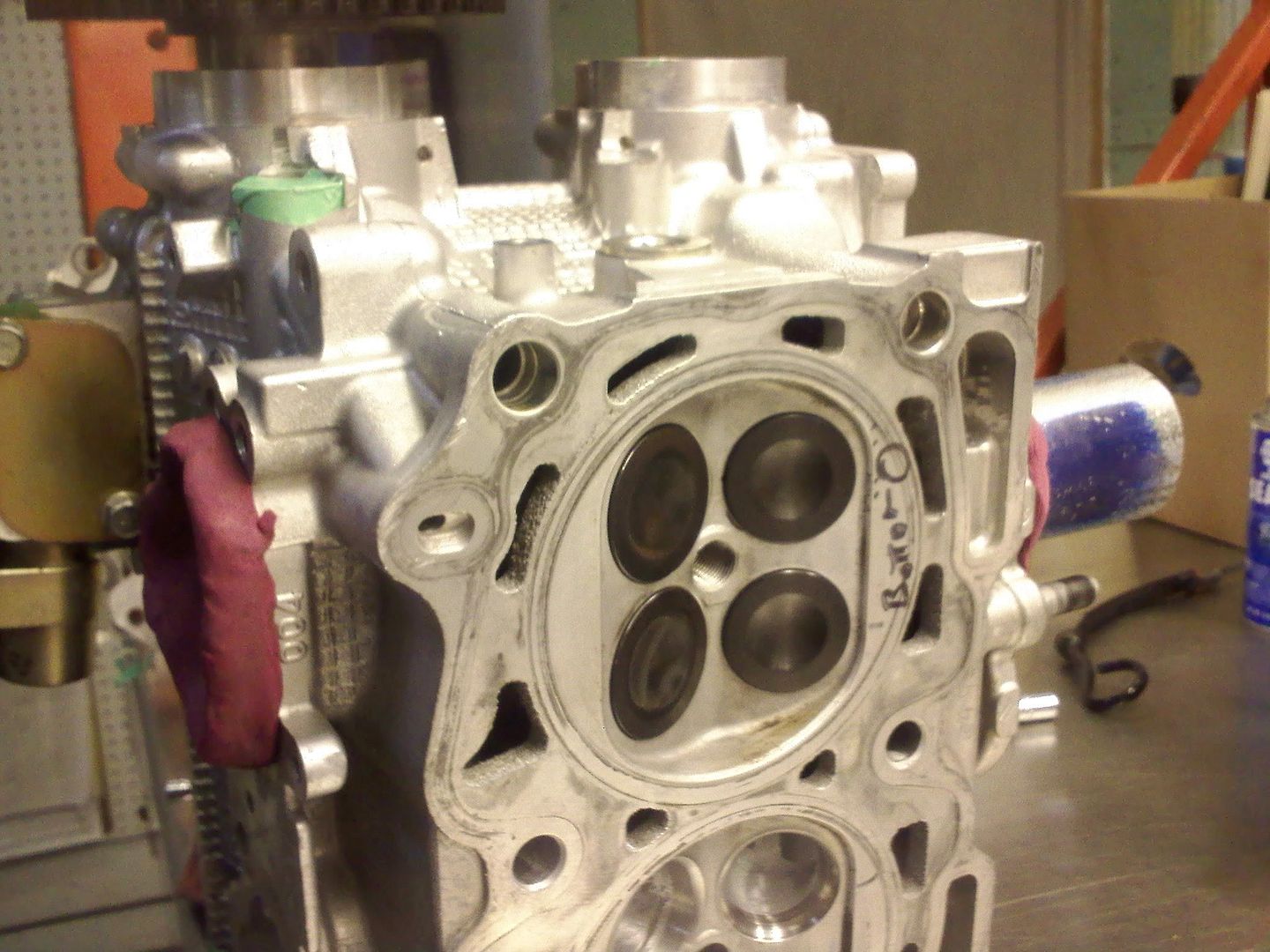

    Here's a new shot. This is EXACTLY how they looks like at the moment.
    [​IMG]


    [​IMG][​IMG][​IMG]
    [​IMG][​IMG][​IMG]
    [​IMG][​IMG][​IMG]
    [​IMG]

    FuJi K, Dec 22, 2009
    #64
  20. tjamz
    Offline

    tjamz Well-Known Member

    Likes Received:
    0
    Trophy Points:
    101
    Great....ready to tackle mine yet?

    tjamz, Dec 22, 2009
    #65
  21. vangstaboi86
    Offline

    vangstaboi86 Well-Known Member

    Likes Received:
    24
    Trophy Points:
    223
    you can just buy mine. ;)

    vangstaboi86, Feb 4, 2010
    #66
  22. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

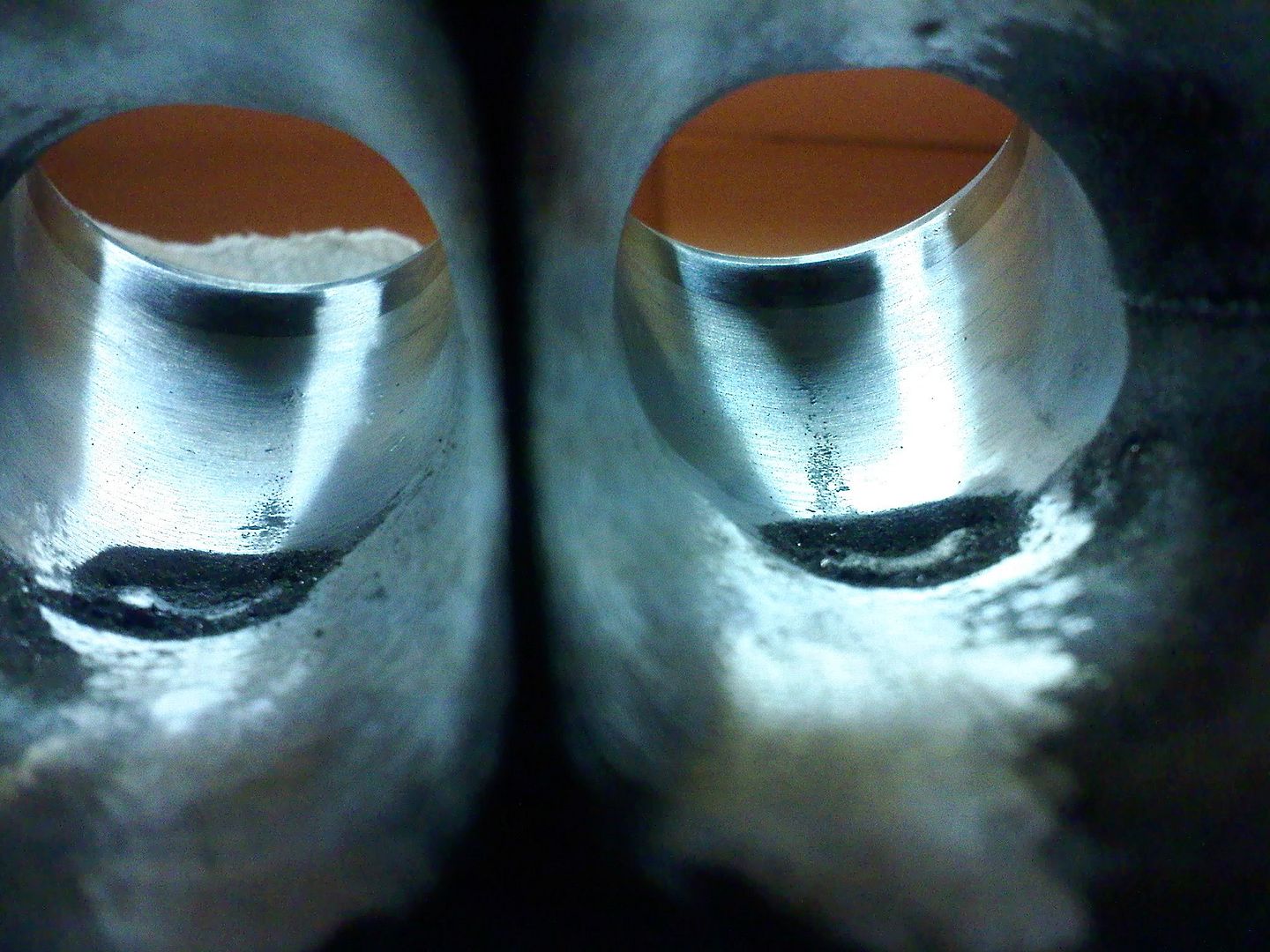

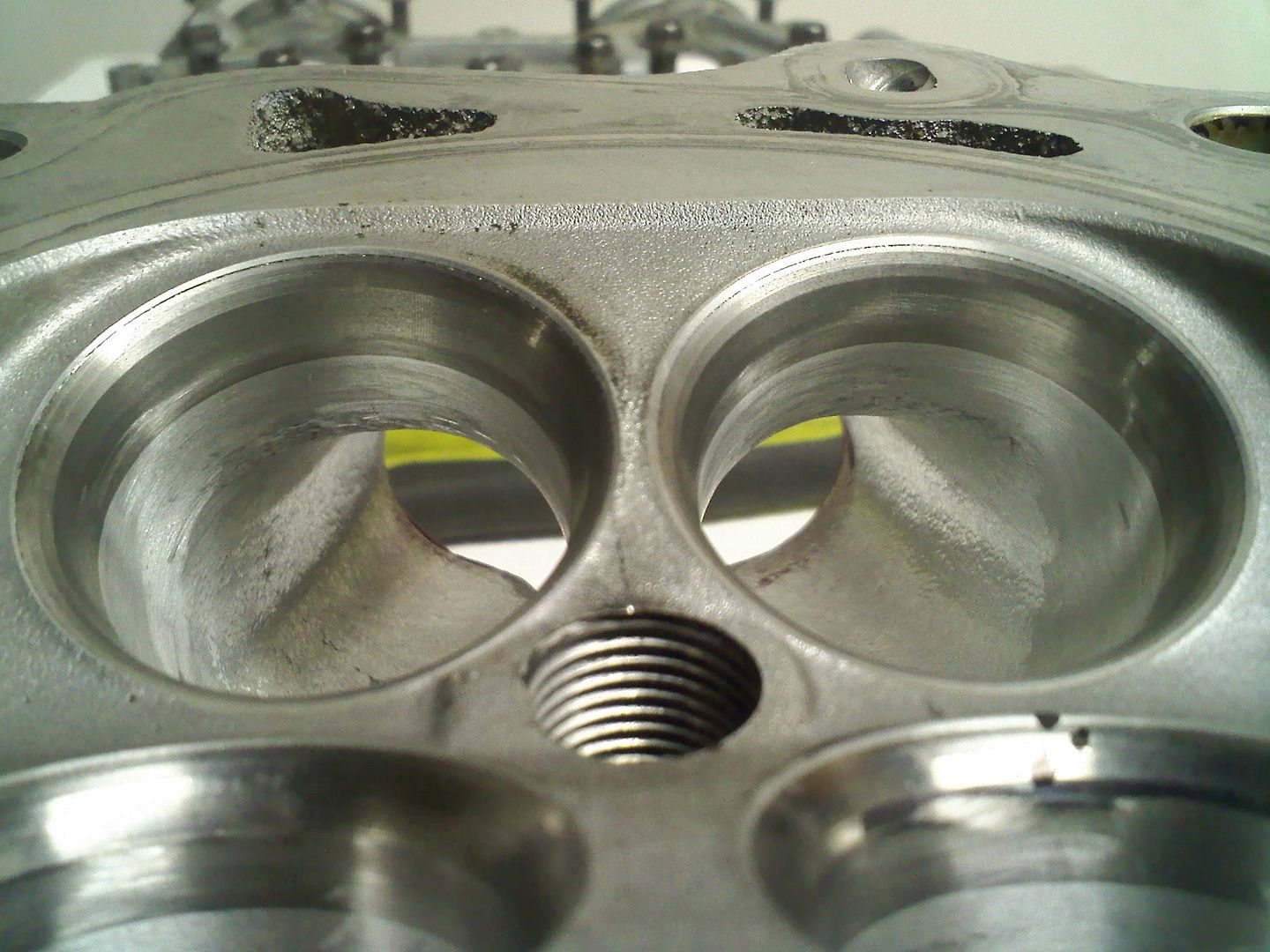

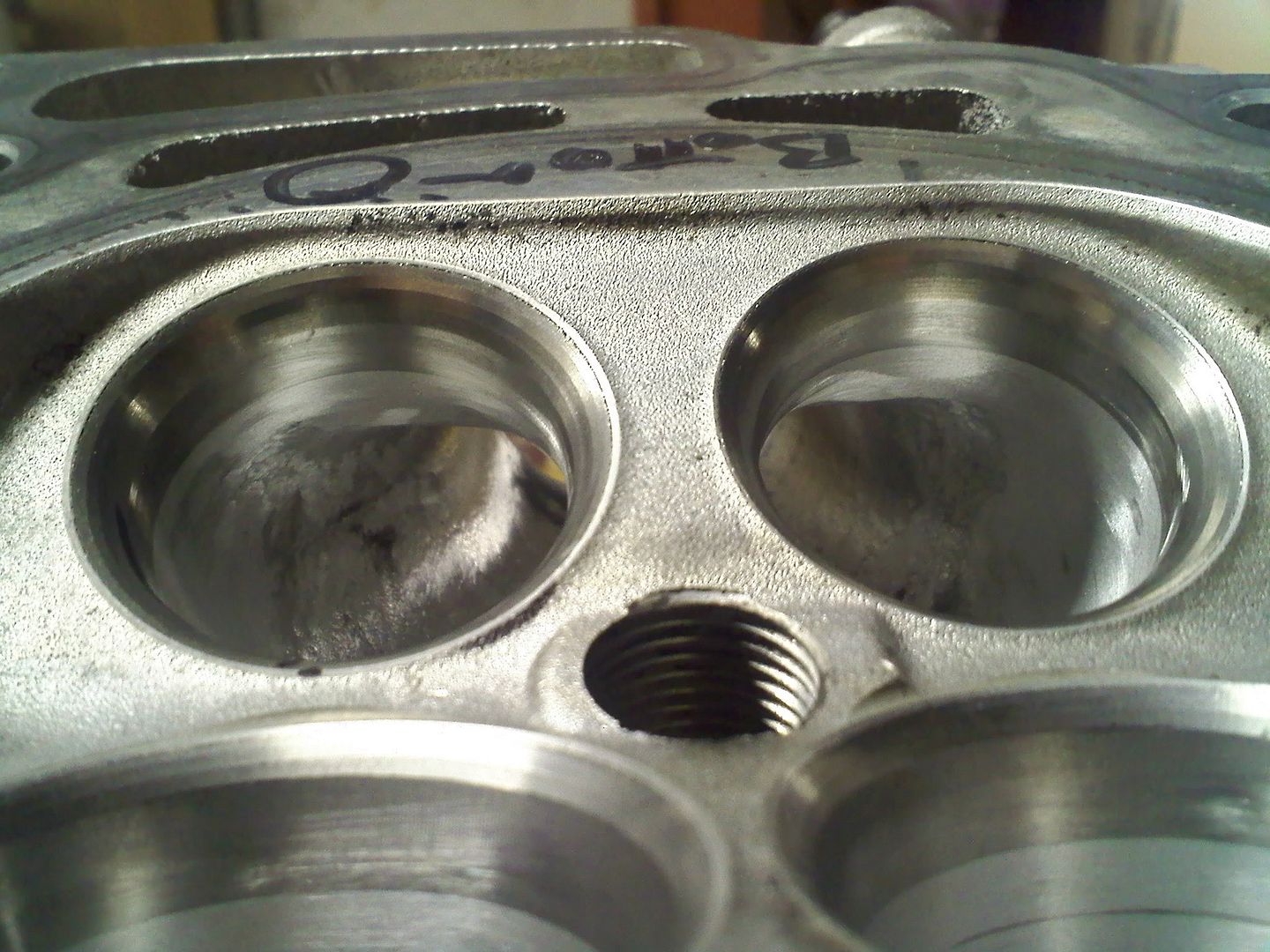

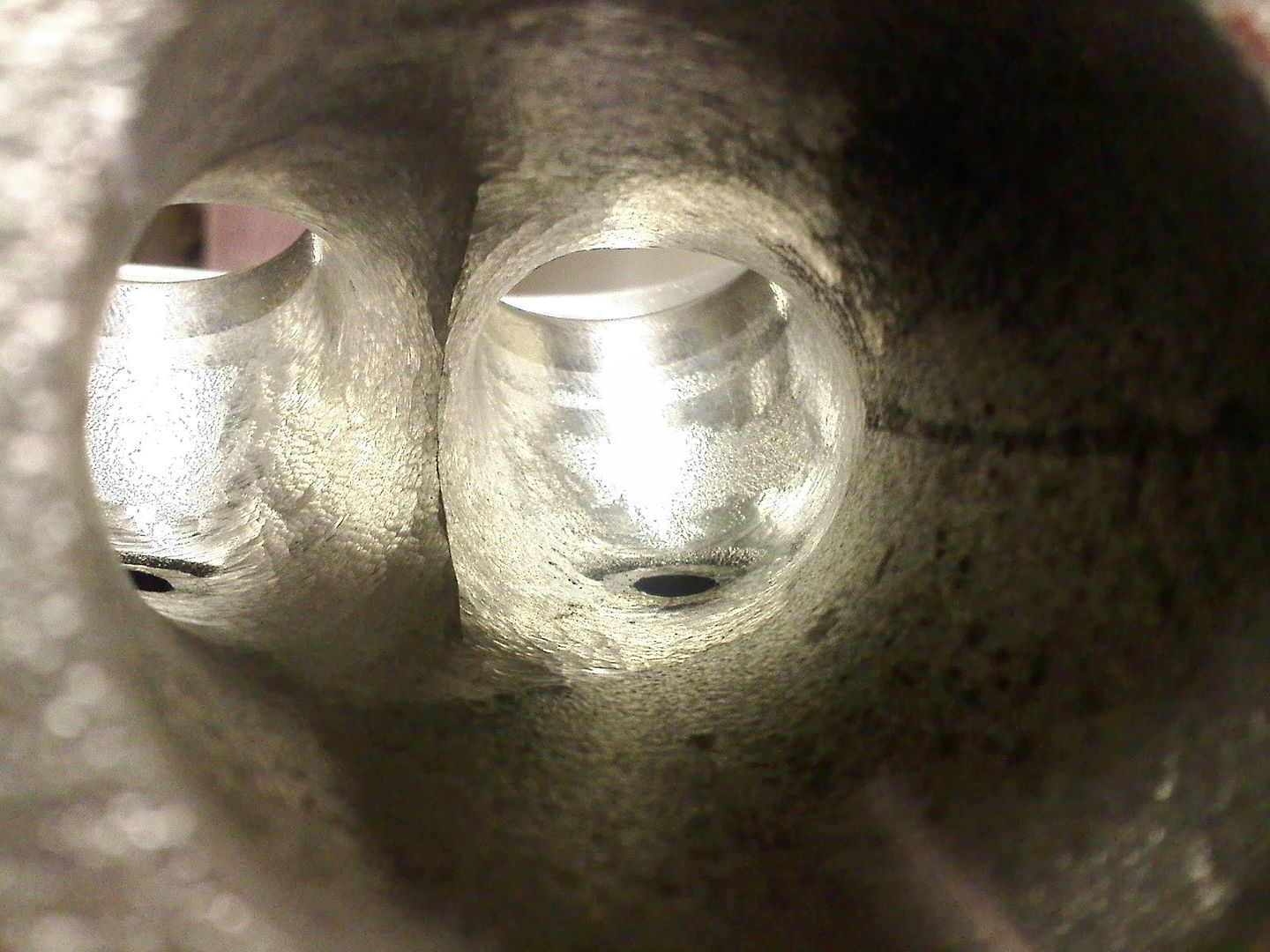

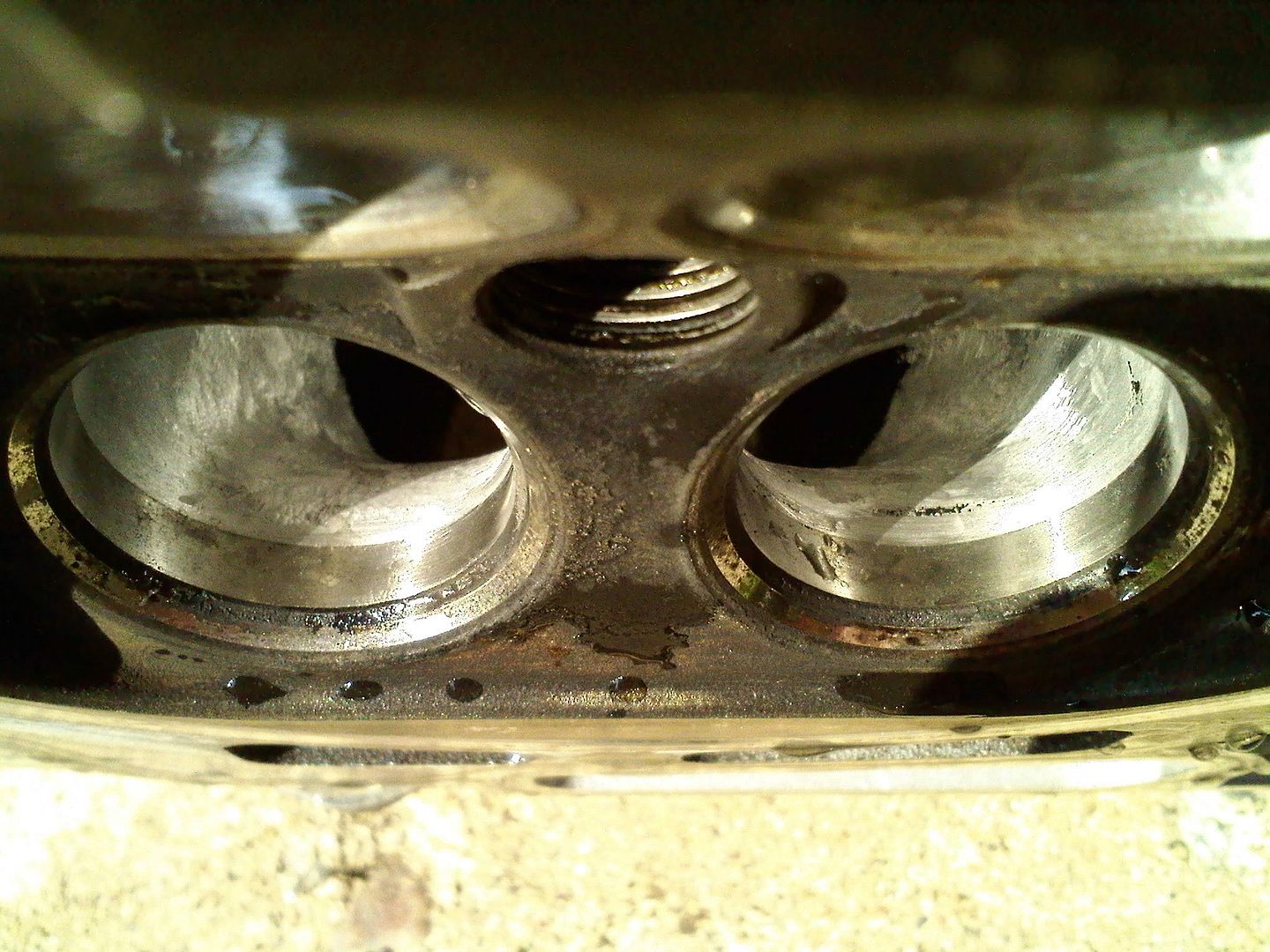

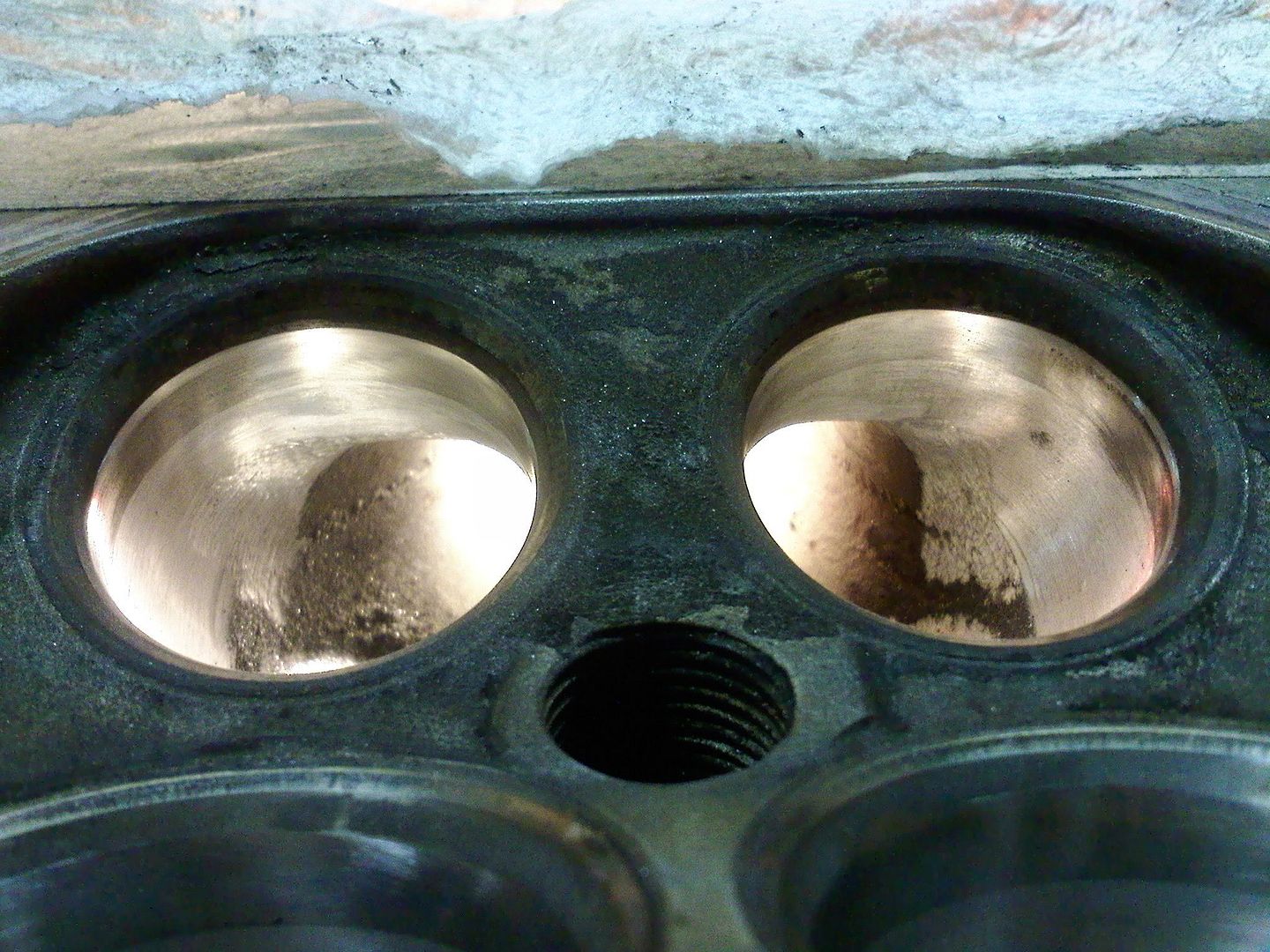

    These are +1mm valves with the Double-D treatment. I'm impressed. Makes me jealous!


    Superflow600@28"
    Intake
    .100" .....87cfm
    .200" .....177cfm
    .300" .....262cfm
    .400" .....294cfm

    Exhaust (straight)
    .100" .....88cfm
    .200" .....183cfm
    .300" .....235cfm
    .400" .....247cfm

    Exhaust (dogleg)
    .100" .....88cfm
    .200" .....186cfm
    .300" .....227cfm
    .400" .....235cfm


    [​IMG][​IMG][​IMG][​IMG]
    [​IMG][​IMG][​IMG][​IMG]
    [​IMG]

    FuJi K, May 13, 2010
    #67
  23. dustin8511
    Offline

    dustin8511 Member

    Likes Received:
    3
    Trophy Points:
    28
    impresive, great work!

    dustin8511, May 20, 2010
    #68
  24. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

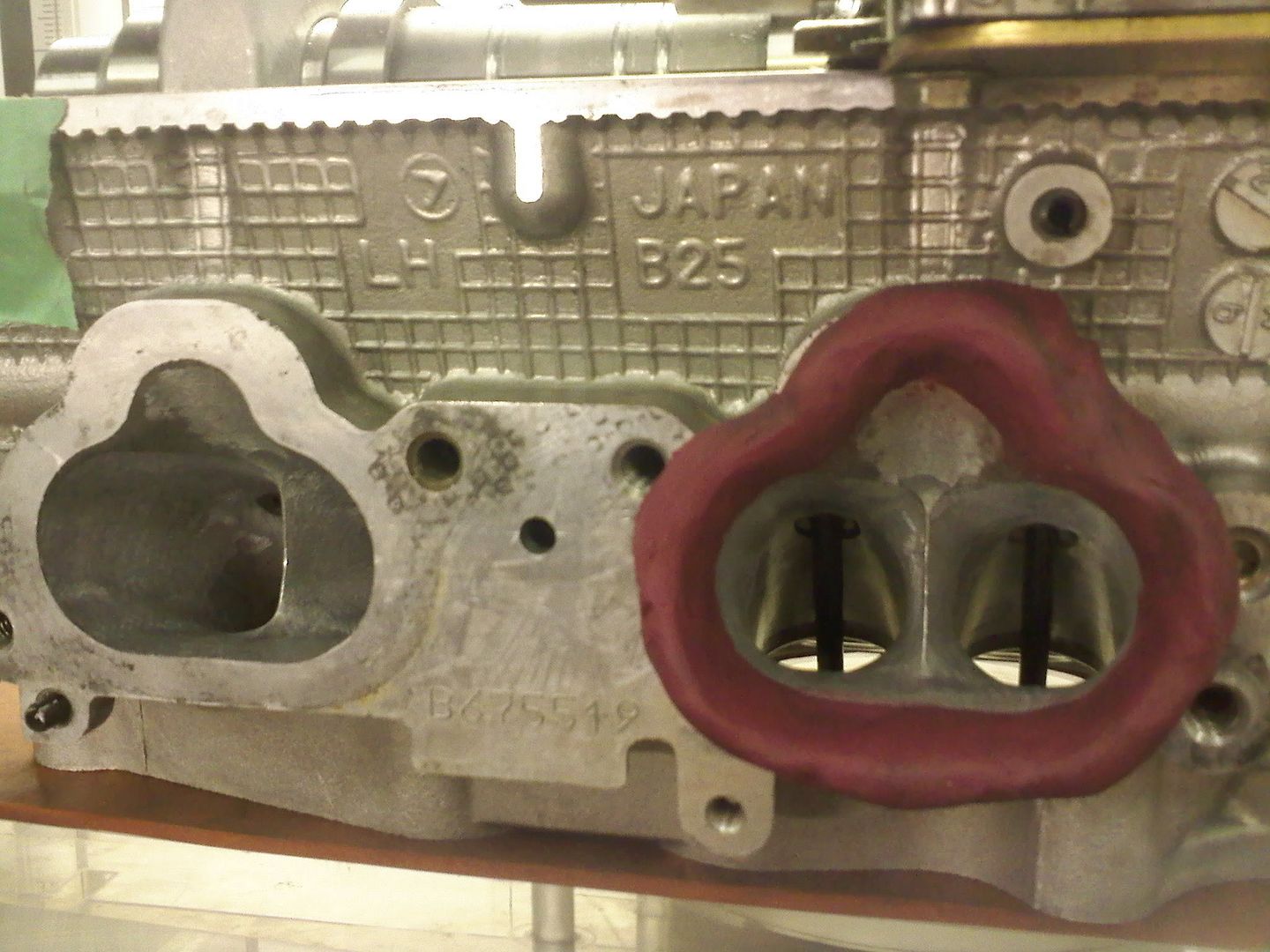

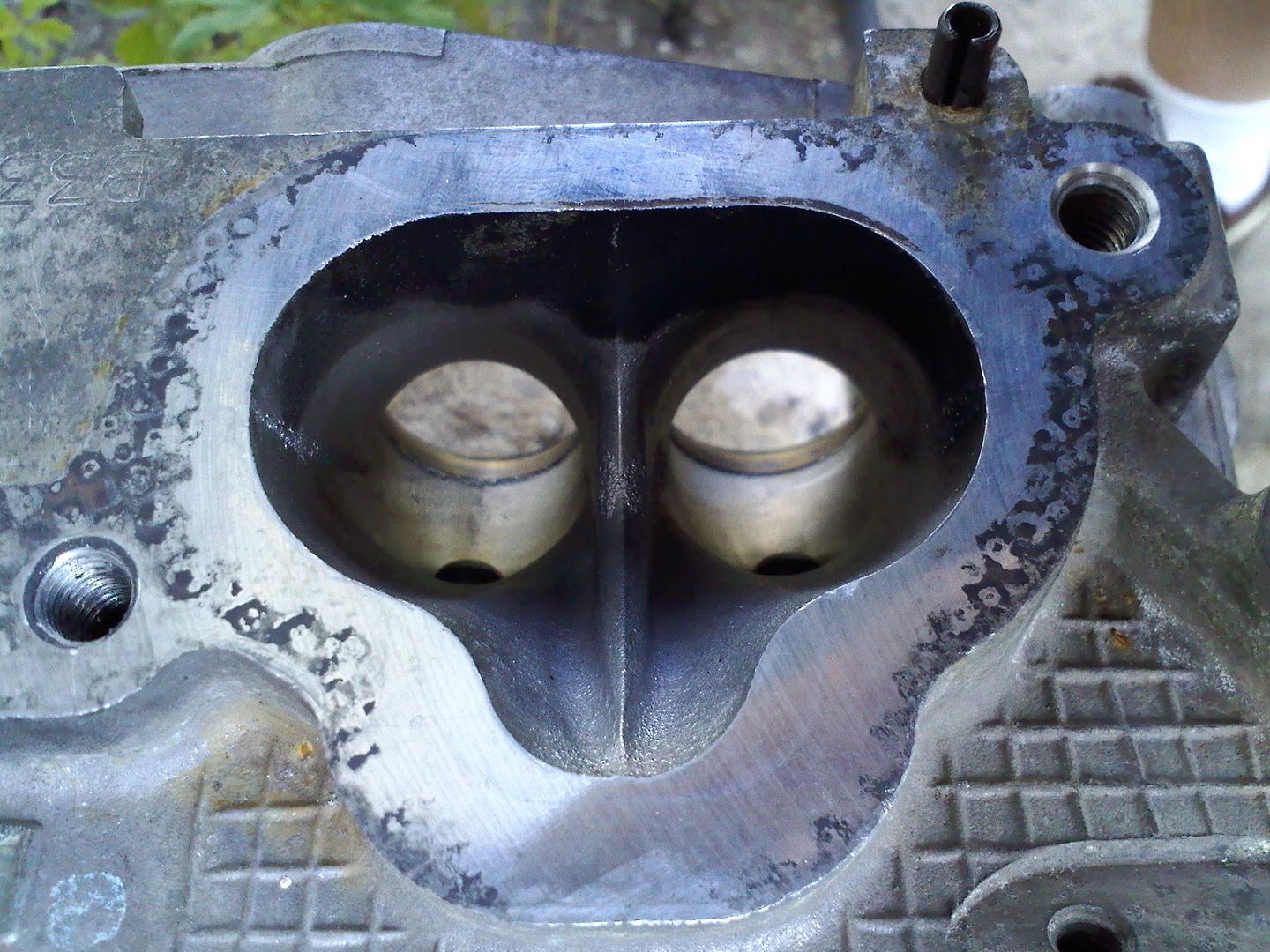

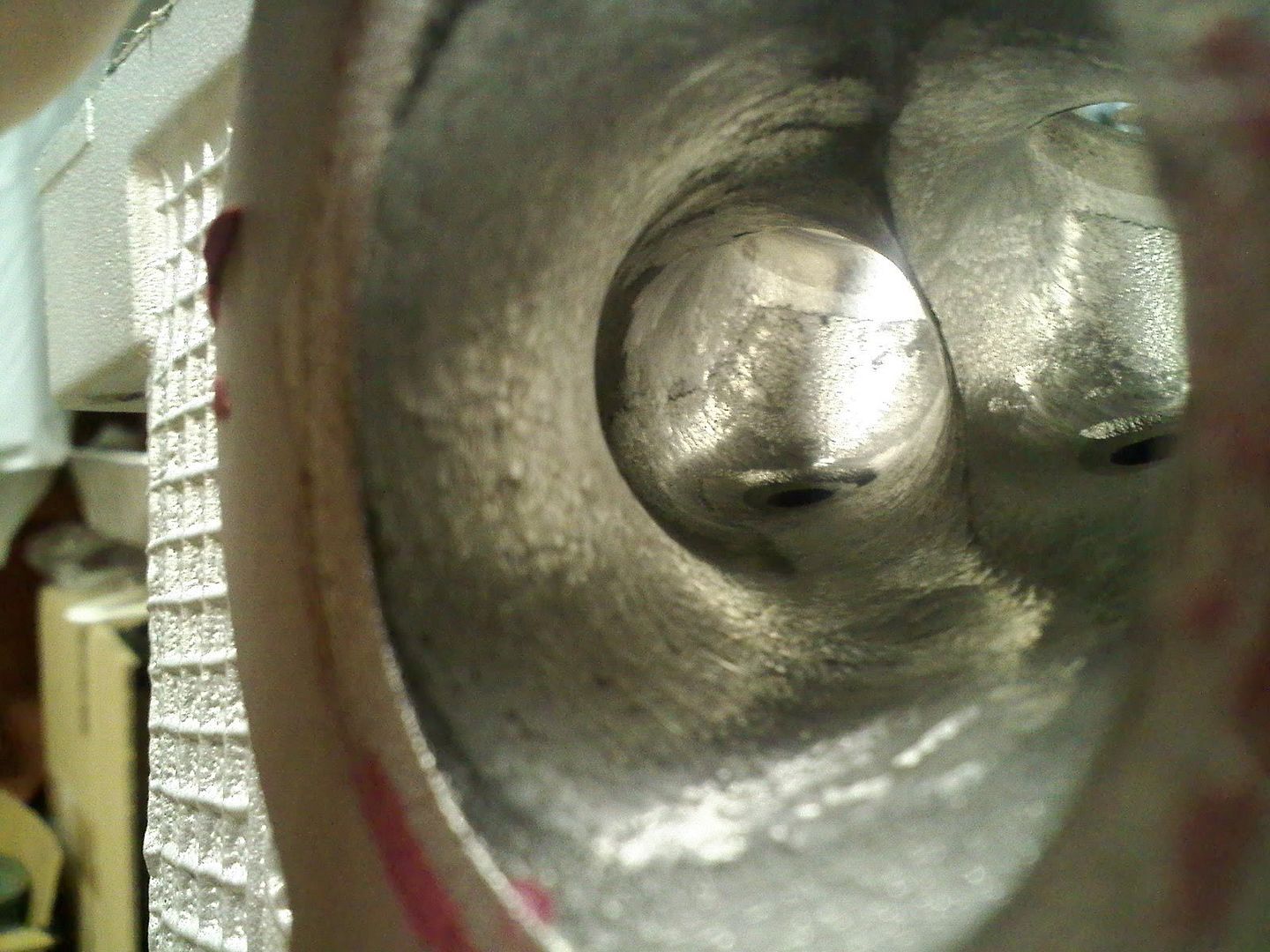

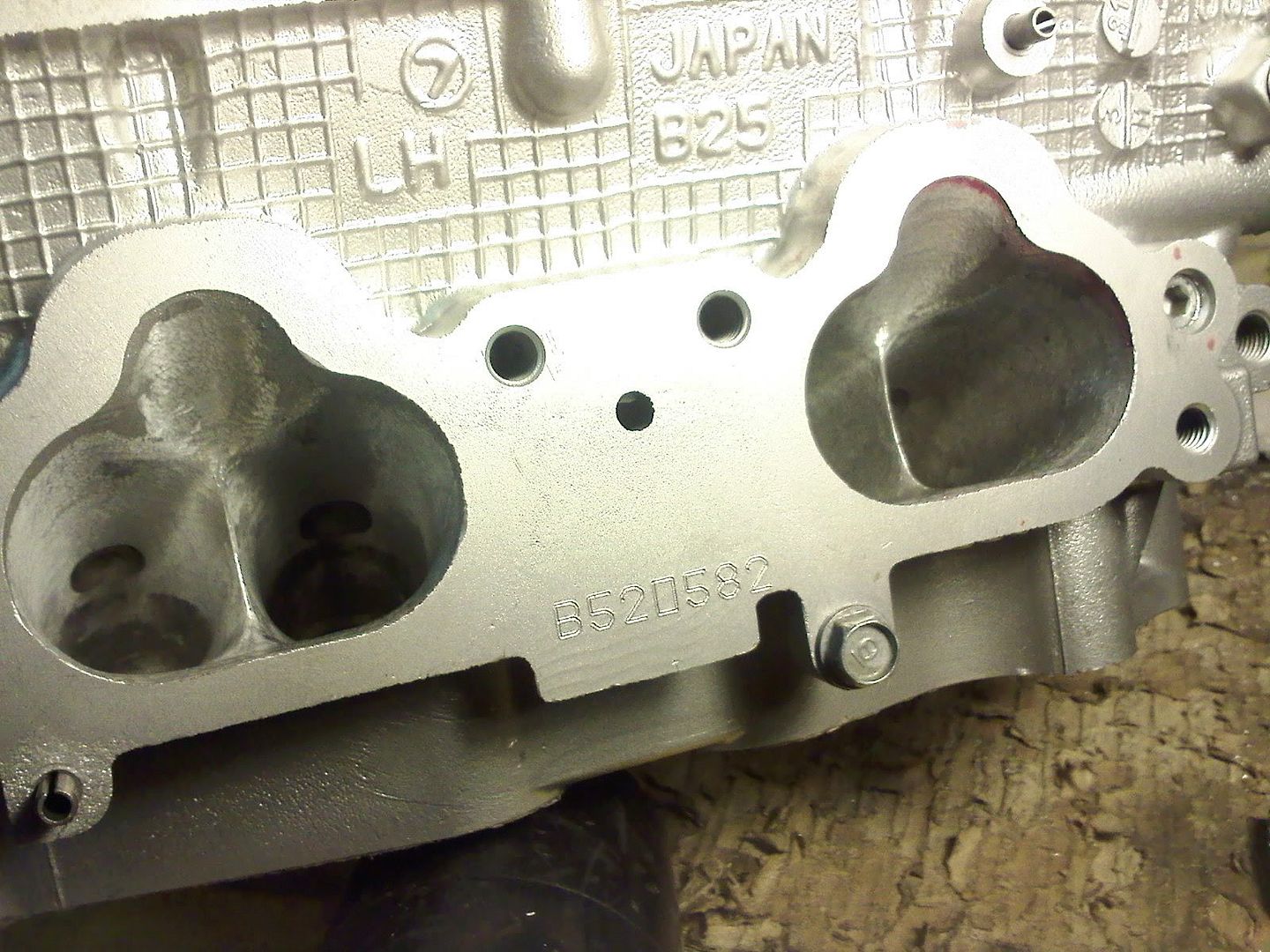

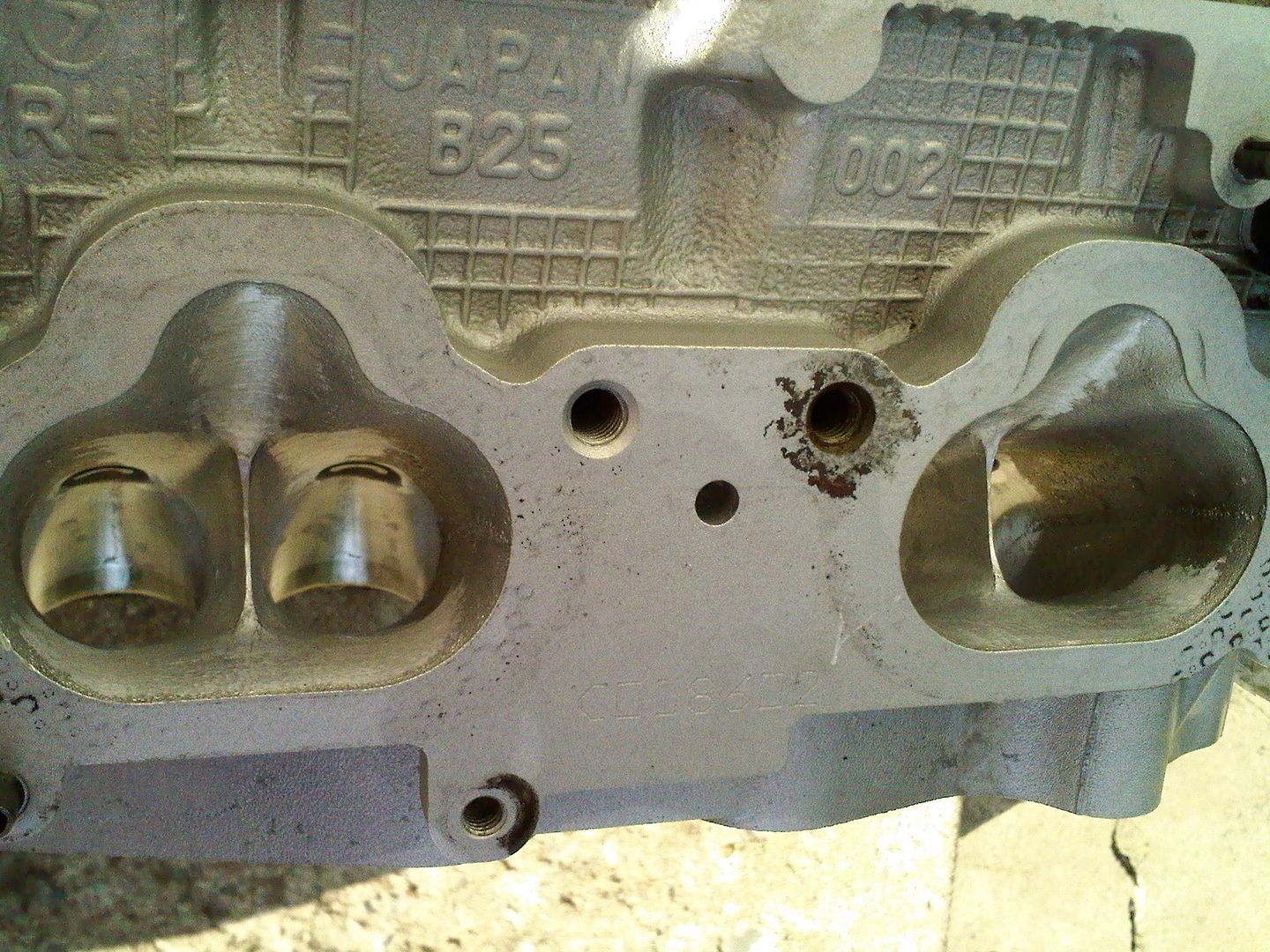

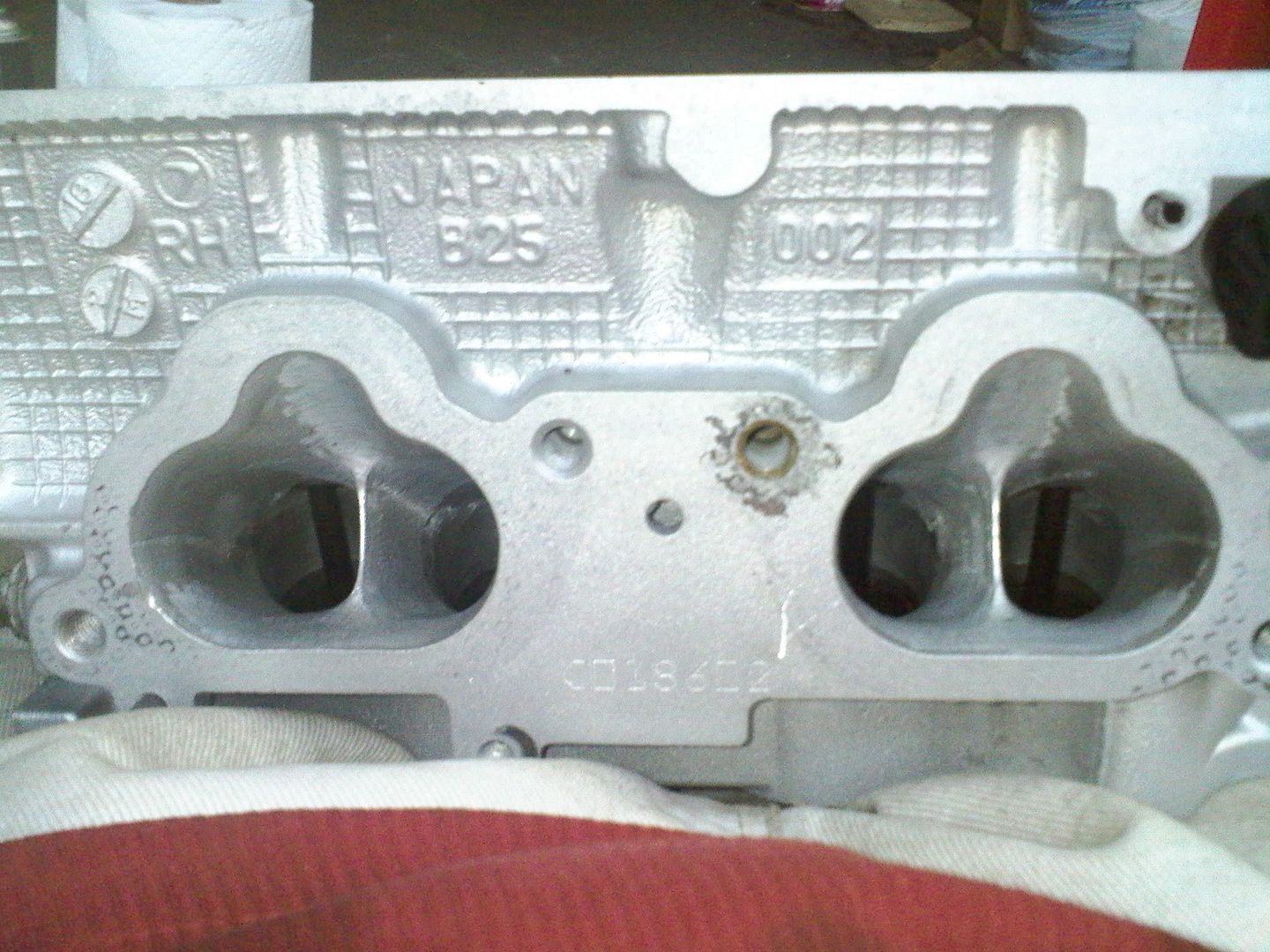

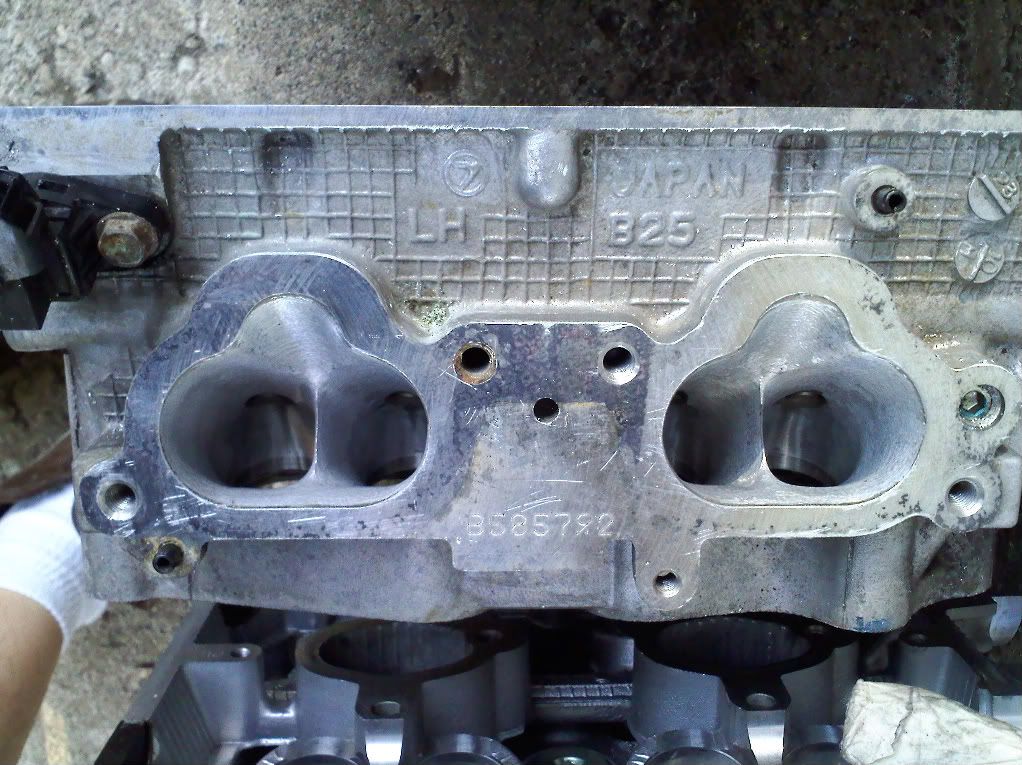

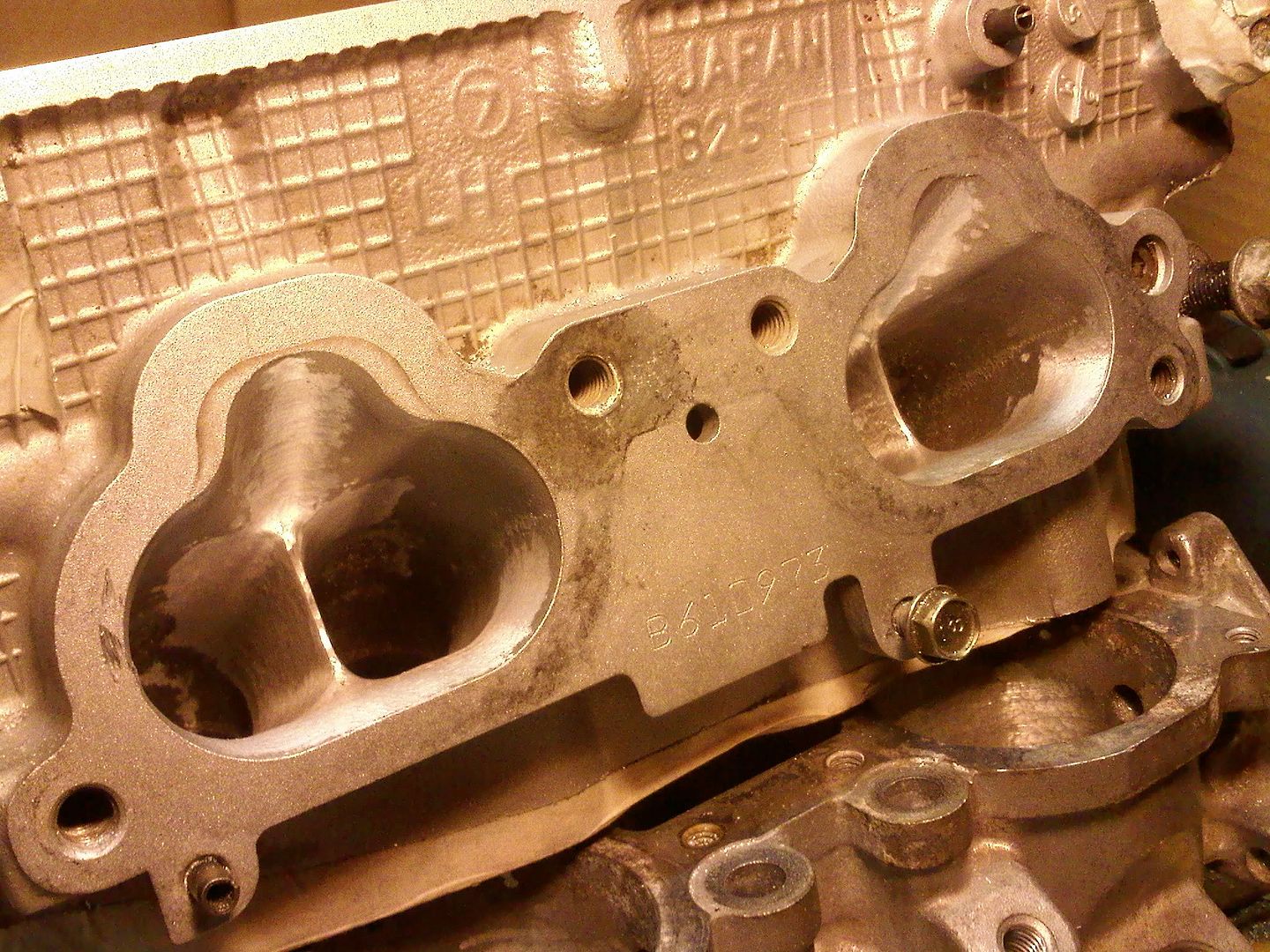

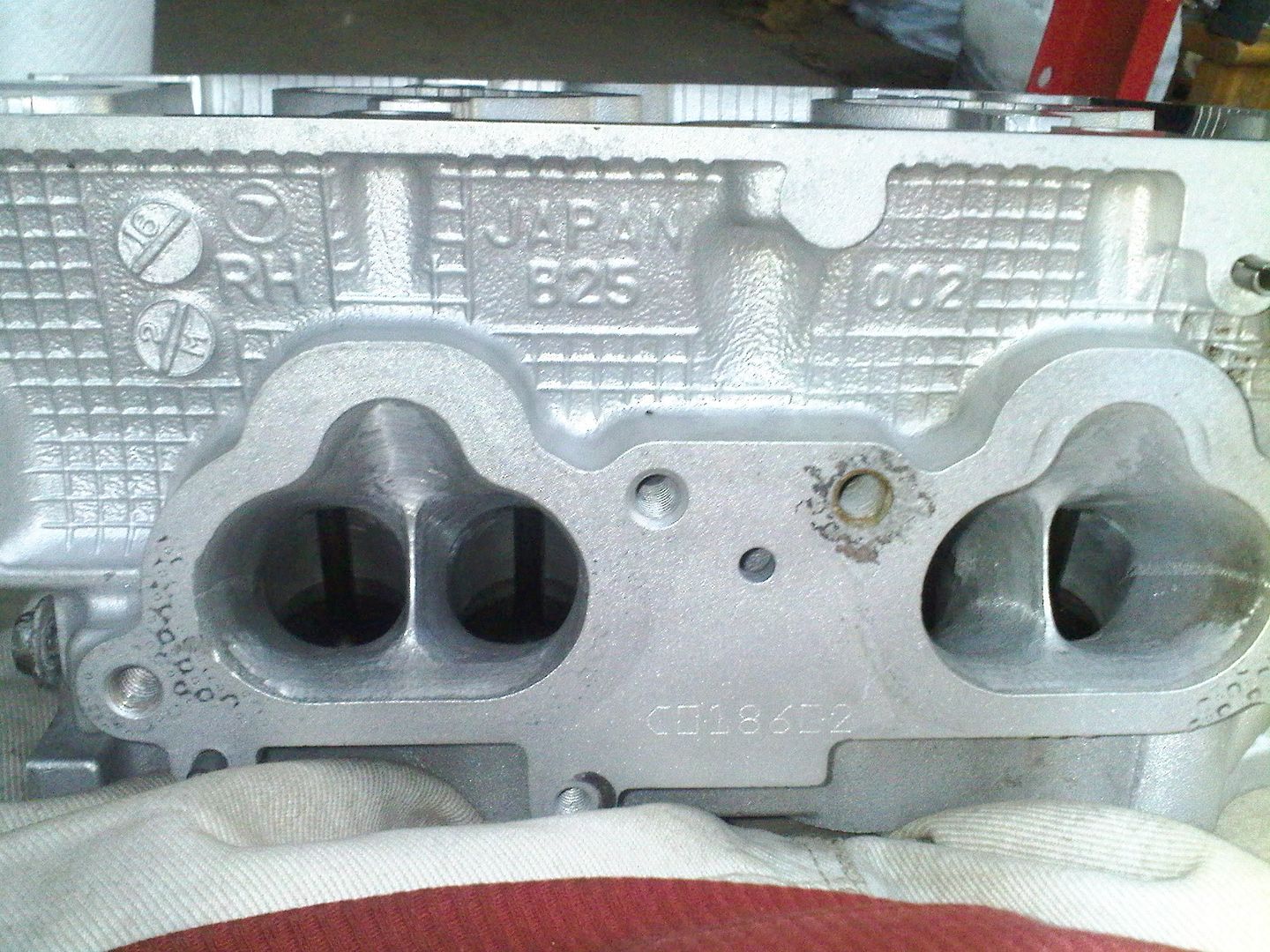

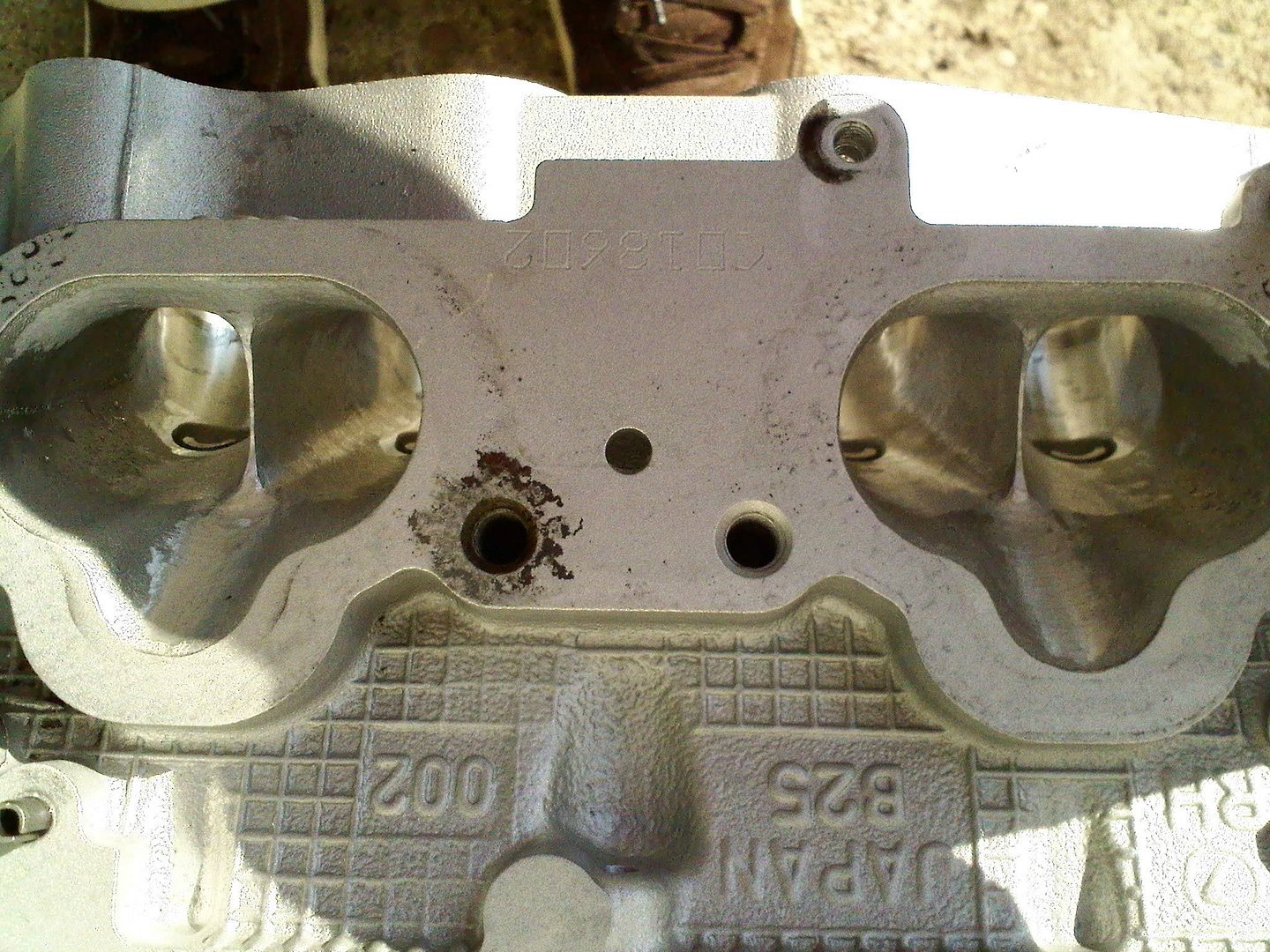

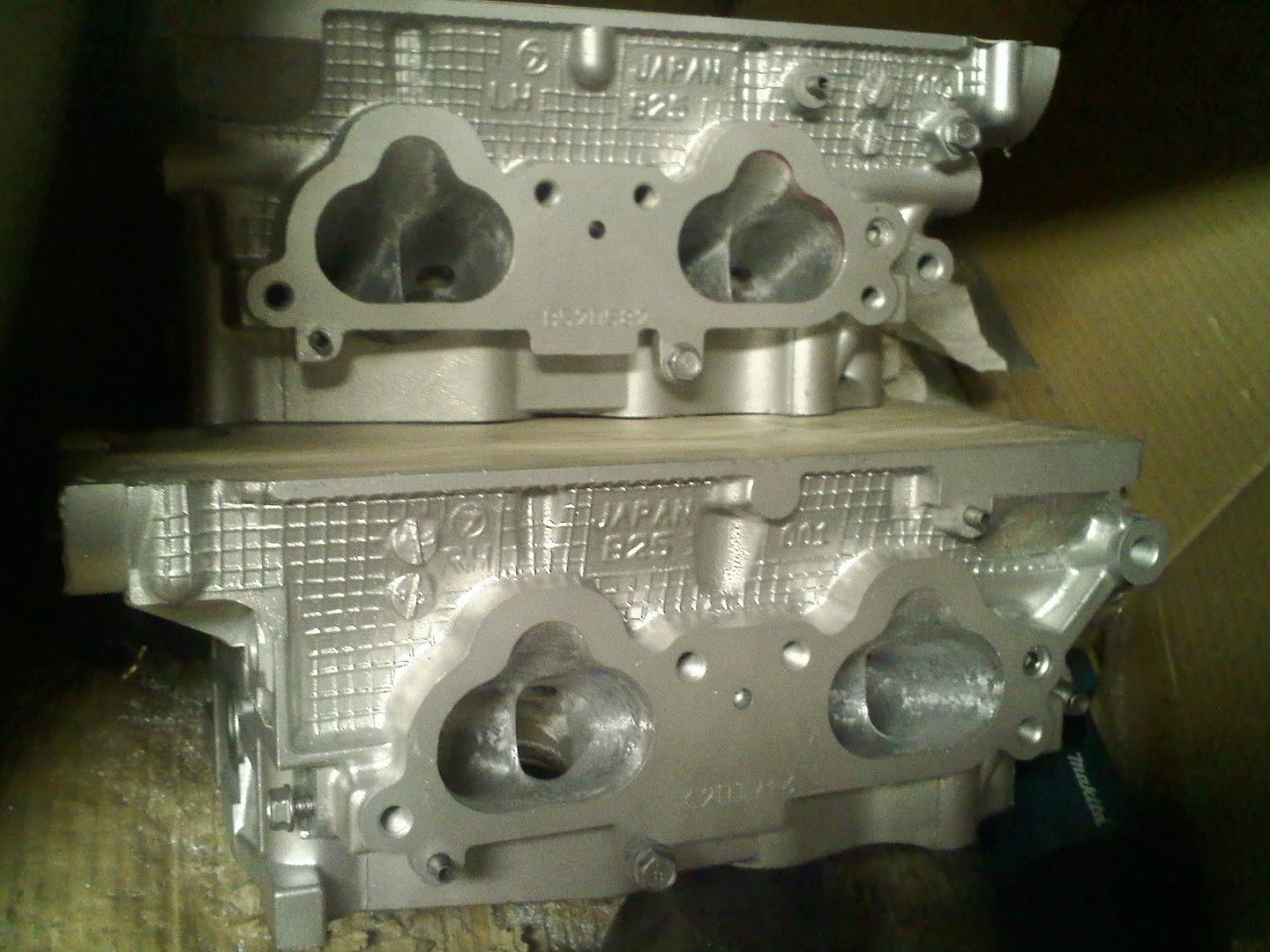

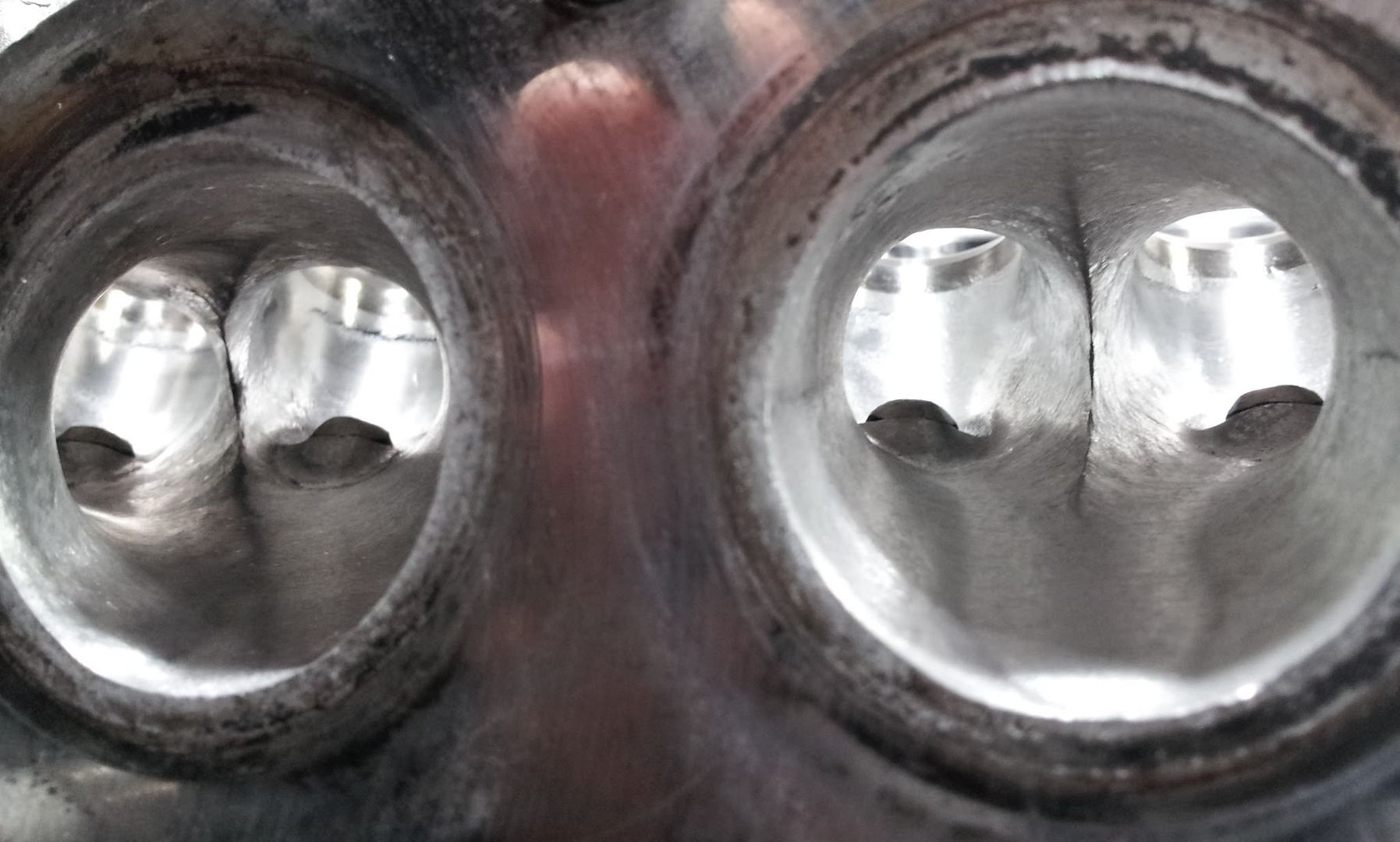

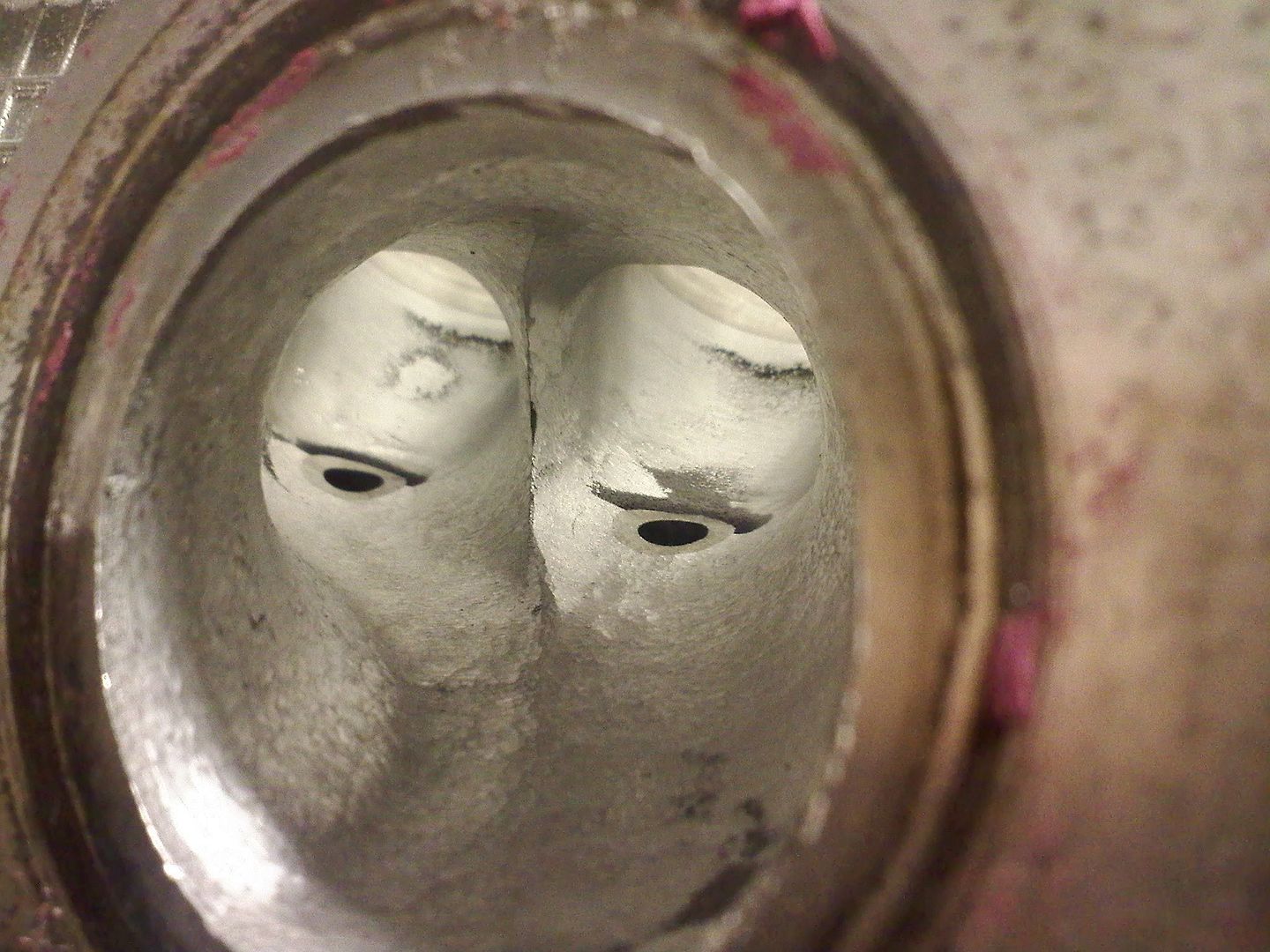

    just to give you guys an idea, this is stock exhaust B25 heads.
    [​IMG][​IMG]
    [​IMG][​IMG]
    [​IMG][​IMG]

    FuJi K, May 22, 2010
    #69
  25. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

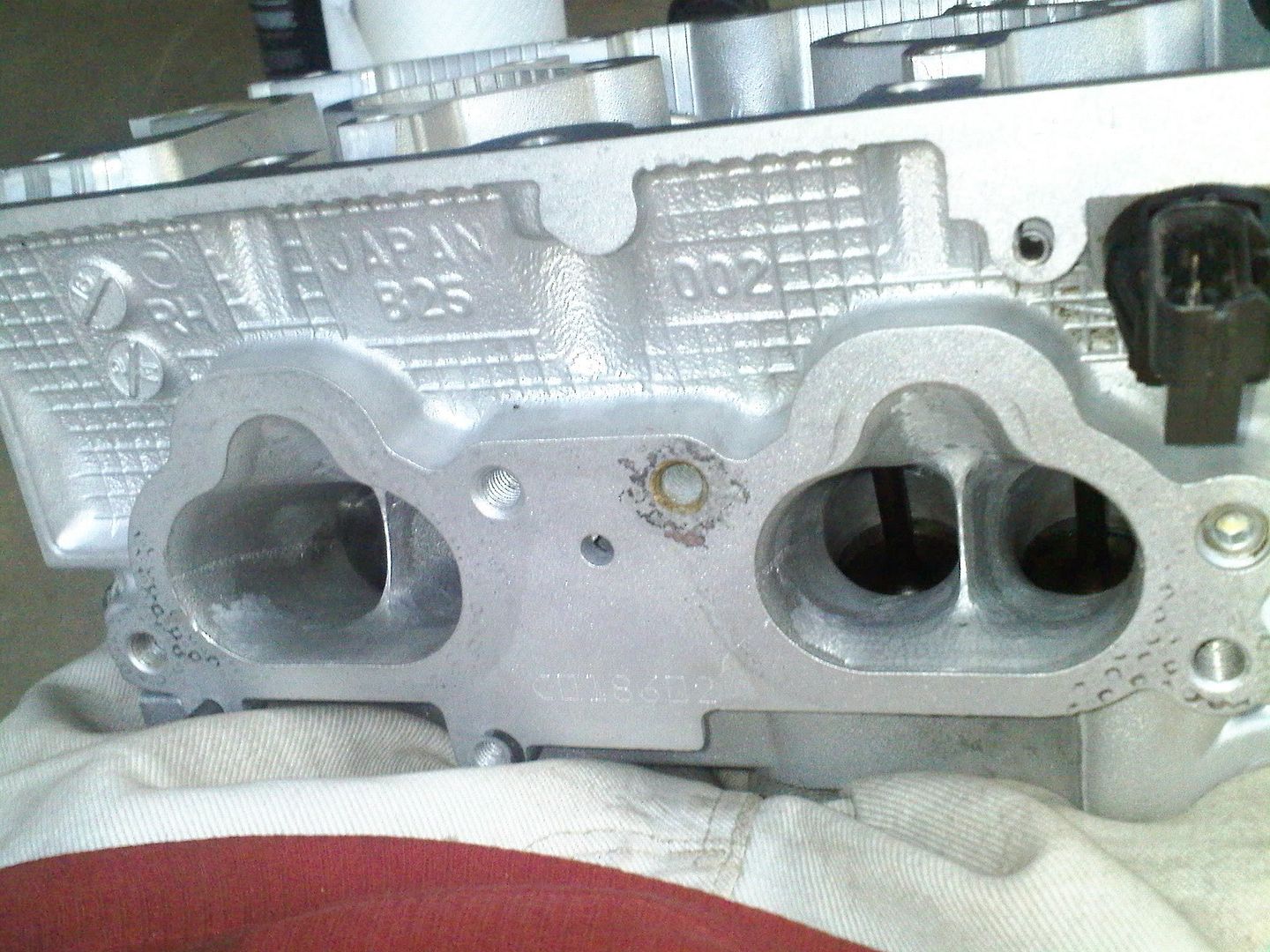

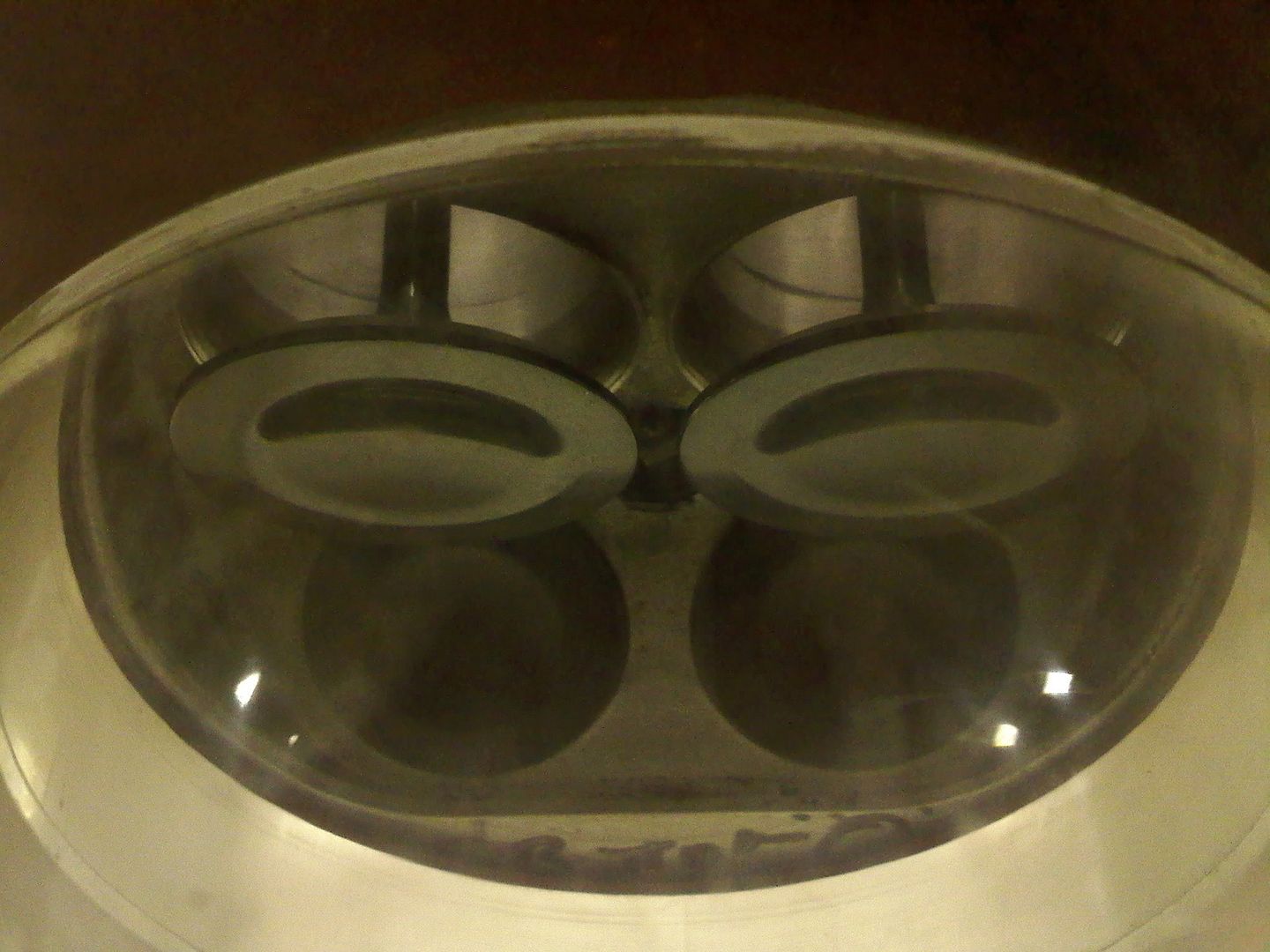

    Stock valves, no valve job, Baby D style intakes with full bowl work on exhaust. Superflow600@28"
    NOTE: B25 heads

    Intake:
    .100" = 86cfm
    .200" = 170cfm
    .300" = 241cfm
    .400" = 267cfm

    Exhaust (straight)
    .100" = 78cfm
    .200" = 159cfm
    .300" = 217cfm
    .400" = 239cfm

    Exhaust (dog leg)
    .100" = 81cfm
    .200" = 159cfm
    .300" = 210cfm
    .400" = 228cfm


    [​IMG][​IMG][​IMG][​IMG]
    [​IMG][​IMG][​IMG][​IMG]

    FuJi K, Jul 20, 2010
    #70
  26. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248

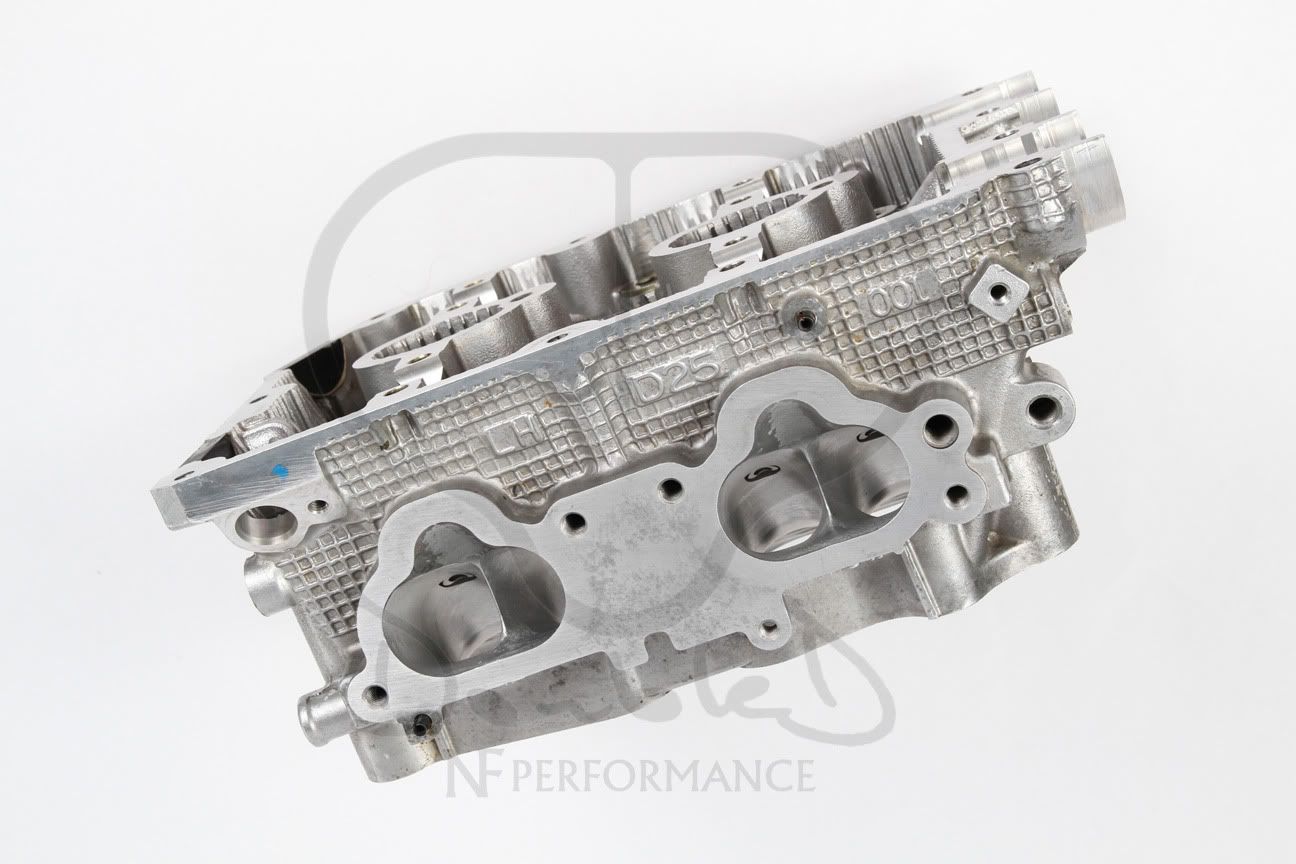

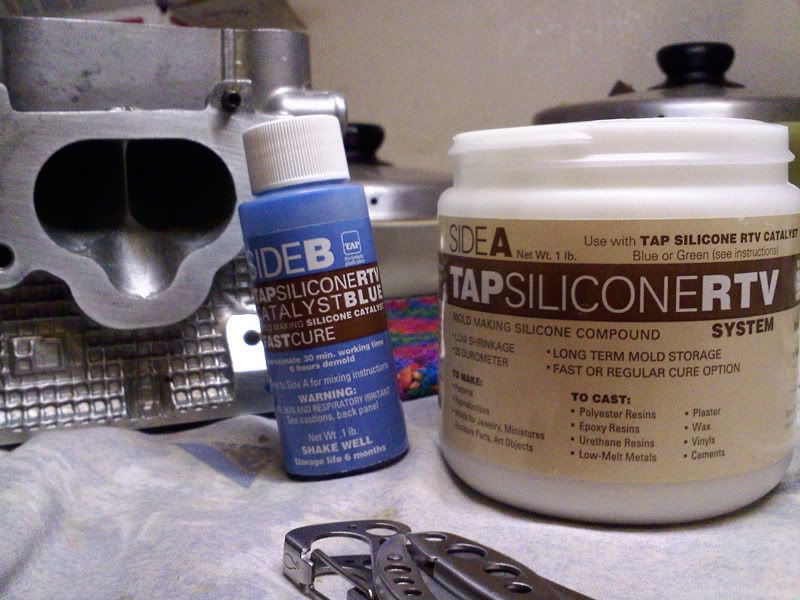

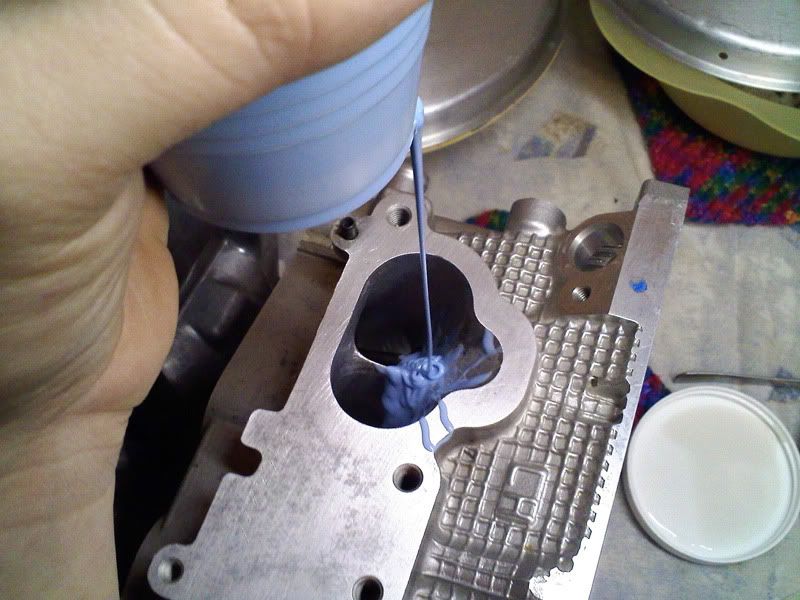

    Want to see more?

    [​IMG]
    [​IMG]

    FuJi K, Oct 31, 2012
    #71
    Juks likes this.
  27. Musashi
    Offline

    Musashi Well-Known Member

    Likes Received:
    583
    Trophy Points:
    348
    Hollaluya there is light at the end of two tunnels! ;)

    Looks great pal!

    Musashi, Oct 31, 2012
    #72
  28. GiMp
    Offline

    GiMp Well-Known Member

    Likes Received:
    297
    Trophy Points:
    168
    Aka cute

    GiMp, Oct 31, 2012
    #73
  29. Tash
    Offline

    Tash Well-Known Member

    Likes Received:
    775
    Trophy Points:
    198
    I want to see more double d's

    Tash, Oct 31, 2012
    #74
  30. Juks
    Offline

    Juks Well-Known Member

    Likes Received:
    87
    Trophy Points:
    113
    Can't wait! :cool:

    We're pulling everything out Friday. Next stop, Darton East. ;)

    Might need some extra coaching at BIR next spring, cause we're gonna be all over the place! NF FTW!

    Juks, Nov 3, 2012
