Floor Mat Clip - It finally makes sense !

Discussion in 'Modifications And Maintenance' started by stoooo, Dec 3, 2008.

  1. stoooo
    Offline

    stoooo Well-Known Member

    Likes Received:
    18
    Trophy Points:
    123
    OK, so many many moons ago, when I had a bunch of Subie Bucks kicking around, dying to be spent, I ordered up a whole slew of trim clips for my 2001 RS to replace the ones that were missing. One of the clips was the one that holds the driver's side floor mat in place. I probably tried to install that thing a dozen different times, but could never work it out. There never seemed to be anywhere to hook it into behind the hole in the carpet.

    Well, yesterday, I had a eureka moment. While I was standing around in the post office car park, waiting for them to re-open after their siesta, I decided to see if I could put the clip back in on my new car, since it had fallen out, and looked like it wouldn't be too hard to put back. It also looked nothing like the one Bielke gave me, so I didn't expect any trouble from it.

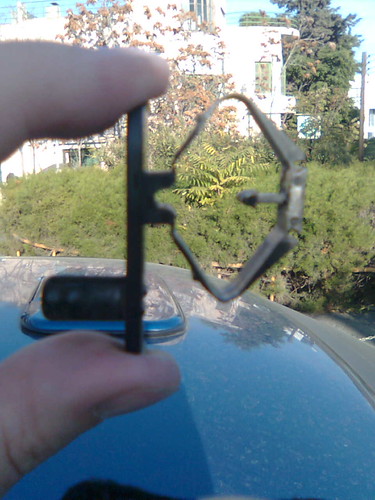

    So, I found out fairly quickly, that this clip and the one I got for my RS *are* in fact identical. It turned out that the clip couldn't quite be wiggled back into the hole in the carpet. It had a tabbed clip in the middle that looked like it needed to be undone, so I got a little screwdriver out on my Leatherman, and unclipped it. All of a sudden, the clip looked just like the one I had in the US...

    [​IMG]

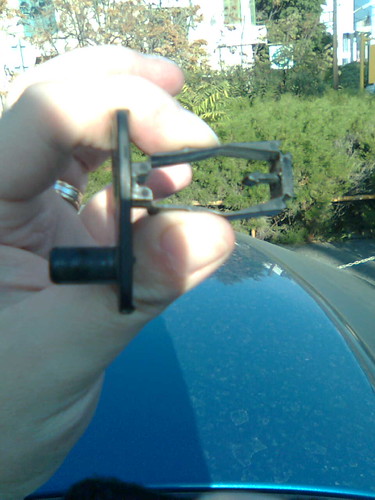

    So, apparently, the long bit doesn't get stuffed into some mystery hole in the bodywork under the carpet, but instead, you squish it together a bit...

    [​IMG]

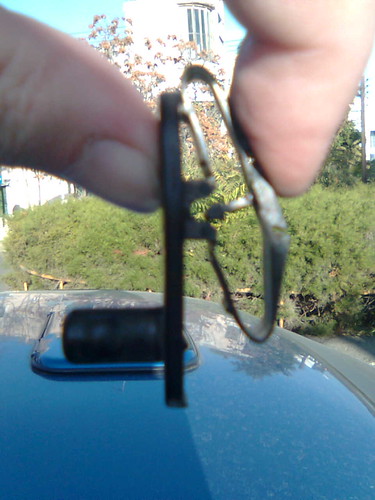

    Then stuff it through the hole in the carpet, and squish it a bit more until the tab in the middle clicks into place... (Not fully clicked into place here, obviously.)

    [​IMG]

    Thus the long bit becomes two shorter arms that hold it under the carpet. So, that's my mystery solved. Unfortunately, it's a crap design, and as the hole in the carpet stretches over the years, these clips become more and more worthless. What a shame.

    Stuart.

  2. G_2.5rs
    Offline

    G_2.5rs Well-Known Member

    Likes Received:
    15
    Trophy Points:
    103
    mine finally gave out on me because the hole became to big...-_-...lol

  3. blackozone
    Offline

    blackozone Well-Known Member

    Likes Received:
    1,018
    Trophy Points:
    348
    Congratulations?
    Also, I'm jealous of your car. Just want you to know that.

  4. austinpike
    Offline

    austinpike Well-Known Member

    Likes Received:
    2
    Trophy Points:
    203
    yep. fwiw, the '08s have a metal bar that spans the back edge of the mat, with two pegs, that actually bolts to the car. Props to the engineer that saw this as a detail worthy of improvement...

  5. TSTRBOY2004
    Offline

    TSTRBOY2004 Well-Known Member

    Likes Received:
    403
    Trophy Points:
    393
    welcome to life son....... this is common over a variety of applications ;)

  6. Shibbs
    Offline

    Shibbs The Daywalker

    Likes Received:
    74
    Trophy Points:
    283
    Lexus carpet is sewn, then grometted.

  7. ej20
    Offline

    ej20 Well-Known Member

    Likes Received:
    2
    Trophy Points:
    223
    one arm of mine snapped. I just lived with it. B4 it snapped its a pain in the ass to unclip it to put it back in the hole.

  8. stoooo
    Offline

    stoooo Well-Known Member

    Likes Received:
    18
    Trophy Points:
    123
    Did you like how I managed to sneak in a couple of peeks at the roof vent in the above pics ? That was entirely by accident. No, it was, honest.

    I still haven't had a chance to really play with the car. This weekend marks the end of a couple of very time consuming things that have been going on, so I'm hoping to make a good run up the mountain next weekend. I wonder if the kids want to go along.

    Stuart.

  9. matt_wong
    Offline

    matt_wong Well-Known Member

    Likes Received:
    0
    Trophy Points:
    201
    would you happen to know the part number my car has been missing this for years

  10. stoooo
    Offline

    stoooo Well-Known Member

    Likes Received:
    18
    Trophy Points:
    123
    Nope, the one I had was still in the bag, but went to the new owner of my RS. The lads at Morries Mtka should be able to help you out, though.

    Stuart.

  11. mikaylaela
    Offline

    mikaylaela BANNED

    Likes Received:
    0
    Trophy Points:
    0
    just wondering if what is the best way of cleaning the cheap car floormats? it is all right to wash it with water?

    [EDITED BY READYMIX] USER WAS BANNED FOR THIS POST. SPAMMING CAR PARTS SITE URL IN DUG UP DEAD THREADS.

  12. readymix
    Offline

    readymix ...Lest ye be trod upon... Staff Member

    Likes Received:
    2,892
    Trophy Points:
    473
    Ok, I get it now, you're a carparts DOT com spammer. Kiss your ass goodbye.
