Fuel Injector Seal Adapter Development!!

Discussion in 'Vendor Announcements/Sales/Discounts' started by Aluminati, Jan 14, 2016.

  1. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178
    The square cushion used to seal Subaru style top feed injectors are junk, these require downward pressure and do not work well or at all if the injector floats. ID has introduced an adapter that now comes with new injector purchases (resellers) but these adapters will not work with older style ID injectors because it causes the injector seating length to increase (the new style injector bodies compensate to get back to OEM length).

    So i thought why not make an adapter that will work with these older style injector bodies that came with square cushions :)

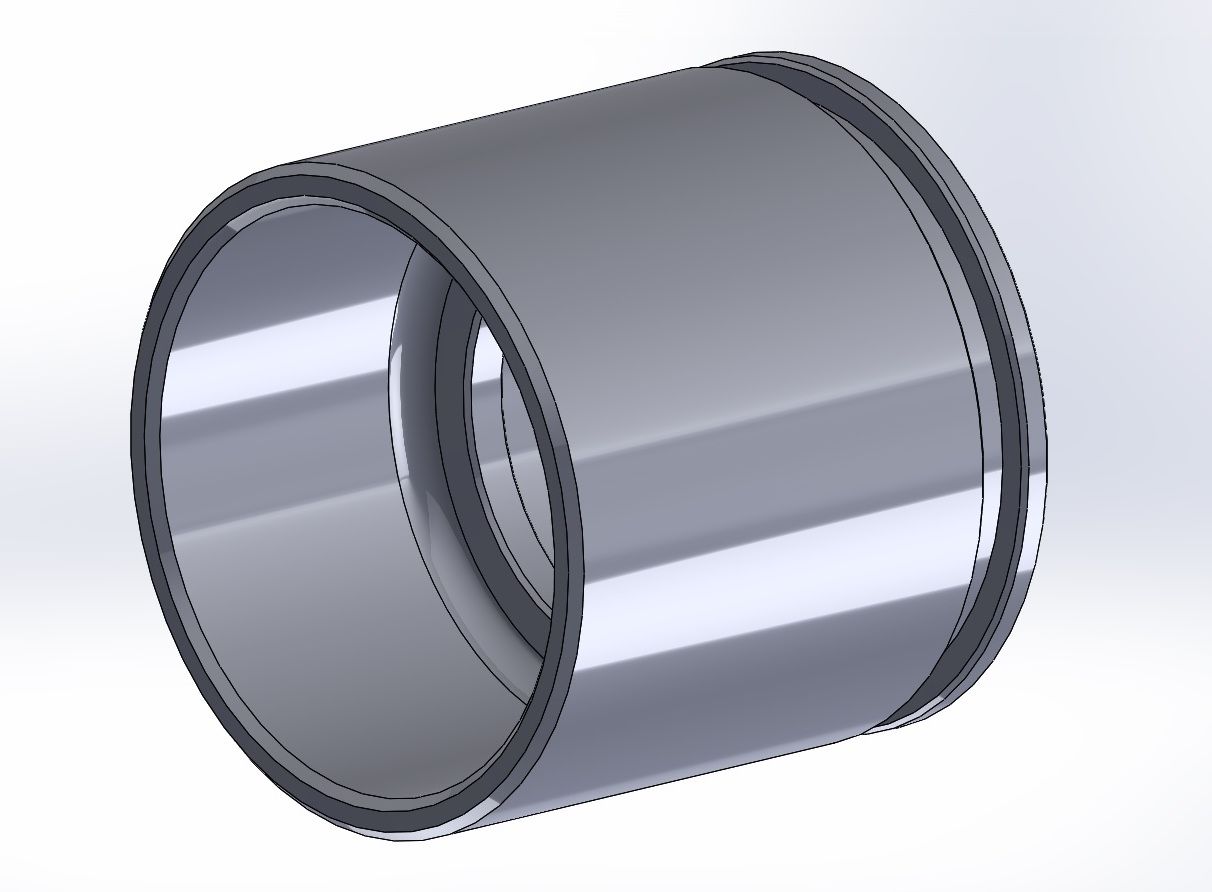

    They seal into two places, one o-ring is used on the injector to seal the inside of the adapter and the second seals around the outside of the adapter when pressed (has to be a tight fit) into the tumbler/TGV injector port. The adapters work with or without downward pressure and can float a small amount (1/32" or so).

    These adapters will be machined from billet 6061 aluminum, anodized and be supplied with Viton o-rings.

    If the adapters need to be removed it can be very difficult, so i have added some relief pockets at the end of the adapters so a dental pick can be used for removal.

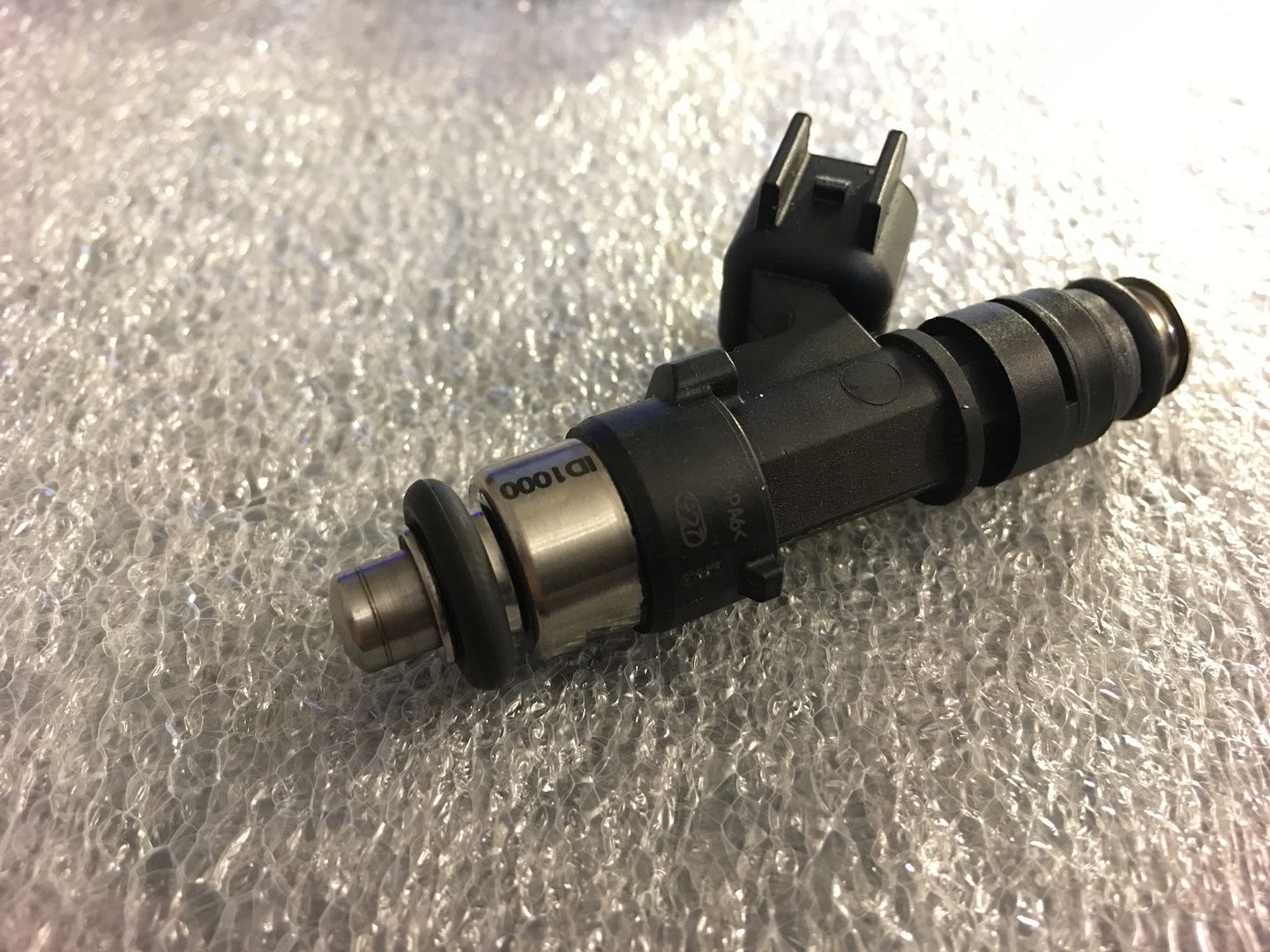

    Some injectors came with one cushion and some came with two cushions, i have designed two styles to accommodate more injectors. These have not been tested with injectors that came with anything other than square cushions, so i can't confirm fitment.

    These are not branded or affiliated with Injector Dynamics and any questions, concerns, comments or anything related to these products must come through Aluminati.

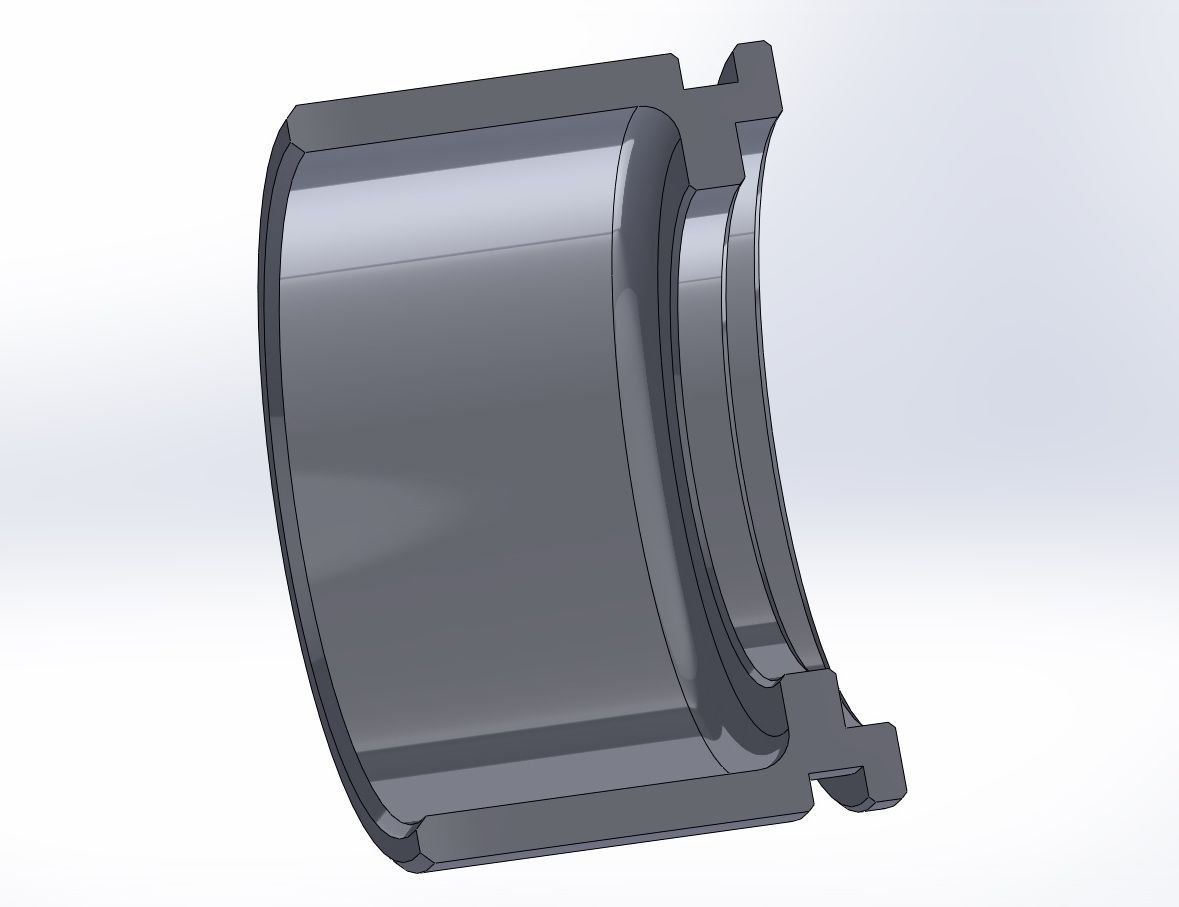

    Pictures :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Silky21L and Ryan FailRad like this.
  2. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    I can't wait to use these. The old ones always leaked at high boost.

    Where is the removal feature?

  3. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178

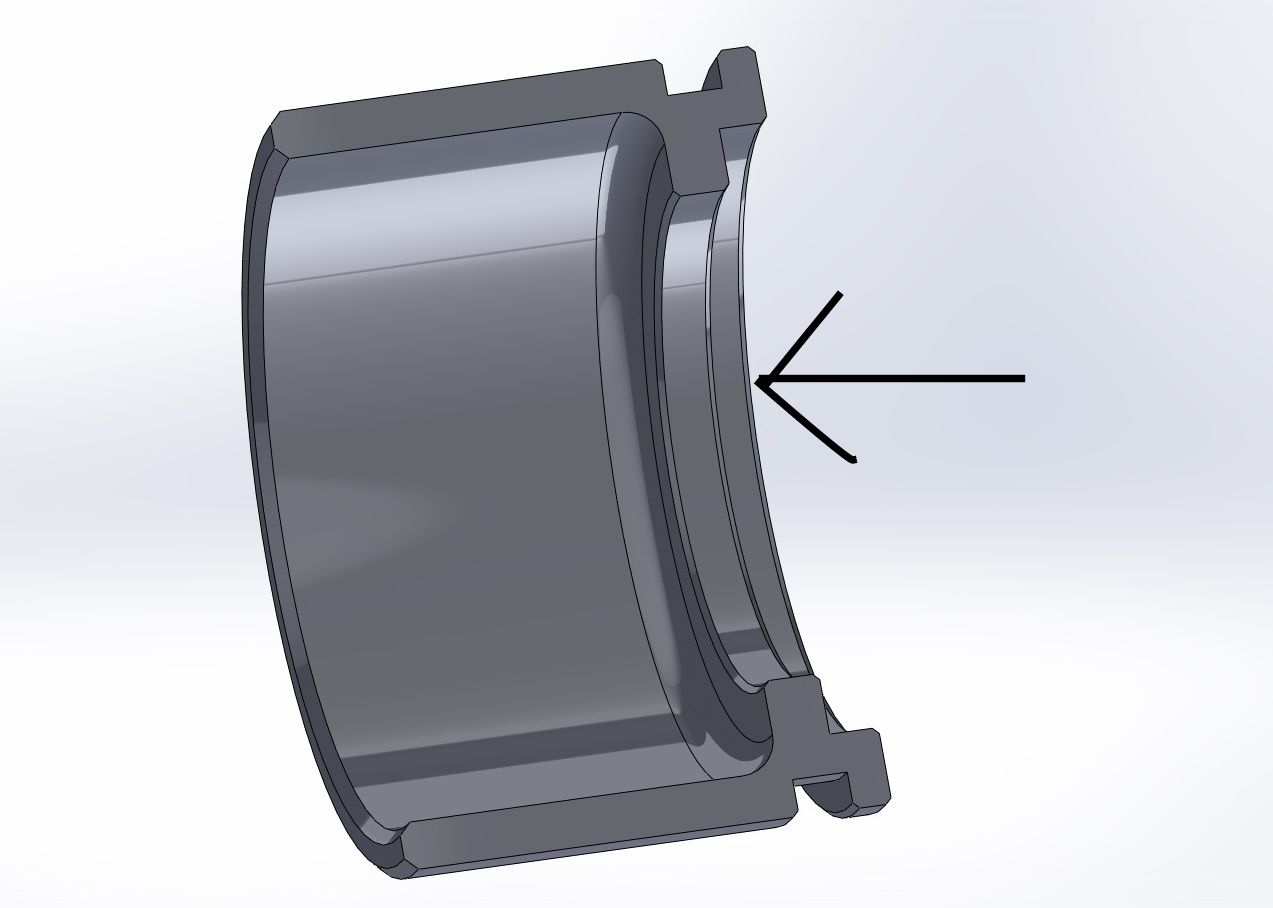

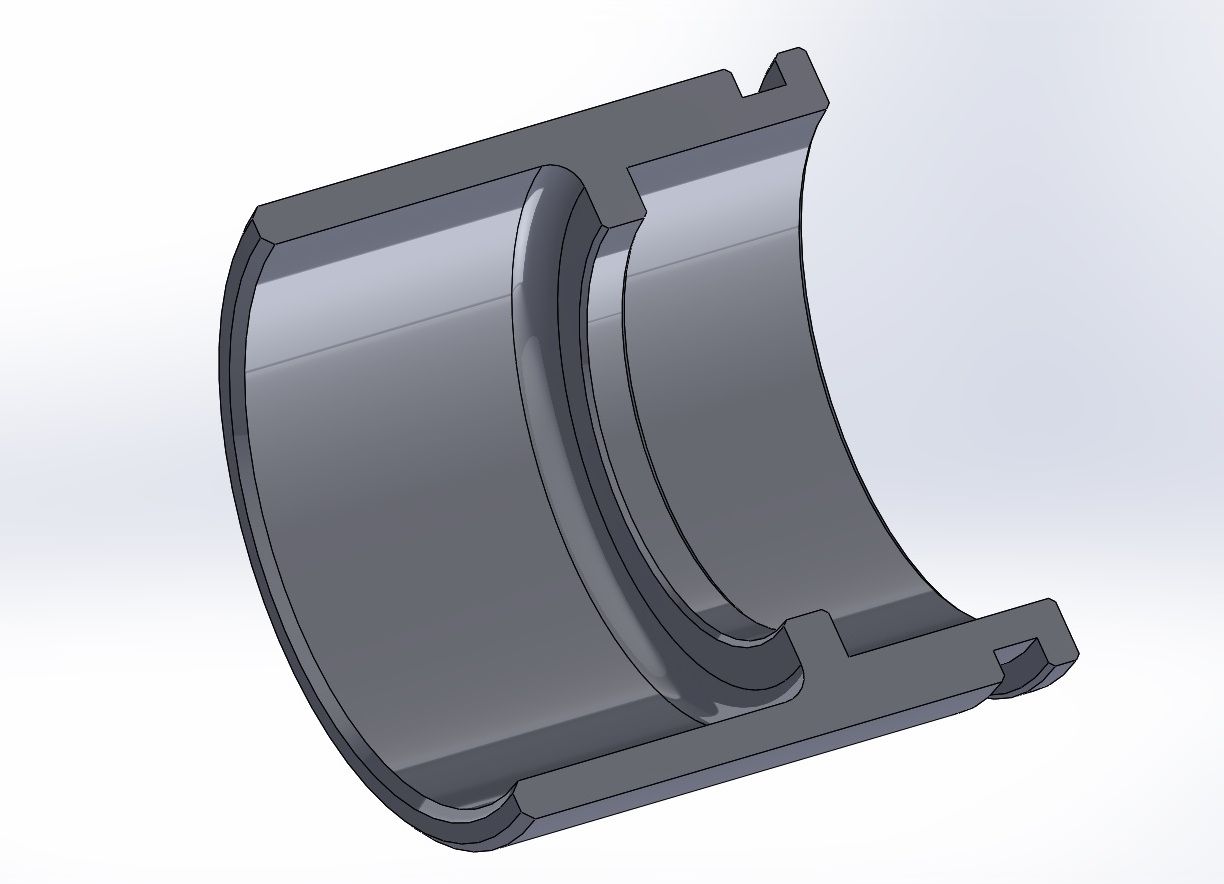

    Its at the bottom, its a pocket turned into the adapter to get a pick on it :) (the long version has a deeper pocket since the adapter had to be longer)

    [​IMG]

  4. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178

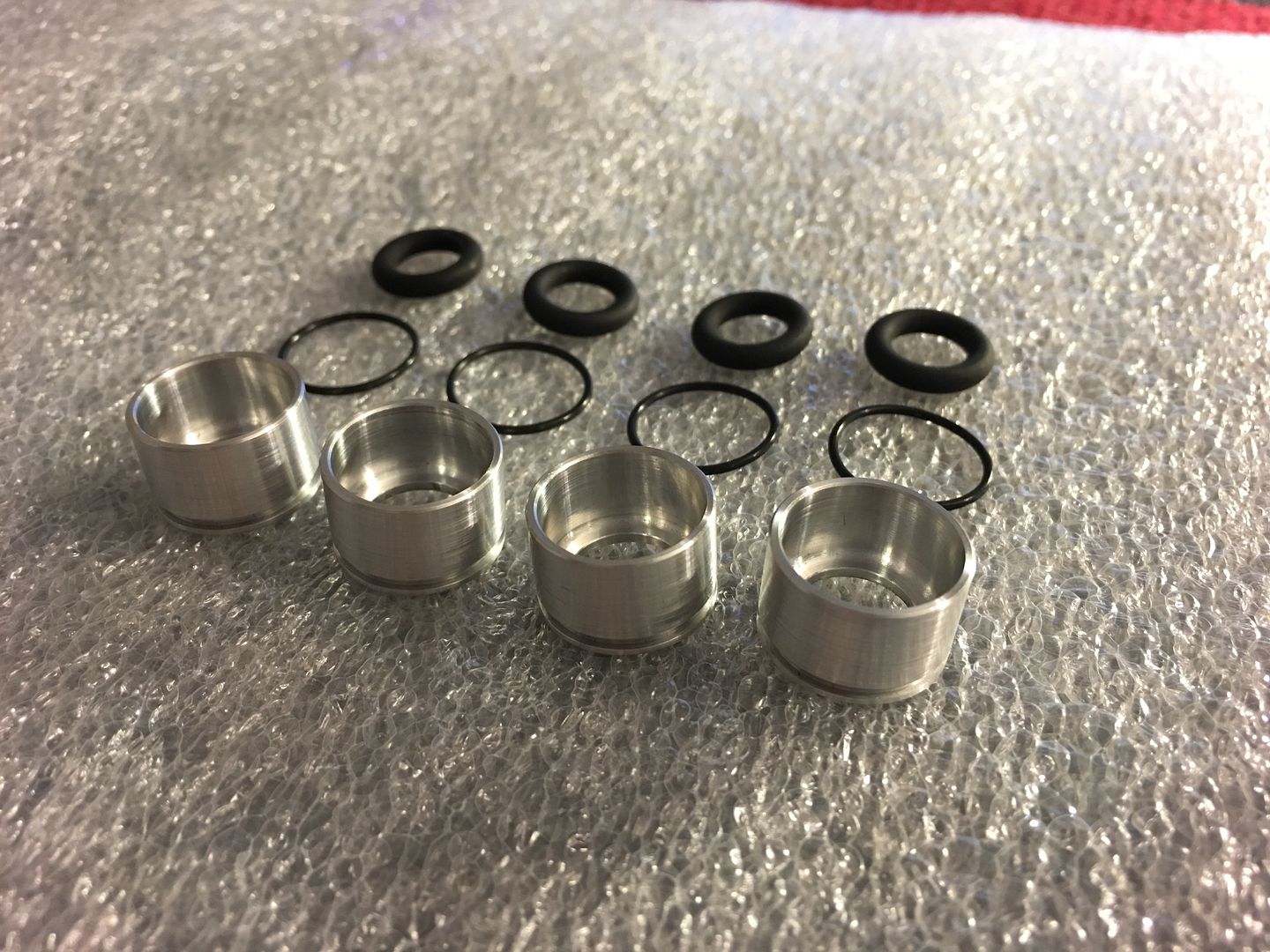

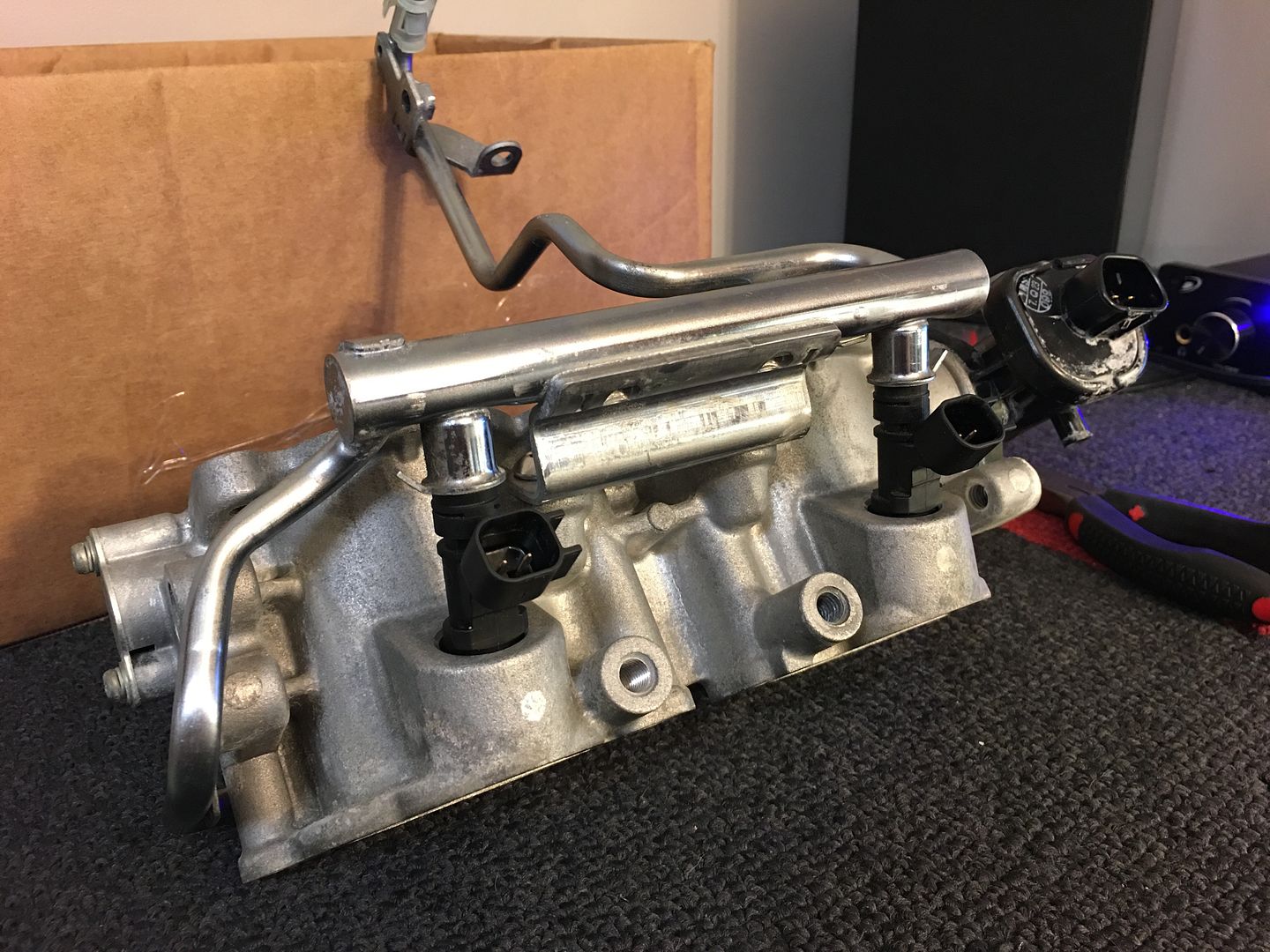

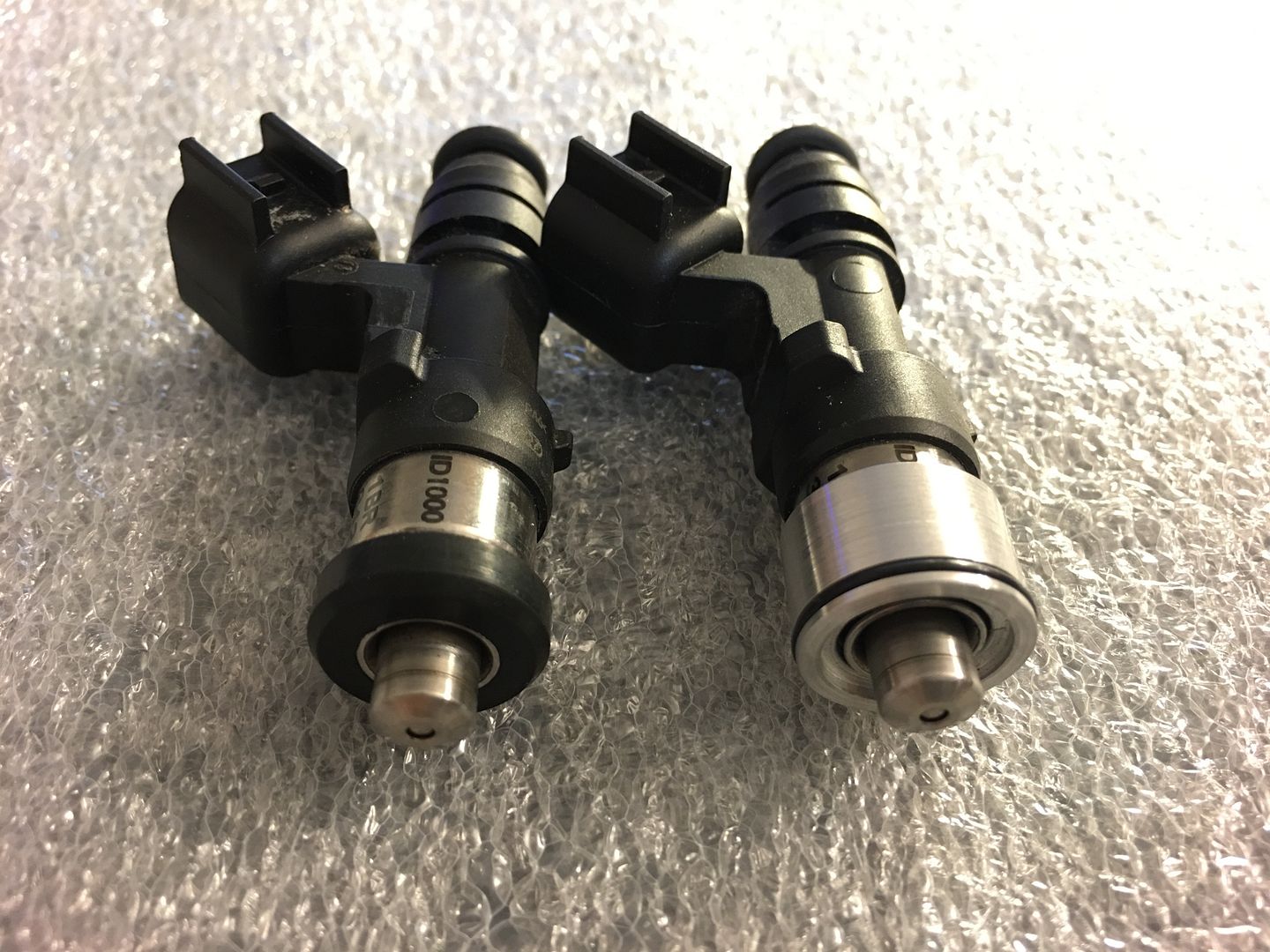

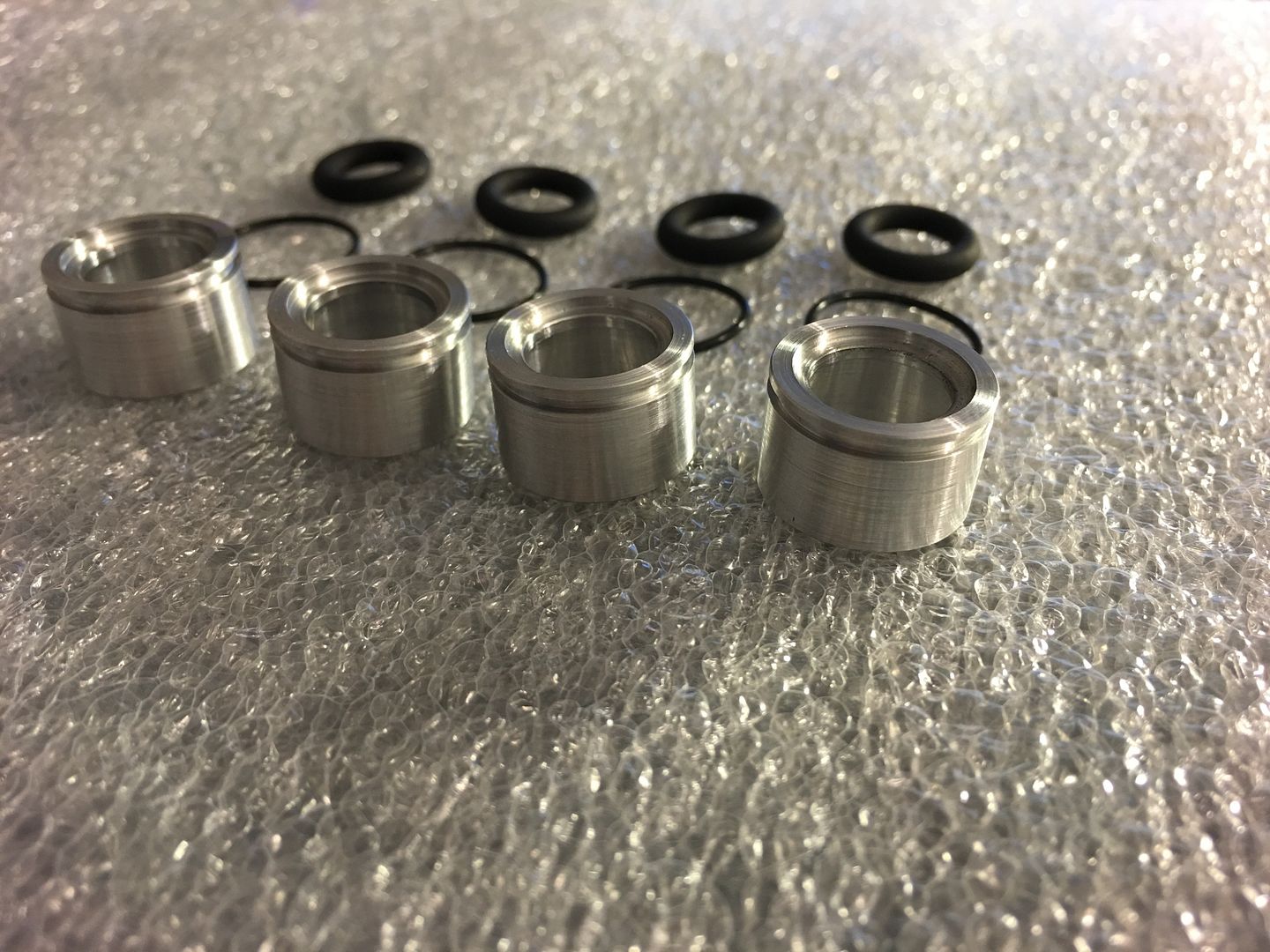

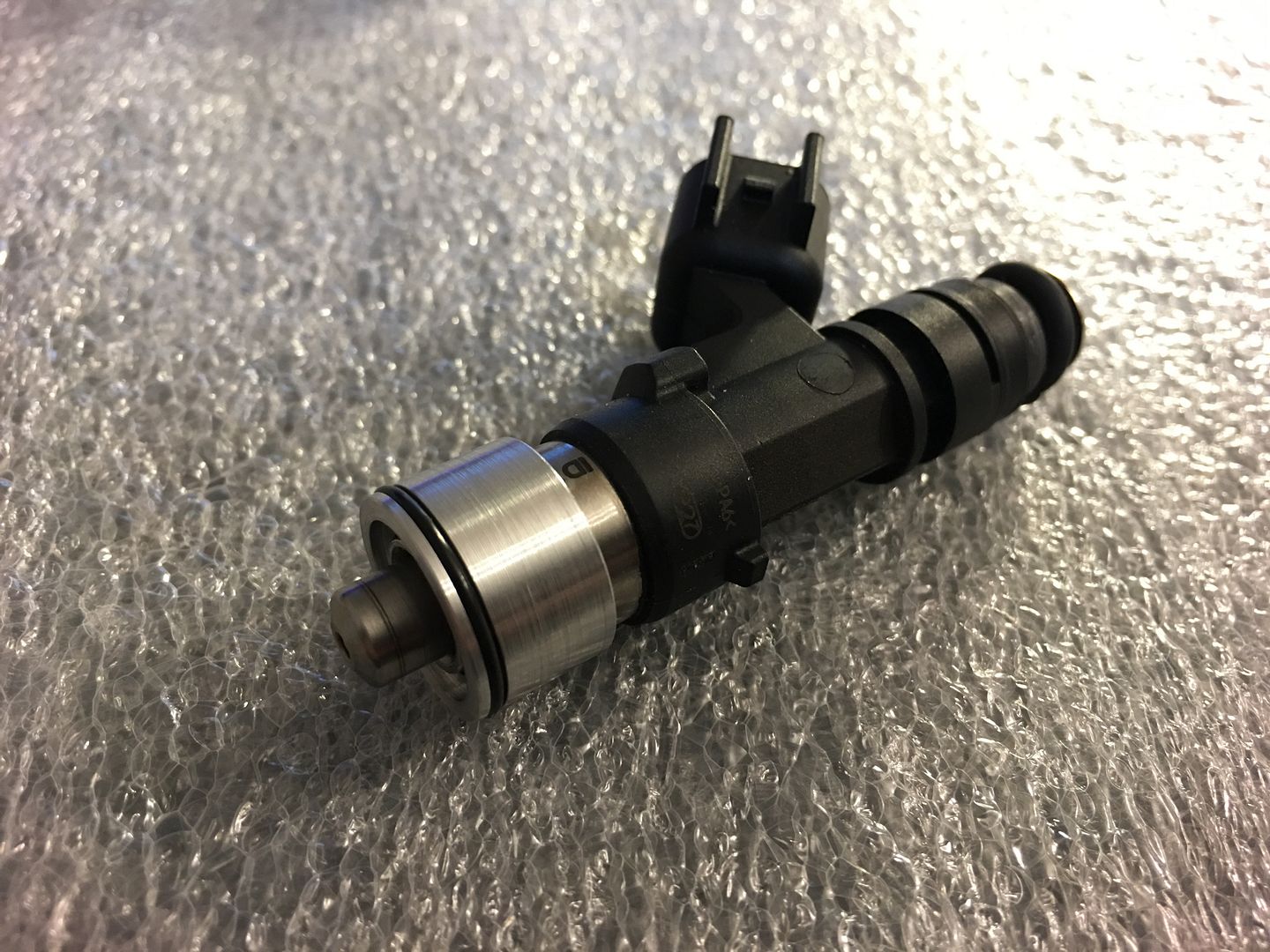

    Made 4 short adapters for final testing and everything works great! As you can see there is a inner o-ring and outer o-ring for sealing.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Ntxhuav_Khang, idget and EricS like this.
  5. EricS
    Offline

    EricS Nooberator

    Likes Received:
    1,039
    Trophy Points:
    248
    Got a laser-engraver to put your logo on them? :)

  6. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178
    You'd never see it :)

  7. EricS
    Offline

    EricS Nooberator

    Likes Received:
    1,039
    Trophy Points:
    248
    I was thinking more of the advertising aspect, so people that see photos of them posted online etc at least know who to get in touch with to buy them! :)

  8. Andy Engelmeier
    Offline

    Andy Engelmeier Well-Known Member

    Likes Received:
    58
    Trophy Points:
    113
    He could put an Aluminati watermark on them some place.

    When will these be available?

    Aluminati likes this.
  9. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178
    I hope to have these ready for sale in February.

    Andy Engelmeier likes this.
  10. eterenity11
    Offline

    eterenity11 Well-Known Member

    Likes Received:
    20
    Trophy Points:
    203
    Nice, need 2 set!!! cant wait..

    Aluminati likes this.
  11. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178

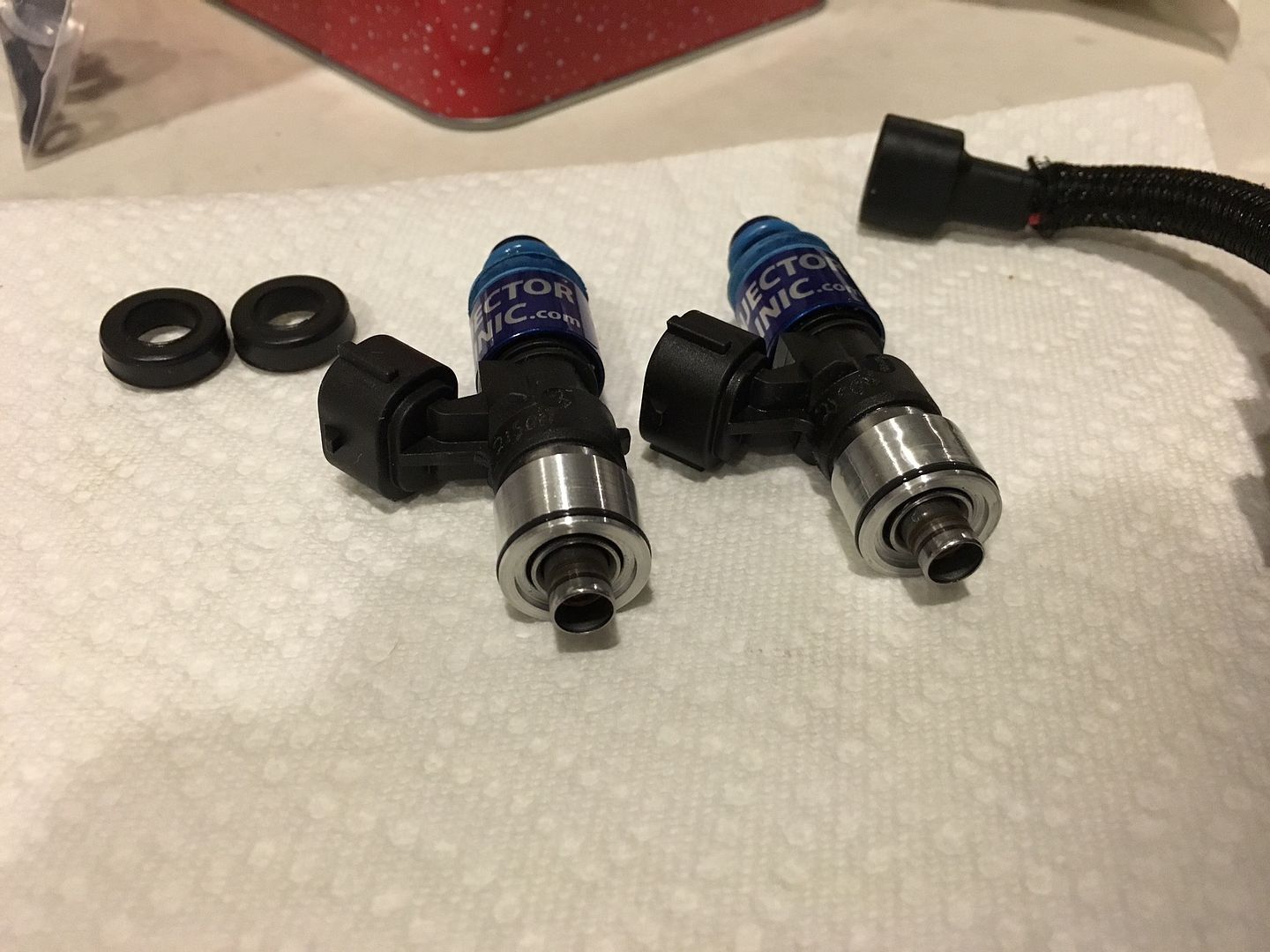

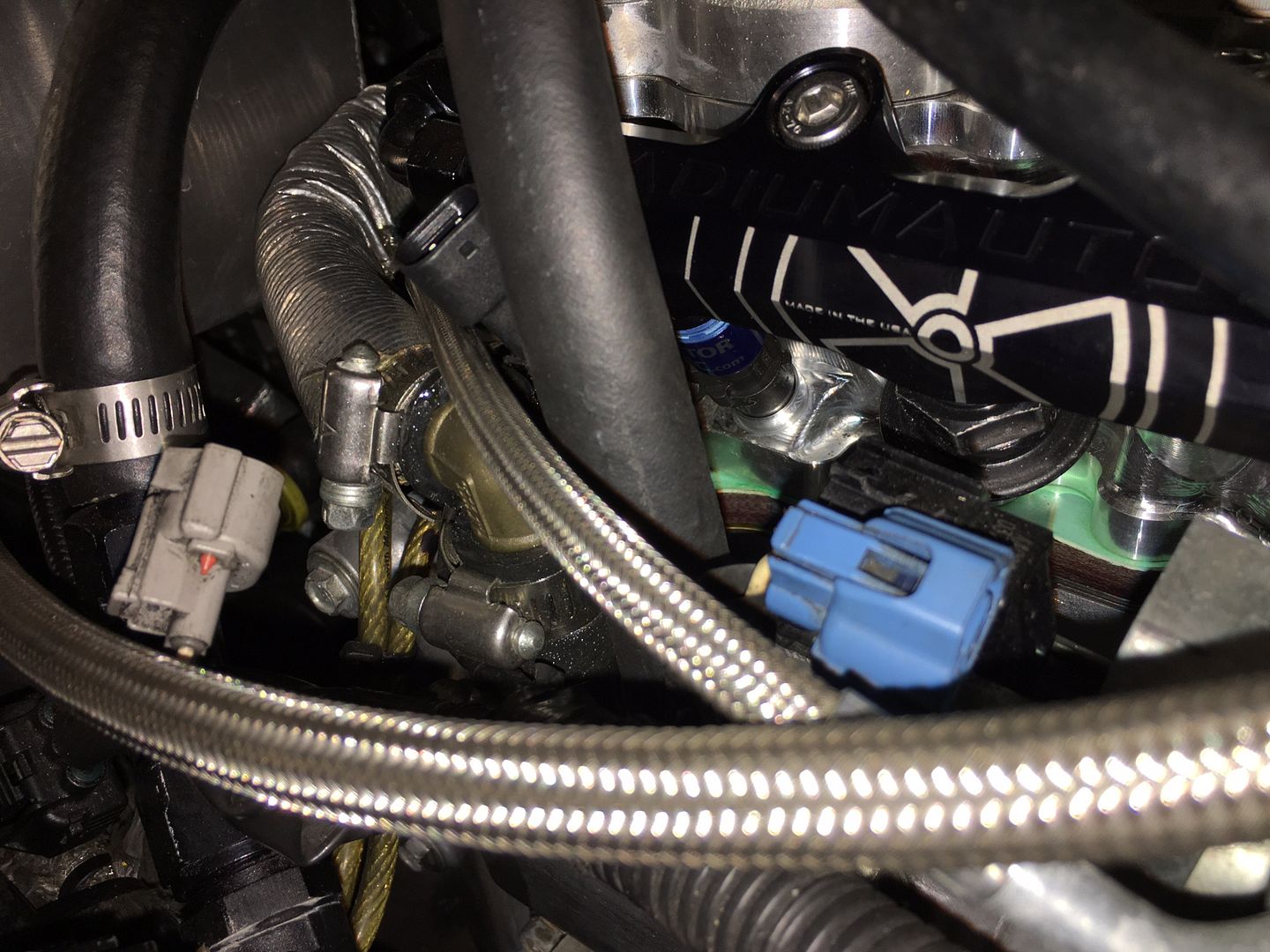

    Shout out to Jeff Chang for test fitting my fuel injector seal adapters on his car! Everything works great as expected.

    These are currently being turned and will be for sale February/March.

    [​IMG]

    [​IMG]

    Ntxhuav_Khang and tangledupinblu like this.
  12. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178

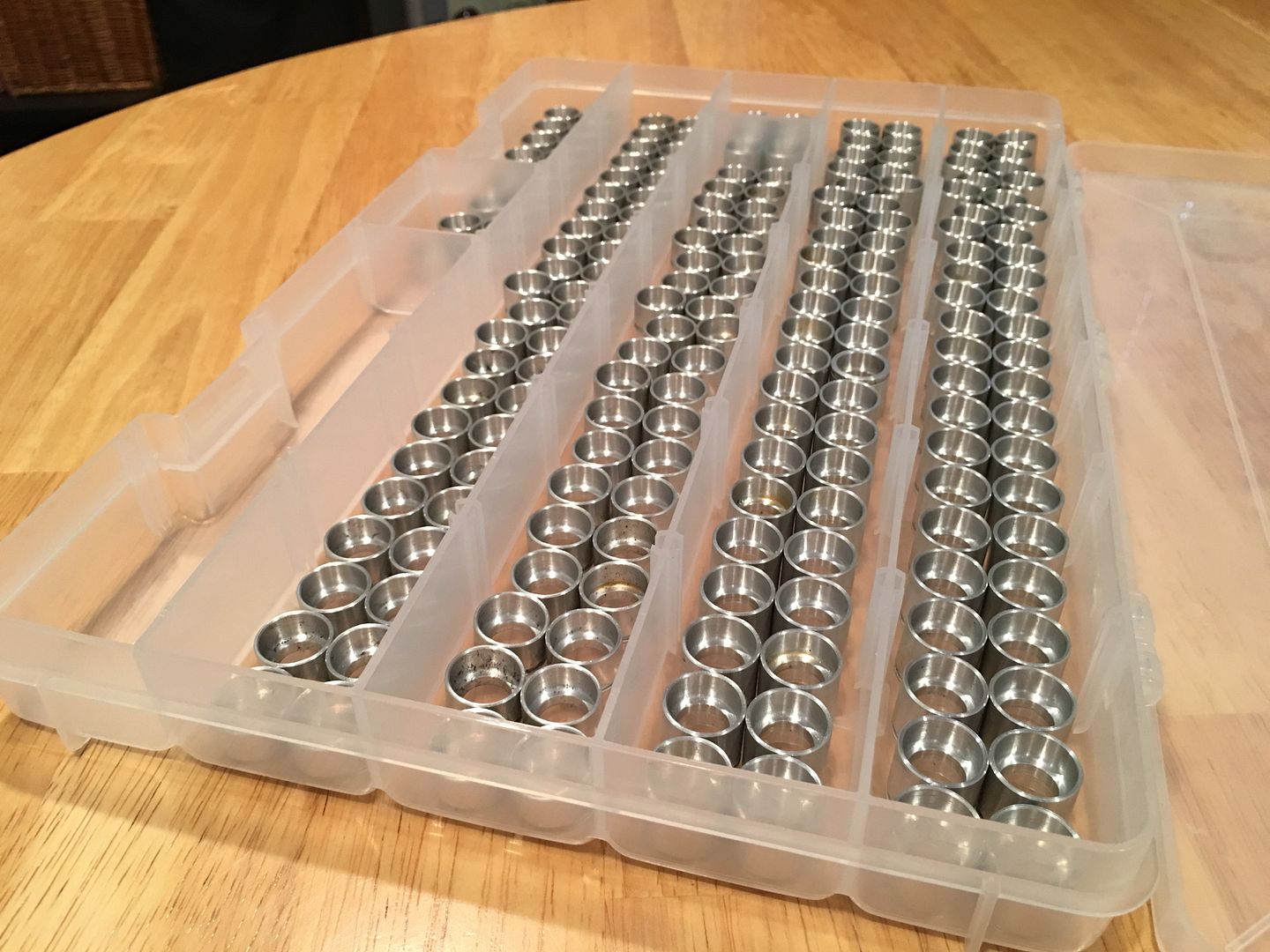

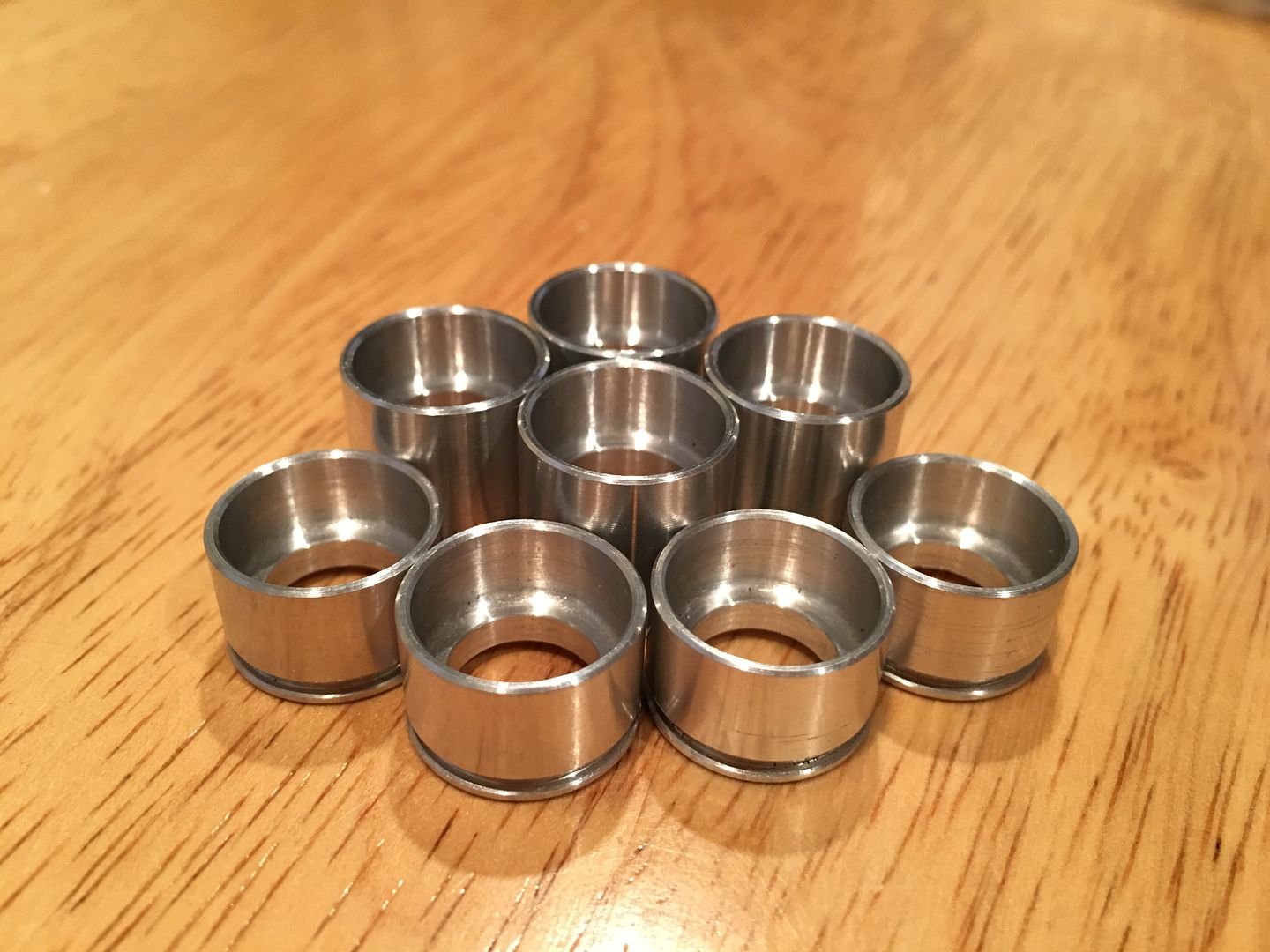

    Off to plating later this week! We're very close folks!!

    [​IMG]

    [​IMG]

  13. belalegosi
    Offline

    belalegosi Well-Known Member

    Likes Received:
    177
    Trophy Points:
    128
    What would the pricing be like?

    Aluminati likes this.
  14. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178
    They will sell for $59.99 a set, short or long.

    Ntxhuav_Khang likes this.
  15. Aluminati
    Offline

    Aluminati Vendor

    Likes Received:
    636
    Trophy Points:
    178

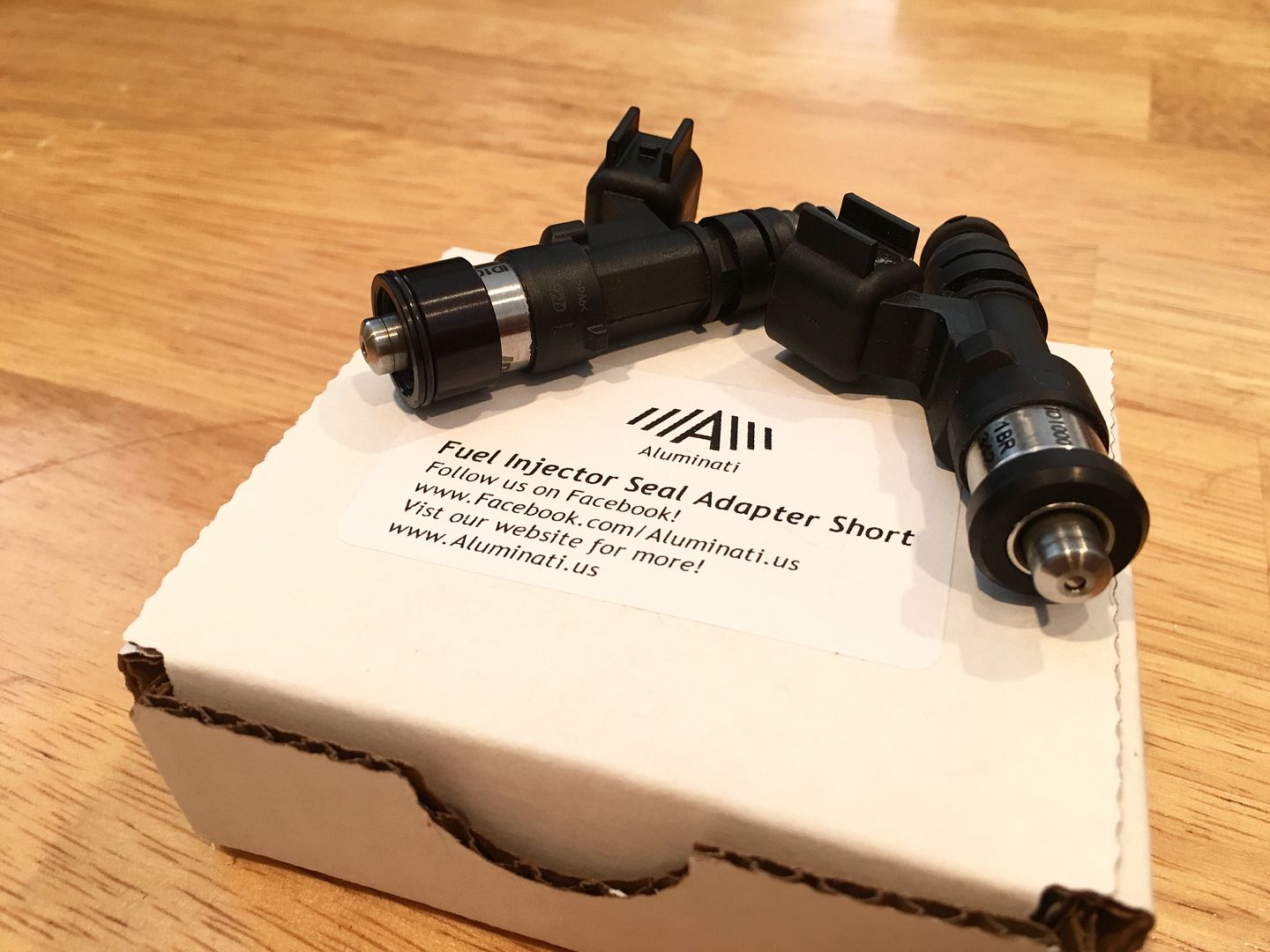

    Fuel Injector Seal Adapters are back from anodizing and ready to ship. These will be on the site in a week or so but for now send me a message or use the "Contact Us" form through my website.

    $59.99 for short and long versions.

    [​IMG]

  16. eterenity11
    Offline

    eterenity11 Well-Known Member

    Likes Received:
    20
    Trophy Points:
    203
    Nice. look awesome!!!!
