It aint gon fall apart no more; Welded cir-clip phase2 centre diff

Discussion in 'Modifications And Maintenance' started by FuJi K, Feb 21, 2011.

  1. FuJi K
    Offline

    FuJi K Well-Known Member

    Messages:
    3,850
    Likes Received:
    121
    Trophy Points:
    248
    Location:
    St. Paul, MN
    Here is a center diff taken out of a WRX tranny fitted with PPG straight cuts. I was doing the tranny swap because his OEM WRX tranny blew 3rd gear. The setup is a '02 WRX, TD05H 18G 7cm, EWG, E85, EJ257 shortblock swap.

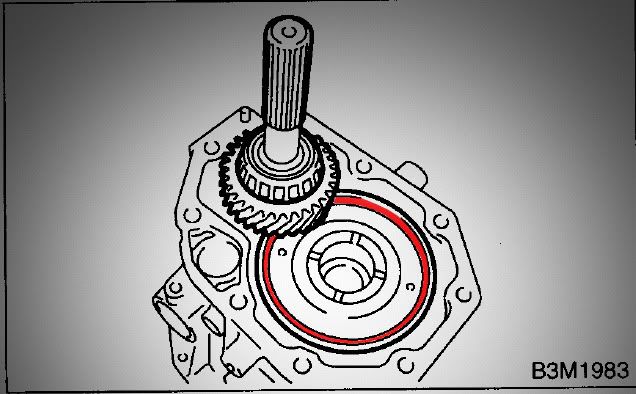

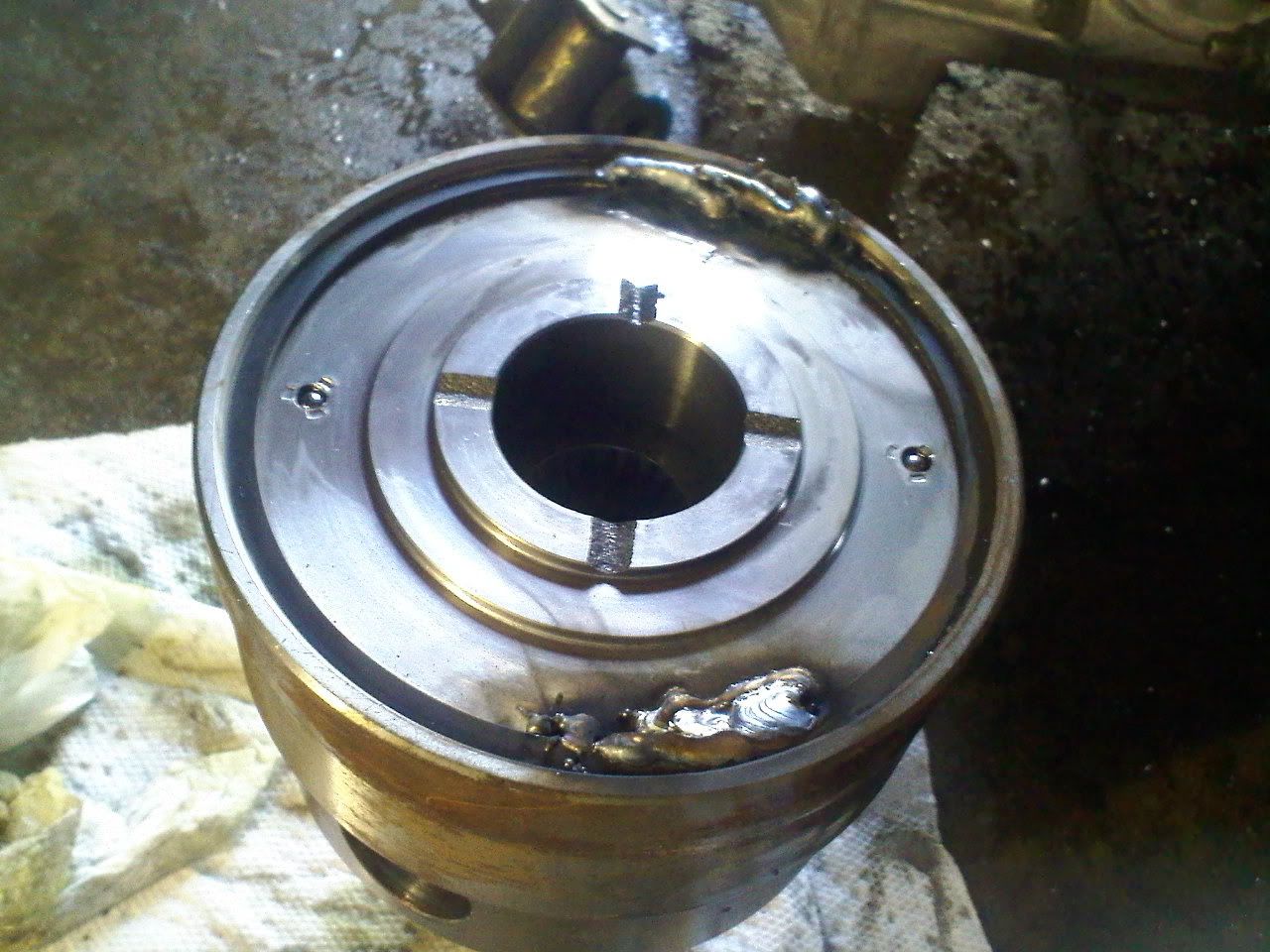

    As some of you may know, the center diff LOVES to fall apart. I have seen this in a '00 2.5RS, '00 Outback, and '03 WRX. To service the center diff you have to replace it. Subaru doesn't sell rebuild kits for the center diff. It's a sealed unit. Well.... then might as well weld the cir-clip that holds it together so you don't have to worry about it coming off ever again.

    [​IMG]

    [​IMG]

    FuJi K, Feb 21, 2011
    #1
  2. Aegis
    Offline

    Aegis TAKE IT!

    Messages:
    5,328
    Likes Received:
    558
    Trophy Points:
    348
    Gender:
    Female
    Location:
    サイレントヒル
    Nice job!

    Aegis, Feb 21, 2011
    #2
  3. Frogy
    Offline

    Frogy Well-Known Member

    Messages:
    1,165
    Likes Received:
    55
    Trophy Points:
    233
    Location:
    Eden Prairie
    I hear the imminent snapping of other drive components!

    Frogy, Feb 21, 2011
    #3
  4. herderek04
    Offline

    herderek04 Member

    Messages:
    35
    Likes Received:
    5
    Trophy Points:
    18
    Location:
    Maplewood
    Running good Fuji. And we almost welded the whole rear diff. Lol

    herderek04, Feb 21, 2011
    #4
  5. SvxAL
    Offline

    SvxAL Member

    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    26
    Location:
    Fargo ND
    agreed there's always a weak component good luck anyway!!! haha

    SvxAL, Feb 22, 2011
    #5
