my rally project

Discussion in 'Photo & Video Gallery' started by carl, Nov 14, 2008.

  1. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    We hit 20psi earlier in the day so I don't think so.

  2. dmoo
    Offline

    dmoo Well-Known Member

    Likes Received:
    27
    Trophy Points:
    113
    rally rally rally

    i want a ride in it with that much torque.

  3. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123

    In theory, at higher airflow rates the restrictor will cause lower pressure on the inducer side of the compressor, thus limiting the absolute pressure the compressor can make.

  4. dmoo
    Offline

    dmoo Well-Known Member

    Likes Received:
    27
    Trophy Points:
    113
    i was down there w him yesterday, there were a few boost leaks throughout the tune session. all the lines/hoses that hold PSI will be getting gone through and re-clamped at least once, maybe three times. and then see if it holds better.

  5. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    why would you do the work 3 times?! It's not a timing belt :laugh:

  6. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    or an engine install?

  7. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    btw, what's on the turbo inlet? Aluminum tape?

  8. curly2k3
    Offline

    curly2k3 Well-Known Member

    Likes Received:
    1,140
    Trophy Points:
    473
    probably that heat wrap

  9. Tim the Plumber
    Offline

    Tim the Plumber Well-Known Member

    Likes Received:
    101
    Trophy Points:
    148
    used Twice Bake Potato trays?

  10. curly2k3
    Offline

    curly2k3 Well-Known Member

    Likes Received:
    1,140
    Trophy Points:
    473
    delicious.

  11. dmoo
    Offline

    dmoo Well-Known Member

    Likes Received:
    27
    Trophy Points:
    113
    jb weld, consensus was it would hold psi better the AL tape

  12. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    in other words, Carl ran out of aluminum tape because he uses it on EVERYTHING.

  13. HiImBrian
    Offline

    HiImBrian Member

    Likes Received:
    0
    Trophy Points:
    26
    Just a curious thought...
    Have you thought about running with a block off plate instead of using your bov? I spoke with some guy a while back who builds rally cars (the guy who built that brick vinyl wrapped rs) and noticed he didn't have a bov on the swapped rs we were lookin at. He said it's to keep the boost up. I know this would be harder on the turbo, but have you ever thought about it?

  14. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    you talked to matt zawada - Bob's car was far more prepped than ours and it appeared their budget was much greater than ours. it's not worth it for us. any benefits are far outweighed by the downsides in our situation (not a lot of money). if someone brought me a vf39 in very good condition to put on before each race maybe, otherwise it's not worth the increase in chance of losing a turbo on stage.

  15. HiImBrian
    Offline

    HiImBrian Member

    Likes Received:
    0
    Trophy Points:
    26
    haha just thought I'd ask. I wasn't sure how "hardcore" you were lol. I'd like to drive in a car w/o a bov. I'd be curious to know how it drove.

  16. thunderdan1313
    Offline

    thunderdan1313 New Member

    Likes Received:
    0
    Trophy Points:
    0
    i do belive it should be like driving a car with a roots type supercharger. With out a bov u will have some boost all the time and no turbo lag(or not as much turbolag). superchager u have boost all the time under acceleration.
    But i could be wrong. never drove a car with out a bov before.

  17. Dynapar
    Offline

    Dynapar Well-Known Member

    Likes Received:
    30
    Trophy Points:
    358
    Its not that big of a difference for a street car. I ran one of my turbo setups w/o a BOV since I did not have the fittings to install the BOV I had.

    I would wager that the amount you would gain would be hardly noticeable since if you are winding out gears, when you shift you will be right back into peak boost territory and the turbo will spool up lightning fast anyway. You gain a couple HPs quicker and get to hear a cool sound come from the Turbo (see Topgear testing the P2 to hear the sound) but you will burn through turbos much faster due to added wear.

    I would just go anti-lag to keep your boost between gears. you will still eat turbos, but at least you get tons of boost on launch, and shoot fire. Or the other option is to run an automatic transmission. you dont have to let off to shift gears in the auto so you dont loose any boost.

  18. boomer
    Offline

    boomer Well-Known Member

    Likes Received:
    10
    Trophy Points:
    223
    Or an oil cooler.:biggrin:

  19. Shibbs
    Offline

    Shibbs The Daywalker

    Likes Received:
    74
    Trophy Points:
    283
    Even better option: Get the ECU patch for Flat-foot shifting and launch control. Then you'll lose nothing.

  20. Shibbs
    Offline

    Shibbs The Daywalker

    Likes Received:
    74
    Trophy Points:
    283
    Additionally - I don't see why you're so paranoid about running w/o a BOV. (NOT that you'd want to--a properly tuned one will work perfectly) Many turbo cars for many years were run without them. I had a friend with an 86 Shelby Charger. No diverter valve or BOV or bypass valve --whatever you wanna call it. There were 136,000+ miles on it, original turbo.

  21. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    Running without a BOV isn't going to hold more boost since the compressor wheel will grind to a halt as soon as the throttle is lifted. That bark you hear is case in point.

    A properly working and adjusted BOV will keep the rotating assembly moving in positive direction, and your recovery will be quicker. I noticed it with my GT2871. Upshifts at 4500 rpm with a properly working valve would zing up quicker than with a crappy slow reacting valve.


    With my new setup, I will be getting the lightest possible spring available.

  22. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    As far as coolers go, look into Laminova. Extremely compact water to oil coolers that you can put anywhere. I want one myself. Little hint.... they came on cop cars.

  23. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    the cooler thing is a running joke (ask dave about it for teh LOL) - we don't really need one. At least not yet

  24. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398
    EA82t subarus didn't have one either. But that was a low pressure system (6psi, IIRC). I suspect the same is true for the shelby charger. I wouldn't want to run more than about 8-10 without some way of releasing that pressure.

    and Dan (Pidde) is exactly right, if you don't release that pressure, it drastically slows the compressor wheel. so yea, maybe your intake charge is a bit more pressurized when you first open the throttle plate, but it's still going to take longer to re-spin up the impeller.

  25. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    The key lies within the application. There is a reason I put my BOV as close as possible to the TB, and have the shortest possible source line. Even cutting 15 in out of my source line on the old setup played significant dividends.

    Response is key, and placement can give you a little buffer. The longer space between your turbo and valve gives a little buffer, but improper source plumbing negates that buffer.

  26. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398
    Huh...cool. I think I learn something every time I read one of your posts or talk to you.

  27. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    Just trying to share some education with experience. Experience has cost a lot, unfortunately.


    I may actually try to change my BOV to a 45 degree angle with the piping. Same principle as a wastegate.

  28. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    well this isn't really work on the car but it is rally related. Over the weekend a tire rack for the service truck was constructed. A huge thanks to Matt (mlgez) for letting me use his awesome garage since I can't fit the truck into mine lol). Also thanks to Matt's friend Bob and Tall Dan for assisting in the construction

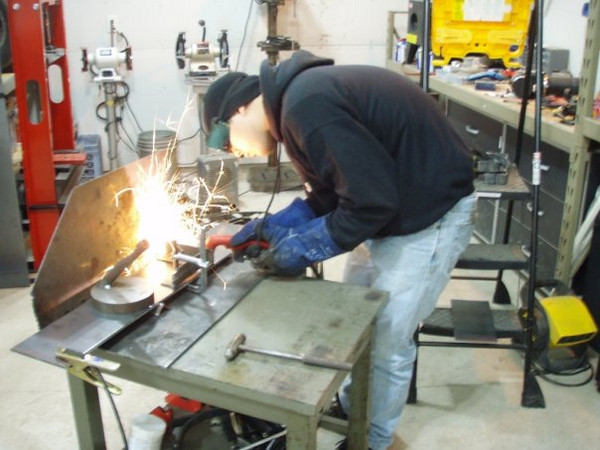

    me plasma cutting off a piece of 1/4" plate for the base
    [​IMG]

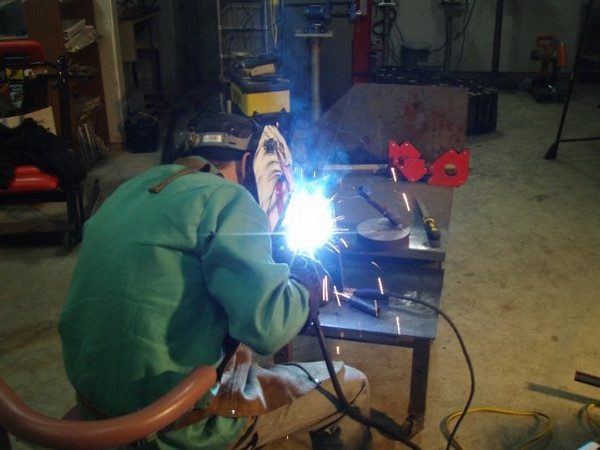

    Matt welding a tube onto a baseplate
    [​IMG]

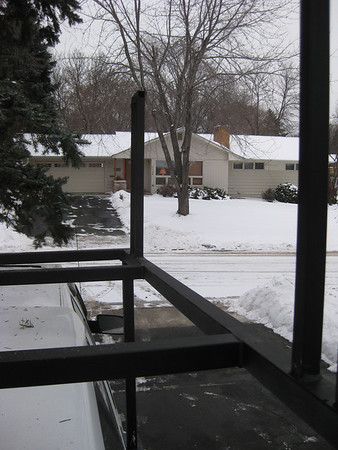

    The overall frame clamped together to get welded
    [​IMG]

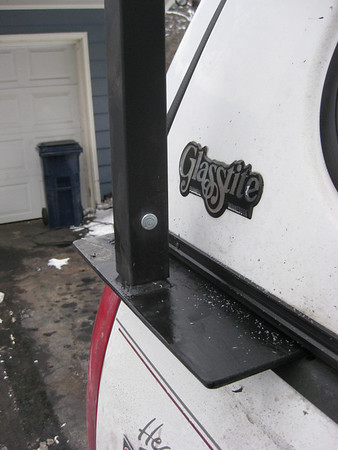

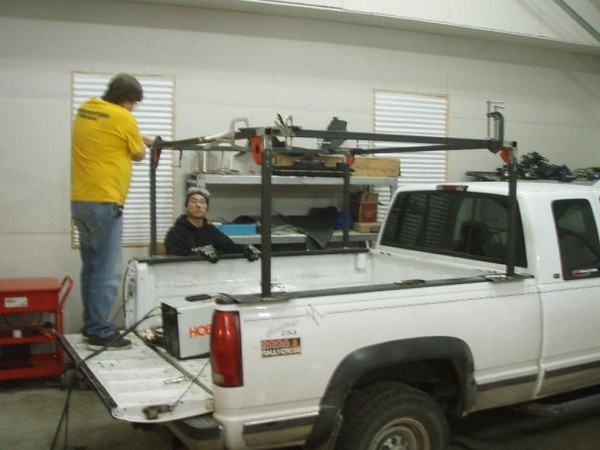

    The baseplates are 12"x6"x1/4" steel plates. They have studs welded to them and drop through the truck's bed rails. 8"x2"x1/4" backing plates go on the other side. There is a 1.25"x1.25"x6" post welded to the plates that the frame drops onto (so it can be removed easily).
    [​IMG]

    there are 2 rows for wheels, each row can hold 6. The tires sit in between two parallel bars. A tube is inserted down the hubs of the wheels and locks between the tall uprights pictured
    [​IMG]

    [​IMG]

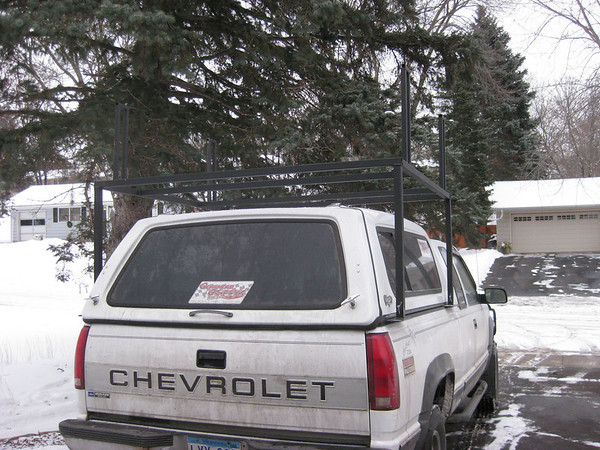

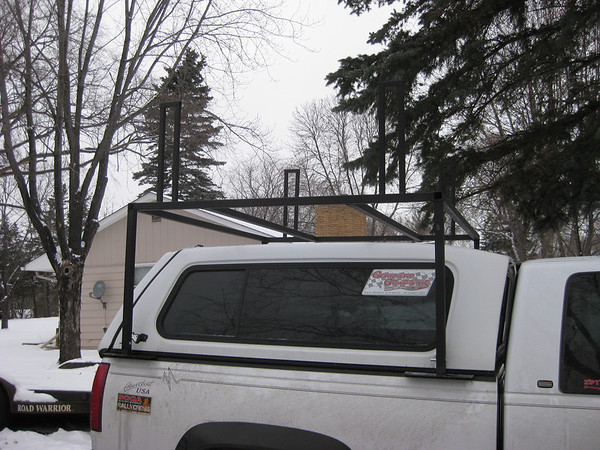

    [​IMG]

    It is more than strong enough to hold 12 wheels and gives us a good option to add sideboxes to it later for even more storage - not bad for $150 worth of metal and a weekend's work! I might add some gussets later just to make it a little more rigid.

  29. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    and an sti wing for downforce

  30. mlgez
    Offline

    mlgez Well-Known Member

    Likes Received:
    13
    Trophy Points:
    223
    LOL, that was discussed at some point last night. Looks good finished Carl. I had a good time working on it last night. Wish I could have helped today too but company for an early Christmas. Glad everything worked out and the shop was adequate.

  31. Dynapar
    Offline

    Dynapar Well-Known Member

    Likes Received:
    30
    Trophy Points:
    358
    Awesome tire rack! I like the design, very functional and simple. You gotta post pics of it all loaded up now.

  32. dmoo
    Offline

    dmoo Well-Known Member

    Likes Received:
    27
    Trophy Points:
    113
    carl, we need a piece of this
    [​IMG]

    to stand on top between the 2 different storage areas

    thats what i came up with following you home

  33. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    no, we need this

    [​IMG]

  34. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    Looks good. I want to see it full of tires though....

  35. petrakov08
    Offline

    petrakov08 Well-Known Member

    Likes Received:
    97
    Trophy Points:
    213

    :biggrin:

  36. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    too much work lol. I did a quick and dirty FEA on it to see if I was in the ballpark for holding 12 wheels/tires and it appears to be more than adequate

  37. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    What was your Factor of Safety? And what directions did you test it?

  38. carl
    Offline

    carl Well-Known Member

    Likes Received:
    51
    Trophy Points:
    183
    I taught myself Mechanica in like 3 hours so it really wasn't very detailed. If I had ANSYS or Cosmos I would have done more than a static loading.

  39. piddster
    Offline

    piddster Lone Wolf

    Likes Received:
    15
    Trophy Points:
    123
    Lol, fair enough. The fact that you did it means its probably overbuilt.

  40. s1ngletracker
    Offline

    s1ngletracker Well-Known Member

    Likes Received:
    2
    Trophy Points:
    103
    rally car is looking good. Hope to see you guys out racing in 2010
