NF: Project Dark Knight

Discussion in 'Photo & Video Gallery' started by Nuke, Sep 18, 2011.

  1. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    Maybe I'll just part it out...

  2. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,955
    Trophy Points:
    573
    dibs....ikidz


    And i vote "NO" to that statement. You'll have it back up and running in no time! Patience young grasshopper, patience.

  3. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    I think it's all just too much.

  4. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,955
    Trophy Points:
    573
    I know the feeling brotha!:( After i put all of the time, money, and effort into my WRX. And then the flood came and did a number to the car and my mental status. But ultimately, i was successful in bringing her back from the dead and it was a HUGE mountain to climb(completely gutting it and redoing everything). I know it's a bit overwhelming right now, but you can do it with our help!

    I know the worst part is that you've barely been able to enjoy it and now this happens. I also only had everything done and my new motor in the car for 10,ooo miles when my situation happened and hardly had a chance to enjoy it, so i truly know how you're feeling. You'll get through it tho, and we're here for ya!

  5. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    Yeah, yours was way worse.

  6. Nater
    Offline

    Nater Member

    Likes Received:
    42
    Trophy Points:
    38
    xluben, I had the same problem. I managed to get out of it. I'm driving the car now and I have no worries with a bottom end built and it runs so well. You get the opportunity to rebuild it now to get it more HP 450 range or more! I was so pissed because i had a day of driving on mine before **** went south.... I'd say you'll be able to figure stuff out... Time will tell!

  7. ofspunk7
    Offline

    ofspunk7 Well-Known Member

    Likes Received:
    1,147
    Trophy Points:
    298
    Wow. Didn't expect that from you.

  8. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,955
    Trophy Points:
    573
    It was as a whole, but it doesn't mean that your situation doesn't suck just as bad. When i walked out and saw that the water was up over my garage door handle, my stomach sunk just like yours did when you saw that compression test result. It was difficult to deal with, but time heals. Once the initial shock is over with, things will get better! If you need me to come over and turn wrenches to help you get it back in order you just let me know! I'd be there in a second to help you out! Or if you need me to take you for some Chipotle or somethin...you just lmk.

    Well if someone just kicked you in tha bawlz....you'd feel this way too. It sucks to have that defeated feeling and all you want to do initially is stick your head in a hole in the ground and never come up for air. But it gets better...i promise.

  9. ofspunk7
    Offline

    ofspunk7 Well-Known Member

    Likes Received:
    1,147
    Trophy Points:
    298
    Oh I totally understand why he feels like he does. That is not what I was questioning. Ben just always seemed to know what the risks were and what lay ahead.... for example the extra engine sitting in his garage. I just wasn't sure what the progress on the "backup" build was.

  10. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,955
    Trophy Points:
    573
    He definitely knew the risks the same as we all did. It still doesn't ease the "shock factor", and i'm sure that he wasn't expecting it to happen this soon.

  11. Nater
    Offline

    Nater Member

    Likes Received:
    42
    Trophy Points:
    38
    There are risks every day you walking to your car, sleeping even. **** happens, its who gets it figured out afterwords that prevails :D.

  12. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    Hey I have the same compression tester. If you do the rebuild and install yourself lmk if you need a hand.

    good luck, bud.

  13. SurlyOldManMN
    Offline

    SurlyOldManMN Omdat fok jou Staff Member

    Likes Received:
    1,854
    Trophy Points:
    348
    I am going to be seriously pissed off if I get a cracked ringland walking to my car...


    I'm borderline worthless in the garage, but I'm capable of following directions if/when you need a hand.

  14. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    I walked under a really big sign they were hanging on the front of a store today. I was a bit scared honestly.

    It's Nuke's tester.

  15. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    *runs home to see if gauge is still there...

    Damnit Nuke.

    tangledupinblu likes this.
  16. SubieFinest
    Offline

    SubieFinest Member

    Likes Received:
    16
    Trophy Points:
    28
    lol :rolleyes:

  17. Hagadorn
    Offline

    Hagadorn Member

    Likes Received:
    46
    Trophy Points:
    38
    Just remember when your building collapses you need to rebuild that steal, put up them beams, re weld them seams and build that B**** sky high!! Best of luck on what ever rout you end up going.

  18. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    *sai*

  19. phi11
    Offline

    phi11 Well-Known Member

    Likes Received:
    883
    Trophy Points:
    298
    pistions gonna piss

  20. 03subyR
    Offline

    03subyR Well-Known Member

    Likes Received:
    86
    Trophy Points:
    233
    Wow, that sucks man. I really thought your block is going to last for a while. I hope you have another car to drive while this gets block installed. Good luck I hope everything works out good for you at the end.

  21. zisson33
    Offline

    zisson33 Well-Known Member

    Likes Received:
    19
    Trophy Points:
    103
    Damn dude... I know how you feel. I had to go through it last year. Hang in there. Like idget said, if you need a hand just holler. I have an Xterra that I purchased while waiting for my motor rebuild to be completed. If you are interested I would take off $500.

    Did you stop driving right away? ...to minimize the scoring. I didn't catch mine immediately. Some boring needed to happen. If you decide to go big, you could sleeve it. :)

  22. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    Yeah, I stopped driving it immediately after figuring it out.

  23. zisson33
    Offline

    zisson33 Well-Known Member

    Likes Received:
    19
    Trophy Points:
    103
    What are you thinking you're gonna do?

  24. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    Ben and I have a meeting tonight...sigh...
    Will give you guys update

  25. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    I think we might have to part it out...

  26. ryjacobs
    Offline

    ryjacobs Well-Known Member

    Likes Received:
    742
    Trophy Points:
    298
  27. SurlyOldManMN
    Offline

    SurlyOldManMN Omdat fok jou Staff Member

    Likes Received:
    1,854
    Trophy Points:
    348
    well piss.

  28. ofspunk7
    Offline

    ofspunk7 Well-Known Member

    Likes Received:
    1,147
    Trophy Points:
    298

    Oh no. That sucks.

  29. Tash
    Offline

    Tash Well-Known Member

    Likes Received:
    775
    Trophy Points:
    198
    There has to be other options!

  30. Nater
    Offline

    Nater Member

    Likes Received:
    42
    Trophy Points:
    38
    Why would this be?

  31. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    Hm...maybe it won't be so depressing after all...

  32. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    If Ben decides that parts may have to come off, then we'll just start tearing it apart.

  33. FuJi K
    Offline

    FuJi K Well-Known Member

    Likes Received:
    121
    Trophy Points:
    248
    that looks like my comp tester. been lost forever!

  34. Nuke
    Offline

    Nuke Well-Known Member

    Likes Received:
    814
    Trophy Points:
    348
    It's yours, was yours to be exact...but since I'm always being an ass, I decided to write my name on it somewhere and now it's mine!!!!

    tangledupinblu and OngbakLGT like this.
  35. SurlyOldManMN
    Offline

    SurlyOldManMN Omdat fok jou Staff Member

    Likes Received:
    1,854
    Trophy Points:
    348
    INFECTED.

  36. Bnuts01
    Offline

    Bnuts01 Well-Known Member

    Likes Received:
    87
    Trophy Points:
    113
    Sad :(

  37. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    OK, enough is enough. The car is not being parted out or sold. In fact, it is already back on the road! Thanks to the help of the NF crew, the motor has been pulled and the shortblock was swapped for a built block that I purchased a few months ago. Without your help it would not have been possible.

    I took a bunch of photos throughout the swap process. Enjoy!

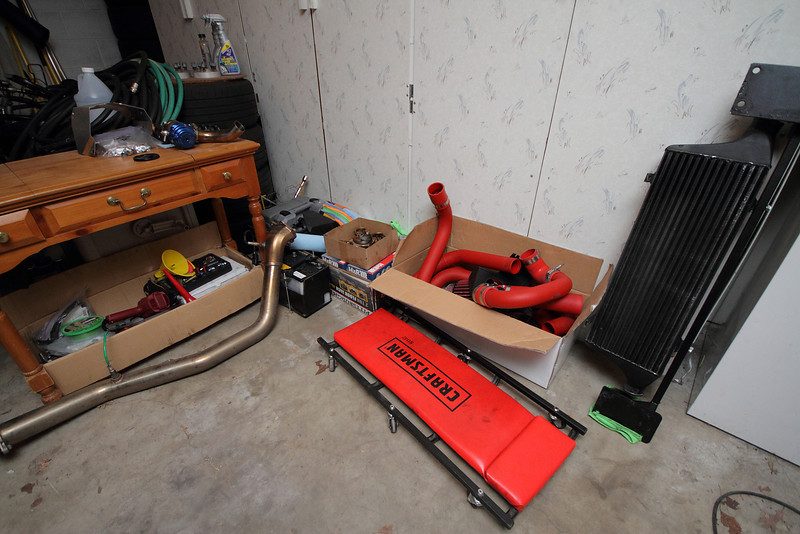

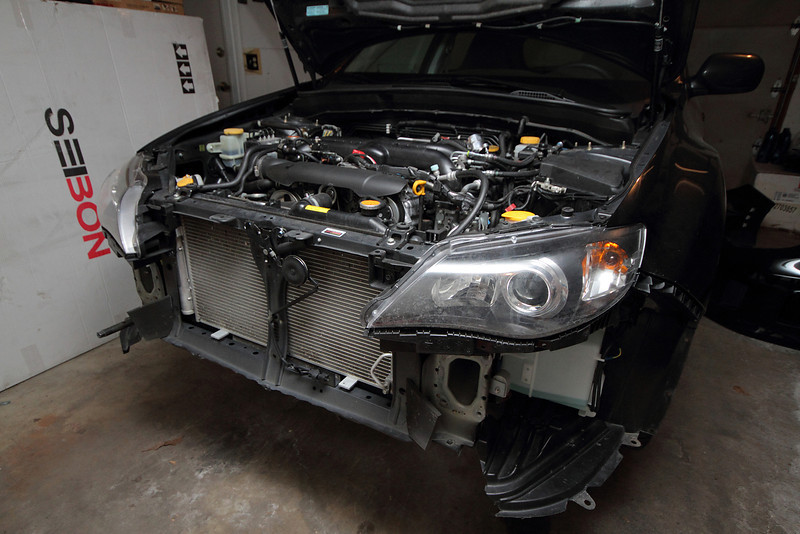

    Pulled the bumper, front mount intercooler, intake, battery, downpipe, and external wastegate.

    [​IMG]

    [​IMG]

    [​IMG]

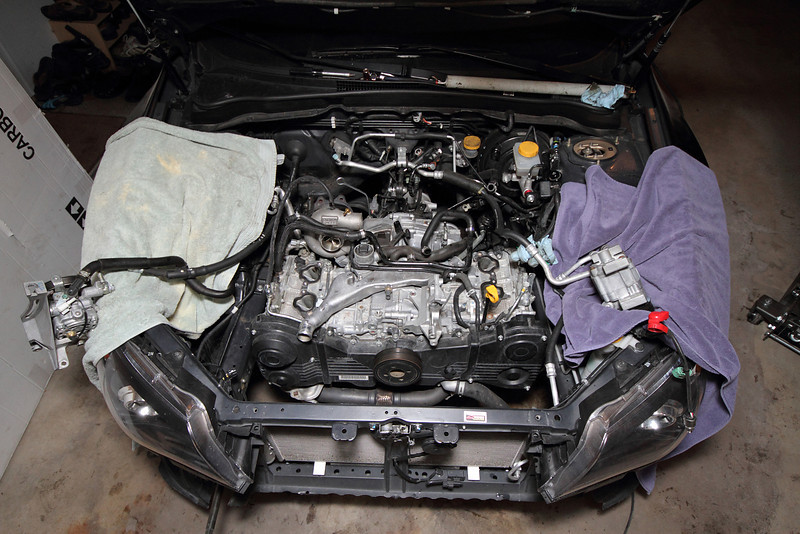

    Removed the radiator, intake manifold, AC compressor, alternator, power steering pump.

    [​IMG]

    [​IMG]

    [​IMG]

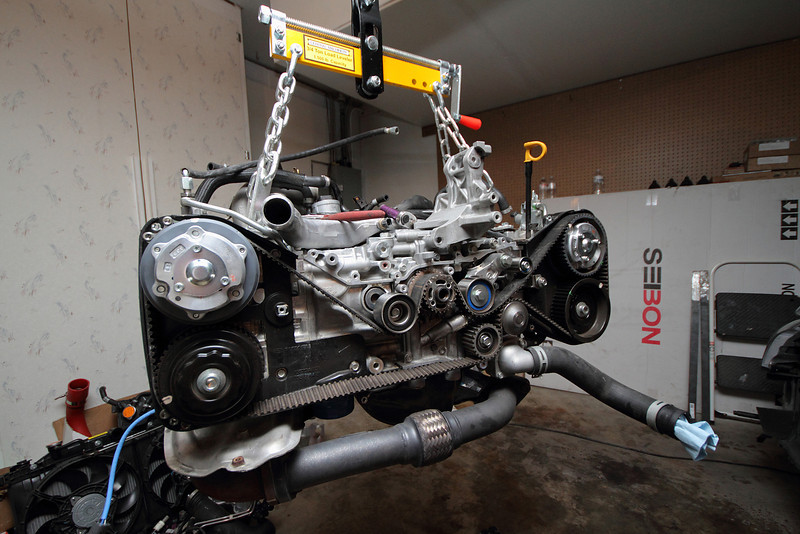

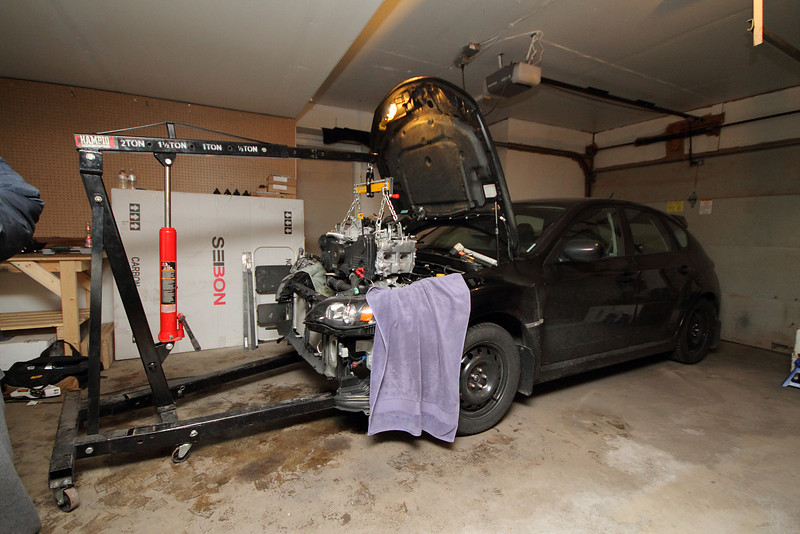

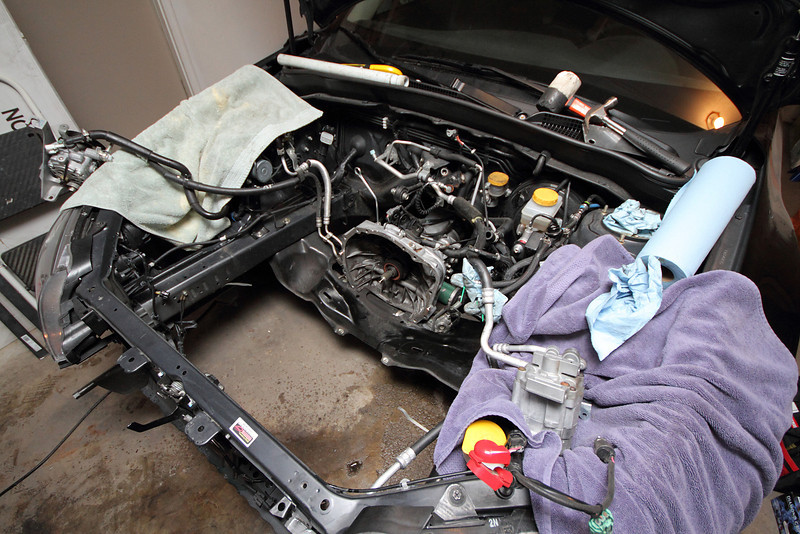

    Motor coming out!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  38. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    Removed TGV's for deletes.

    [​IMG]

    Removed turbo and exhaust manifold.

    [​IMG]

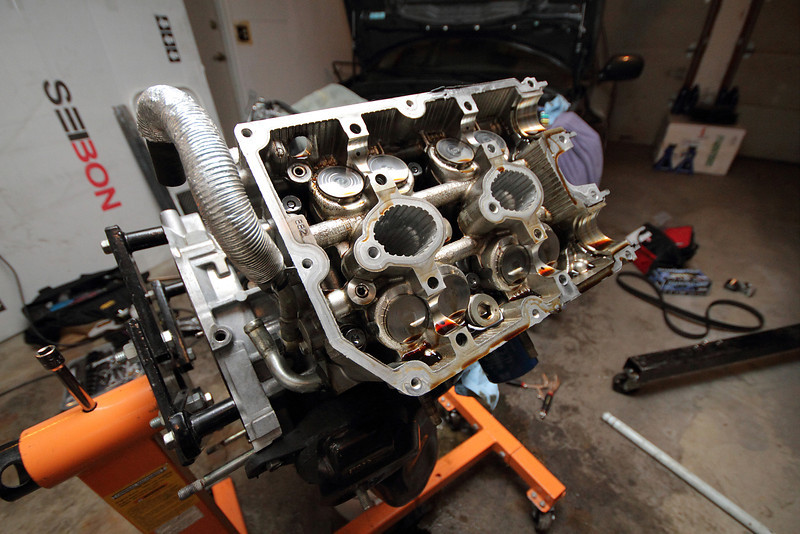

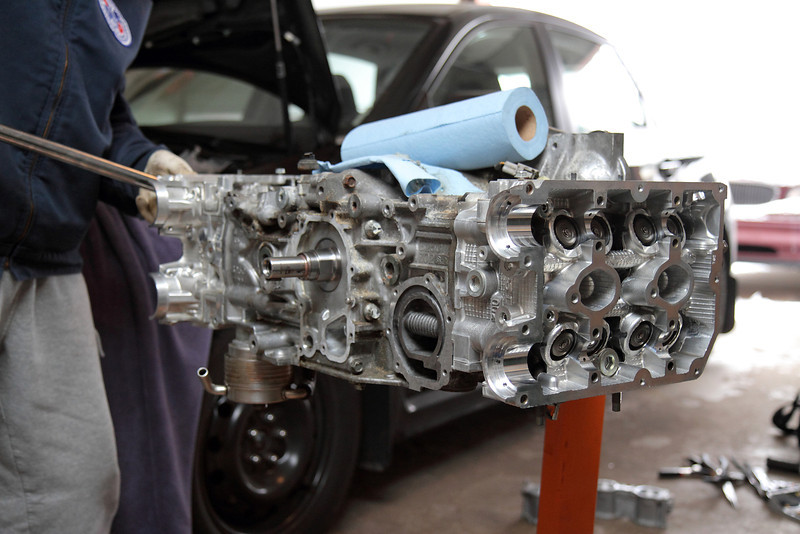

    Pulling the heads.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

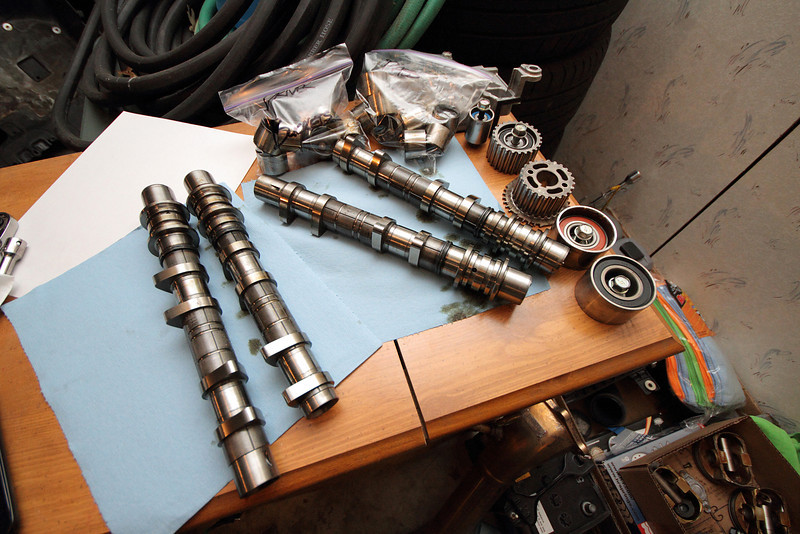

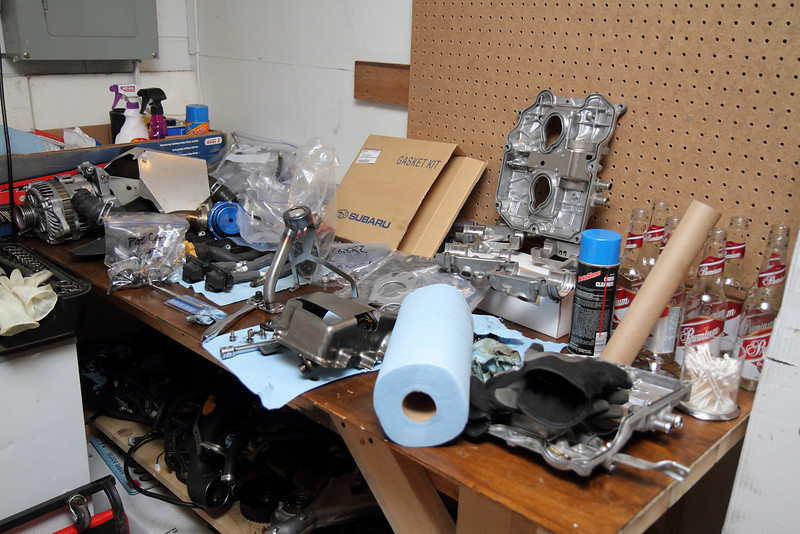

    Parts are starting to pile up.

    [​IMG]

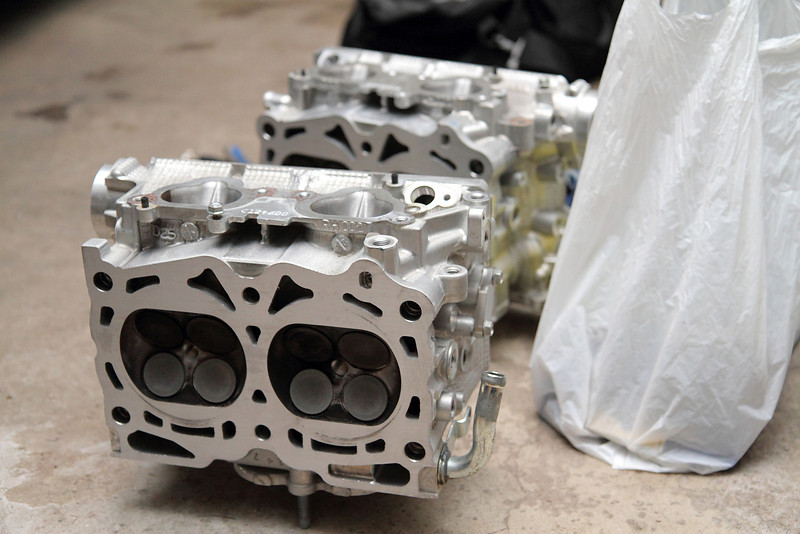

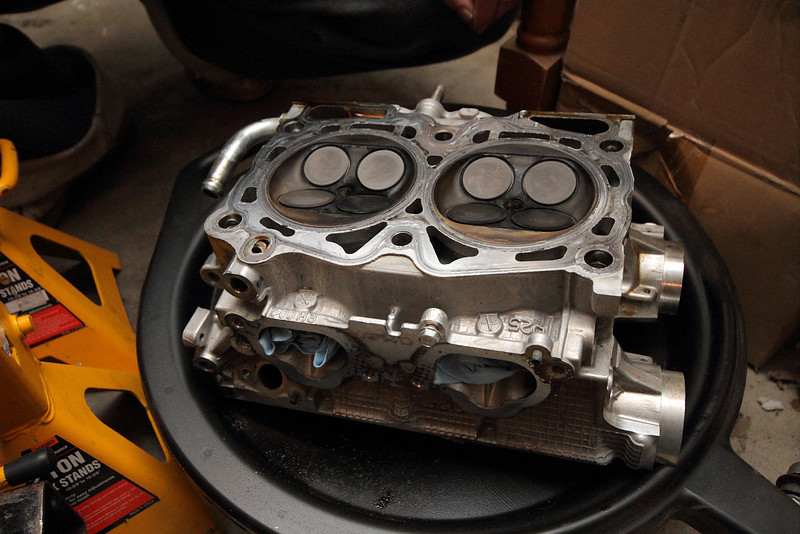

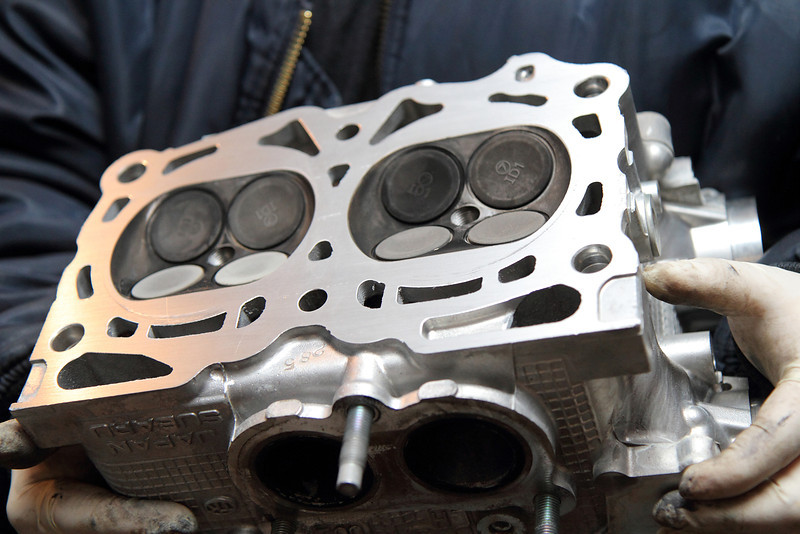

    Heads hot tanked and decked.

    [​IMG]

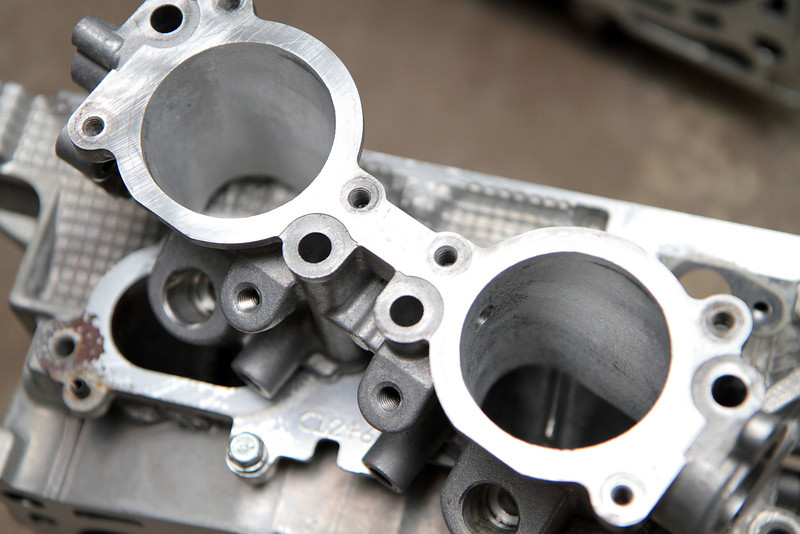

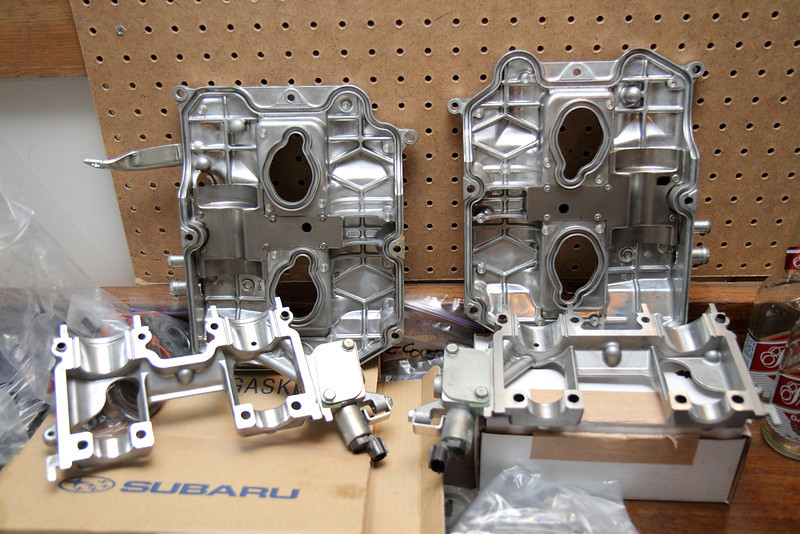

    TGV's deleted.

    [​IMG]

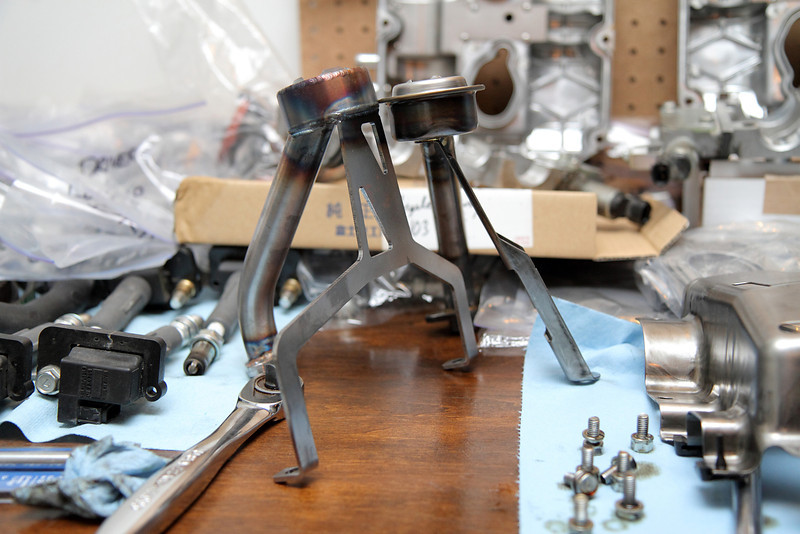

    Covert oil pickup.

    [​IMG]

  39. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248

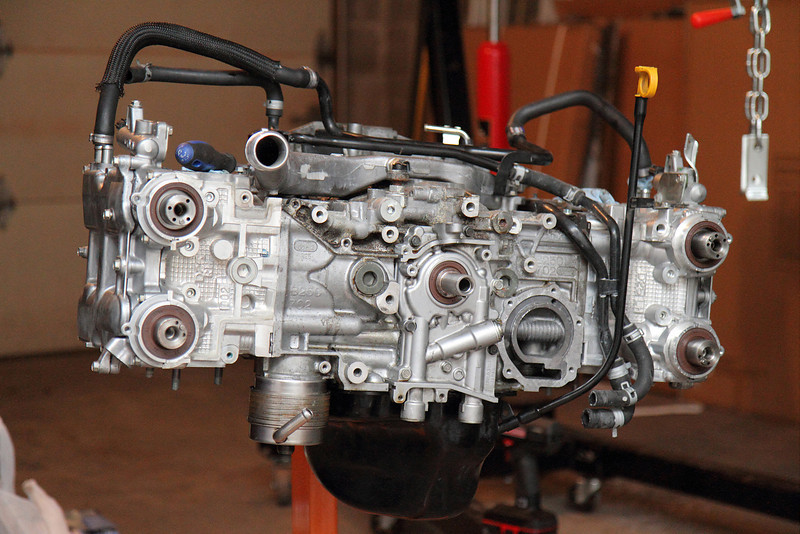

    Valve covers cleaned up.

    [​IMG]

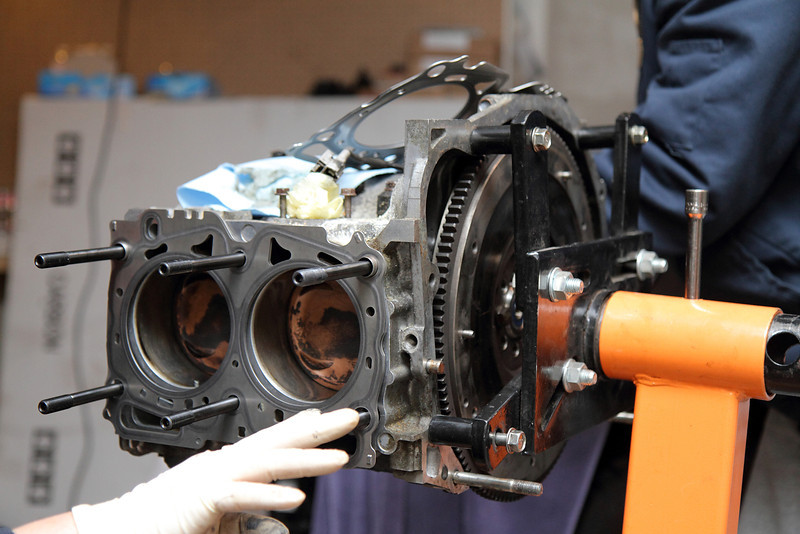

    Head studs going in.

    [​IMG]

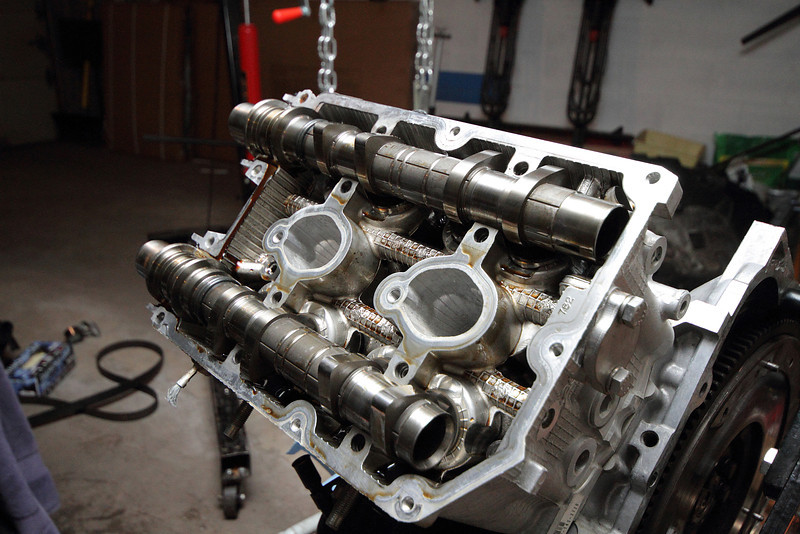

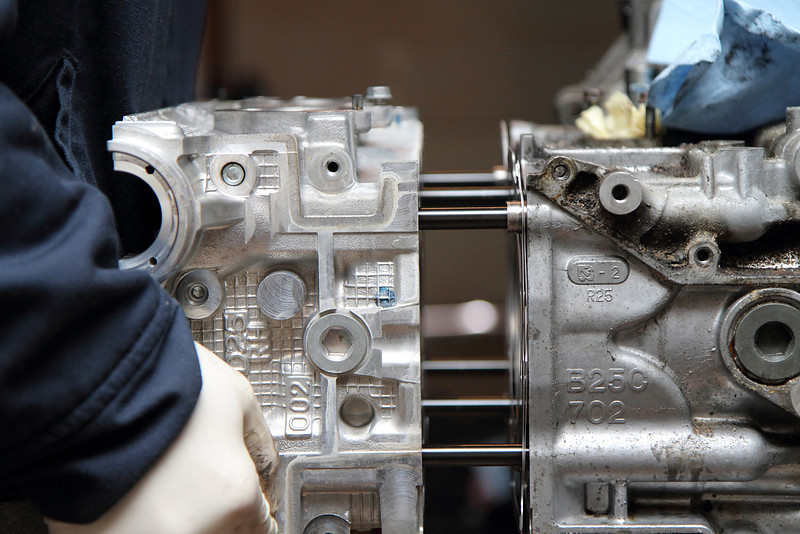

    Heads going on.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

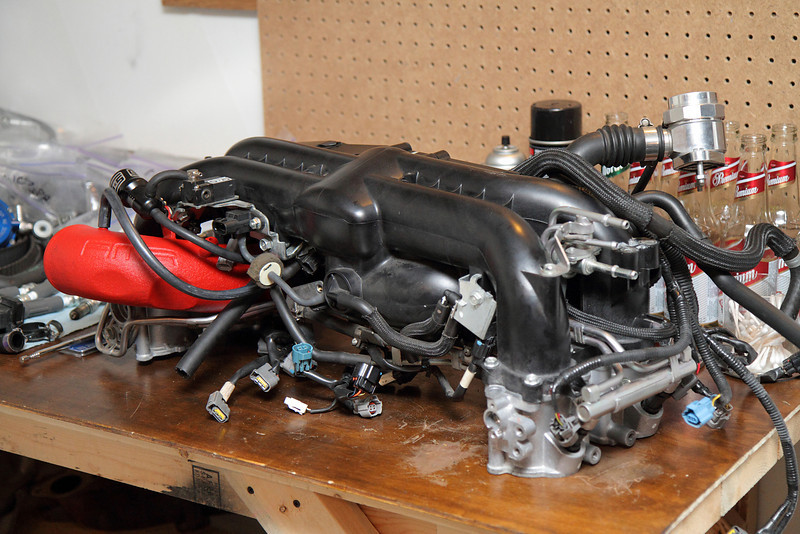

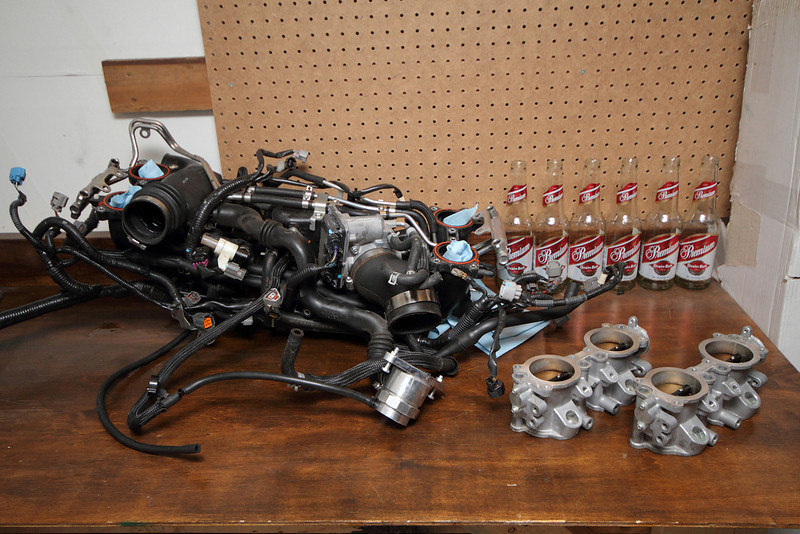

    Working on the manifold, TGV's, and inlet.

    [​IMG]

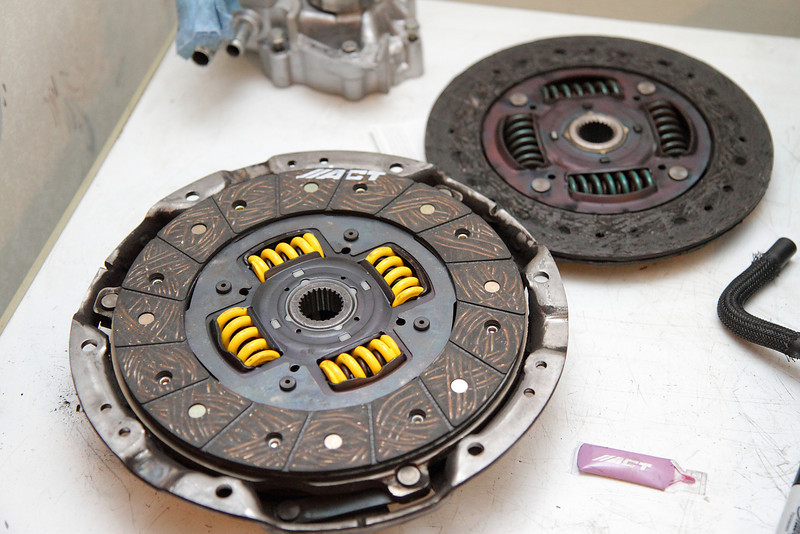

    ACT clutch disc.

    [​IMG]

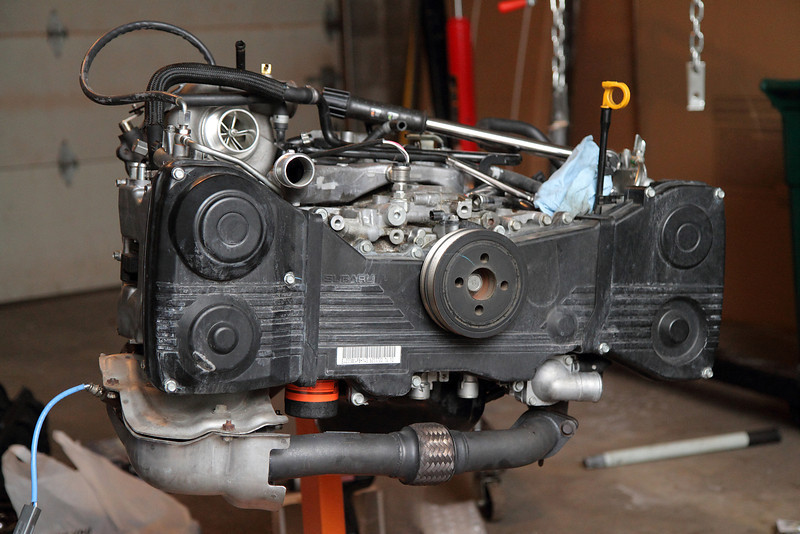

    Turbo and exhaust manifold on. Timing belt going on.

    [​IMG]

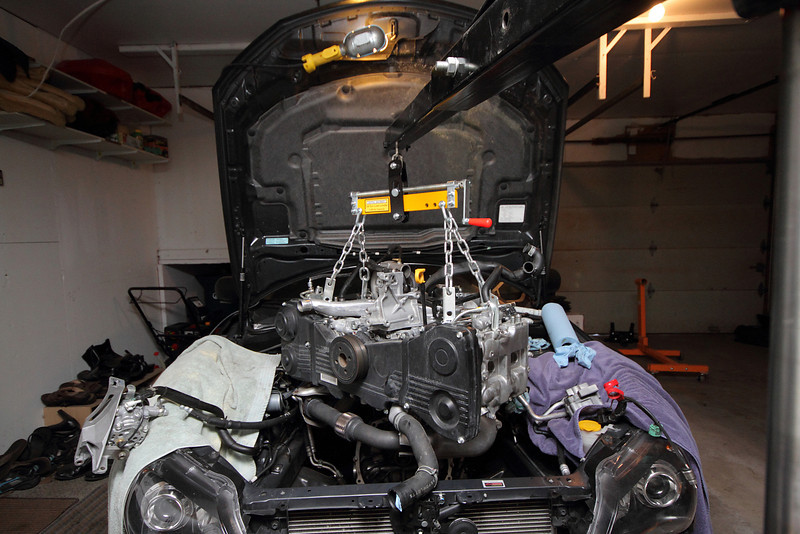

    Completed long block going back in.

    [​IMG]

  40. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248

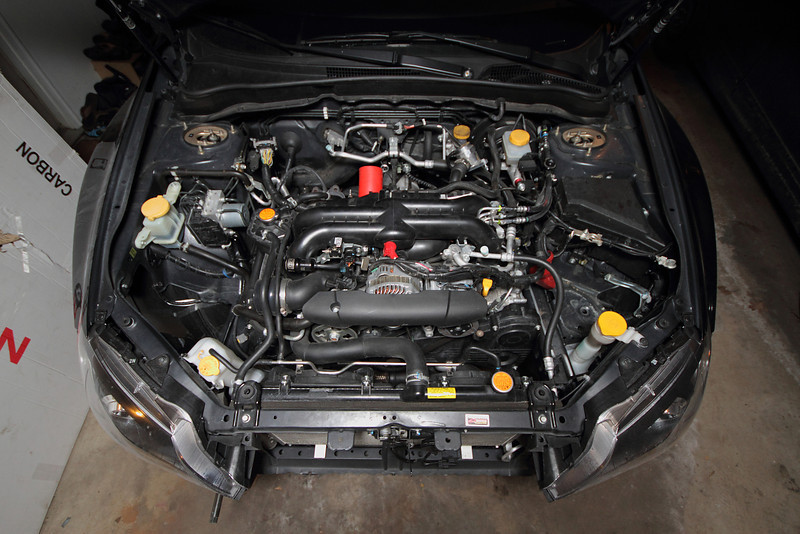

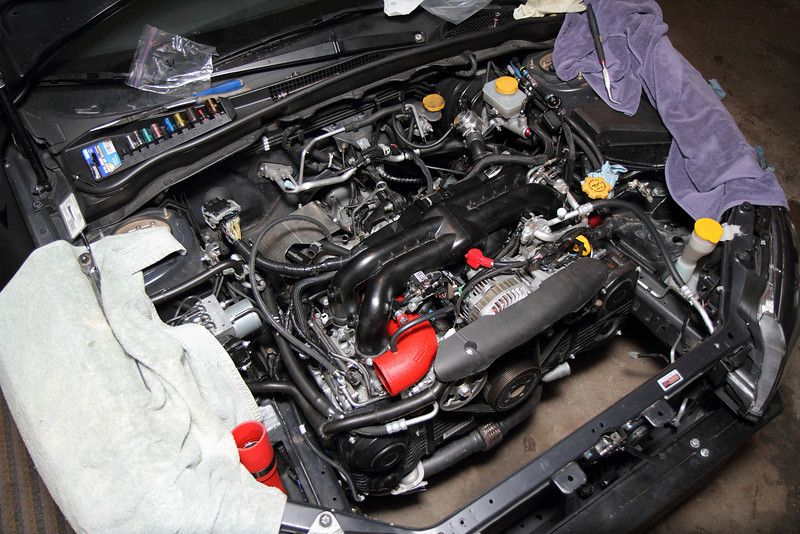

    Motor in and manifold installed.

    [​IMG]

    Finished connecting manifold and installed power steering, AC, and alternator.

    [​IMG]

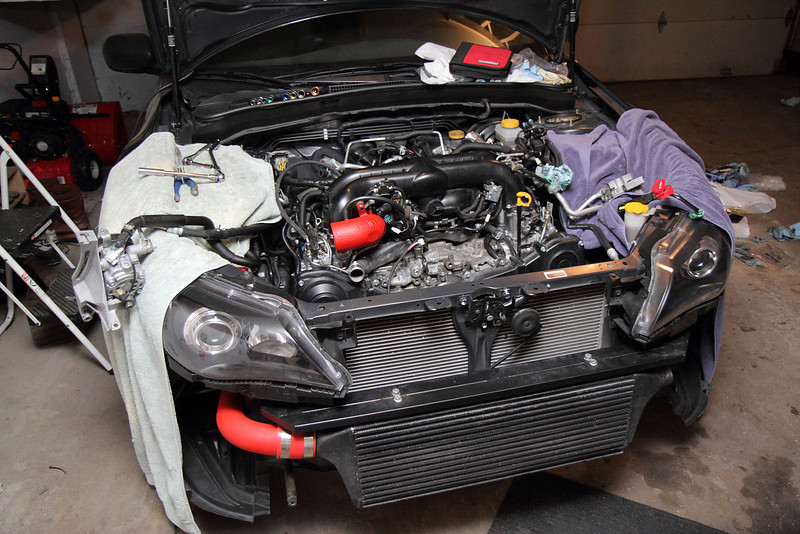

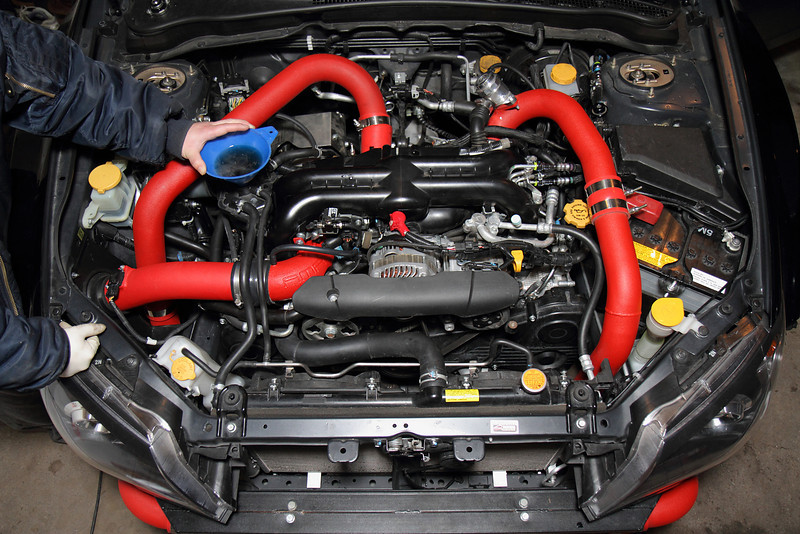

    Battery, intake and FMIC installed. Added oil and coolant.

    [​IMG]

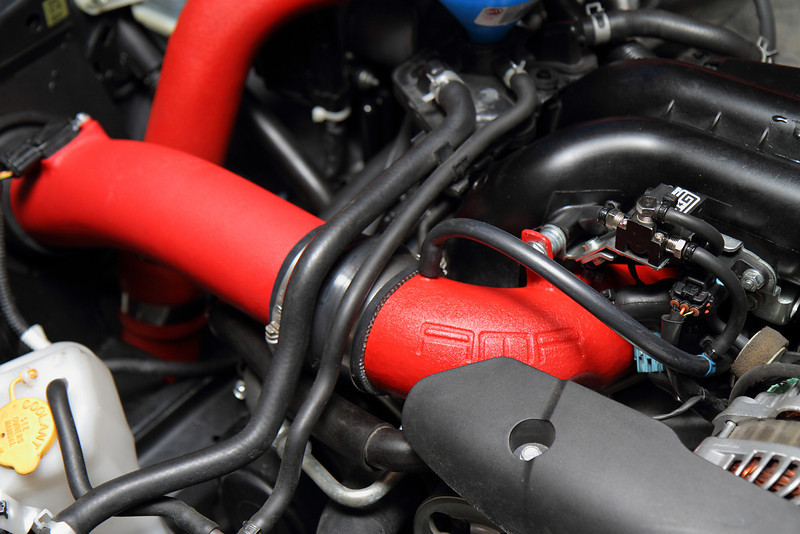

    AMR 3" inlet and KSTech 73mm intake.

    [​IMG]

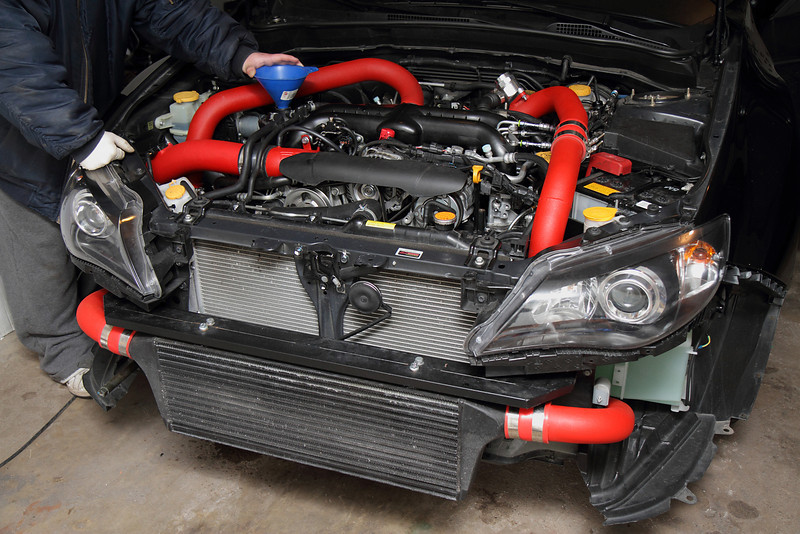

    Burping the coolant system.

    [​IMG]

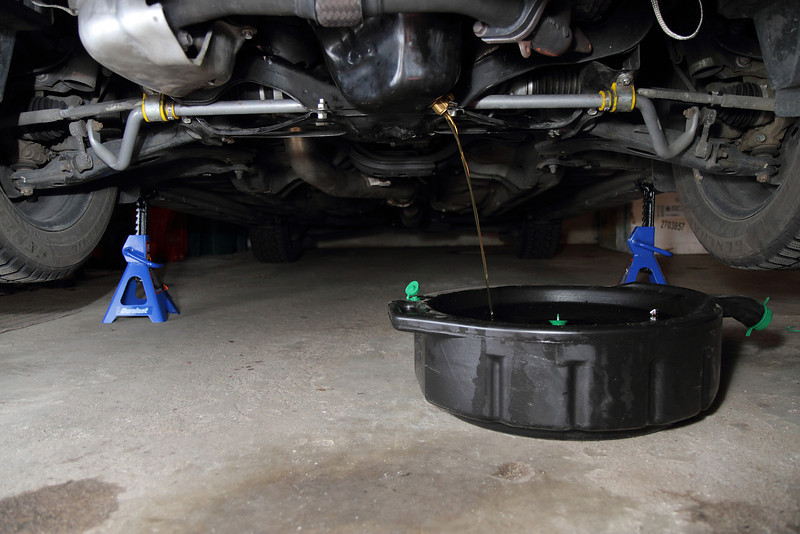

    Draining oil.

    [​IMG]

    Front bumper intalled:

    [​IMG]

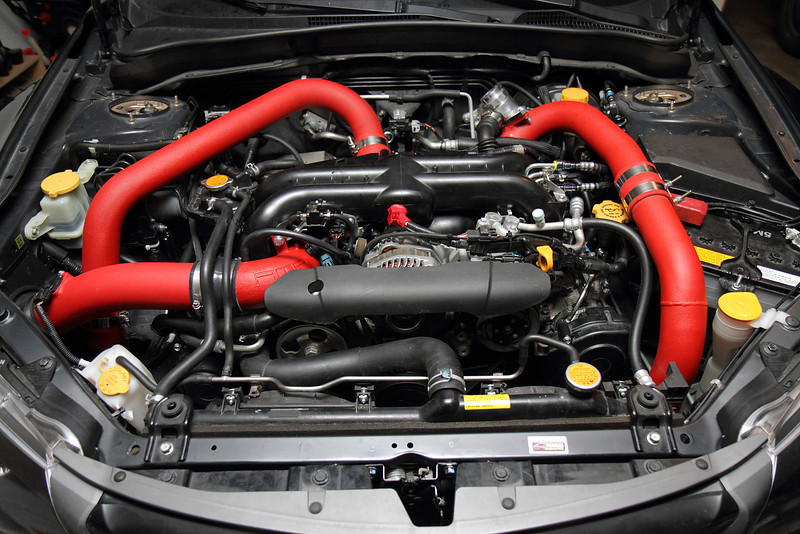

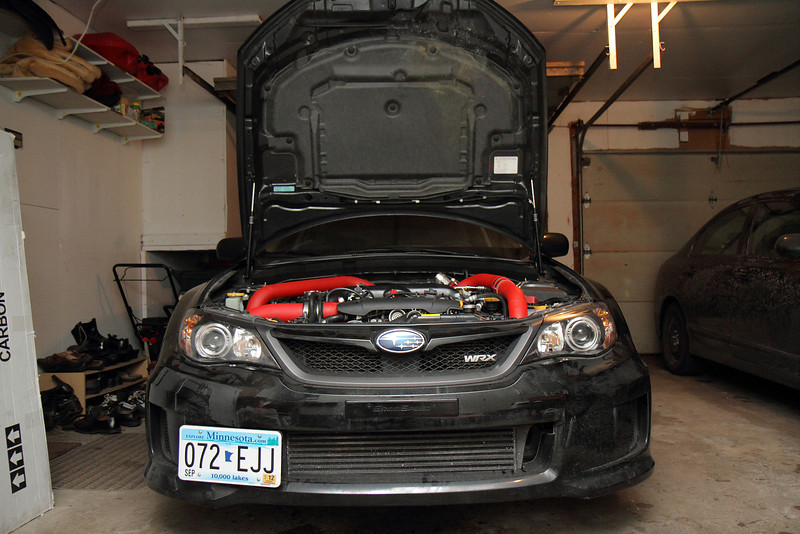

    Complete!

    [​IMG]

  41. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    More photos can be found here:

    http://www.benjohnsonphotography.com/Cars/2011-WRX-Motor-Swap/21621382_LFVxKG

    Motor Info:
    • 2004-05 STI Case (Used 5k Miles)
    • 2010 STI Crank Balanced (Used 5k Miles)
    • 2005 STI Rods Balanced (Used 5k Miles)
    • JE Billet Pistons (Std Bore and Compression) (Used 5k Miles)
    • ACL Race Series Main Bearings (Used 5k Miles)
    • ACL Race Series Rod Bearings (Used 5k Miles)
    • MAP Head Studs (New)
    • Covert Oil Pickup (New)
    • AMR 3" Hard Inlet (New)
    • ACT Clutch Disc (New)
    • Subaru OEM Gasket Set (New)
    • TGV Deletes (Welded/Ported) (Swapped from my Original Motor)
    • Stock Heads (Swapped from my Original Motor)
    • All other accessories/hoses/pumps/etc (Swapped from my Original Motor)
    Sorry for pulling everyone's leg for so long. I really didn't expect to get taken seriously. Thanks to everyone that offered support, and even help! I really do appreciate. And thanks again to the NF crew. You guys do great work! I love the car!

  42. SurlyOldManMN
    Offline

    SurlyOldManMN Omdat fok jou Staff Member

    Likes Received:
    1,854
    Trophy Points:
    348
    FTMFW.

  43. ofspunk7
    Offline

    ofspunk7 Well-Known Member

    Likes Received:
    1,147
    Trophy Points:
    298
    LoL, glad to hear man.

  44. SurlyOldManMN
    Offline

    SurlyOldManMN Omdat fok jou Staff Member

    Likes Received:
    1,854
    Trophy Points:
    348
    Wait... so the engine DIDN'T crap out?


    B&.

  45. xluben
    Offline

    xluben Well-Known Member

    Likes Received:
    2,284
    Trophy Points:
    248
    No, the engine did crap out. Swapped in a new one. Haven't pulled apart the other shortblock yet.
