Small engine carnage

Discussion in 'Off-Topic' started by Chux, Jan 28, 2023.

  1. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398
    Backstory. I have a ~1990 Snapper lawn tractor. Has 44" mower deck and 42" 2 stage snowblower attachments, 18hp horizontally opposed 2 cylinder Kohler engine and hydrostatic transmission. Works great.

    This winter, the throttle cable froze. In trying to free it up....I broke it. So I grabbed a ziptie, and held the throttle open about where it was at full throttle with the cable. Didn't take me long to realize it was revving higher, but I was enjoying the extra power.


    Last week, it was running strong, then there was a nasty clunk and it coasted to a stop.

    Last night I got far enough into the engine to identify what happened.
    [​IMG]
    2023-01-28_02-35-58
    by Numbchux, on Flickr

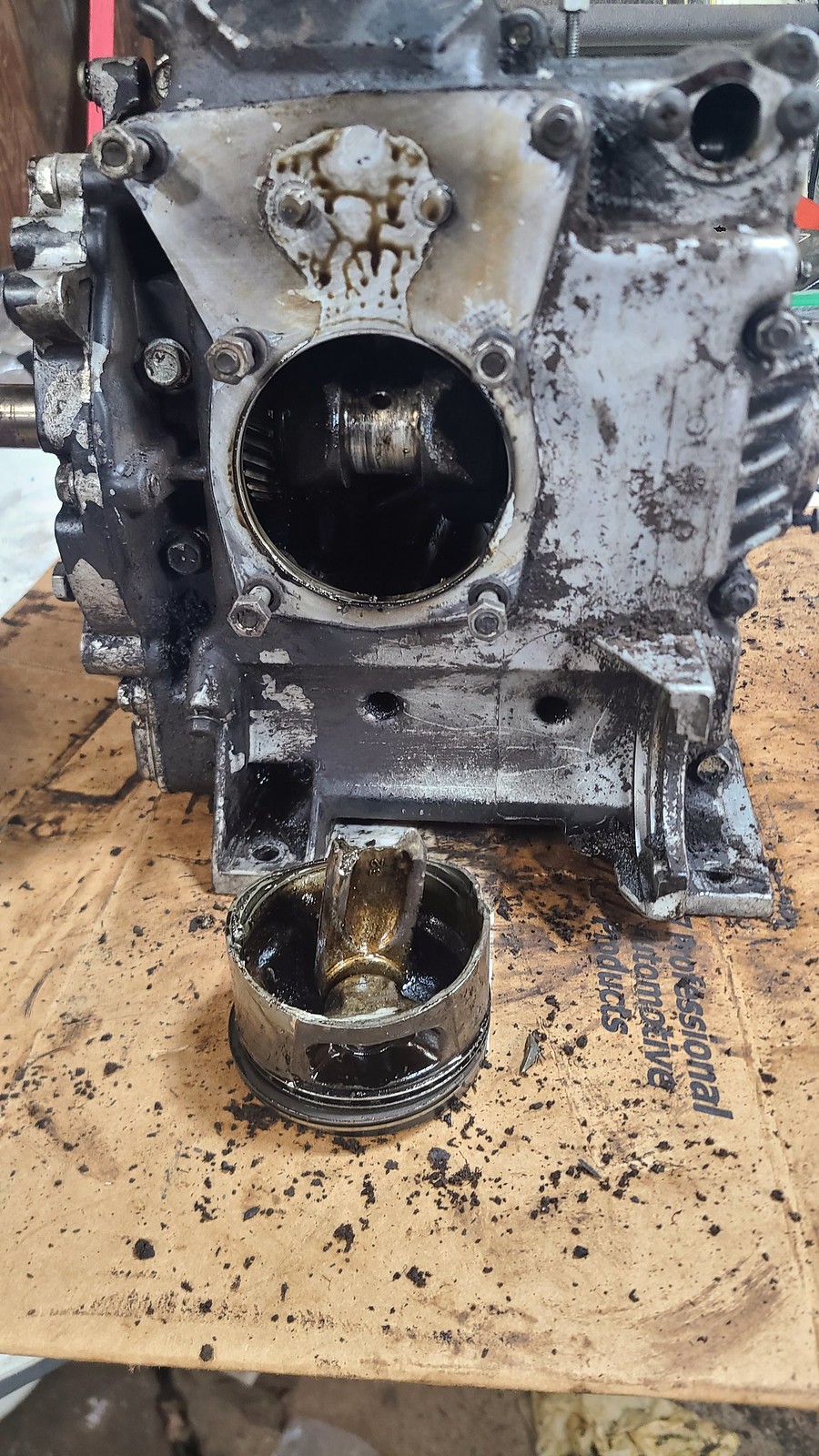

    Broken rod, chunk out of the piston skirt and cylinder wall, and it threw the big end of the rod up into the cam (gear driven pushrod flathead, so cam is right above the crank in the block) and broke it in half, too.

    I've thought about repowering it. But this tractor has a shaft drive off the back of the motor to the HST, and an electric PTO on the front for the mower deck/blower, it would require quite a bit of fu(&ery to adapt a different engine in there. I've looked long and hard at the Harbor Freight Predator 22hp V twin. While I think I could do it, it'd probably cost $1500 and a stupid amount of time.

    So now I'm on the hunt for a Kohler Magnum M18 or M20 horizontal shaft engine.... I can get the parts to rebuild it, but I'm hoping to find a complete motor (these were used in Cub Cadets, Simplicities, Toros, even Bobcat 440 skid steers, and more) that's serviceable.

    Nhibbs and euro like this.
  2. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,855
    Trophy Points:
    573
    The pics live up to the title! Mo powah baby!*boom*

    pillboy and Krazylegz1485 like this.
  3. Krazylegz1485
    Offline

    Krazylegz1485 Well-Known Member

    Likes Received:
    3,551
    Trophy Points:
    348
    Damn. That sucks. Pics of said tractor? Just cuz.

  4. pillboy
    Offline

    pillboy Well-Known Member

    Likes Received:
    3,643
    Trophy Points:
    348
    Looks like your typical over-boosted Subaru motor.

    Krazylegz1485 and tangledupinblu like this.
  5. Krazylegz1485
    Offline

    Krazylegz1485 Well-Known Member

    Likes Received:
    3,551
    Trophy Points:
    348
    What do you mean I need to tune for going catless?

    Cotts612 and pillboy like this.
  6. tangledupinblu
    Offline

    tangledupinblu Event Coordinator Staff Member

    Likes Received:
    8,855
    Trophy Points:
    573
    That’s an urban legend. #itllbefine

    euro and Krazylegz1485 like this.
  7. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398

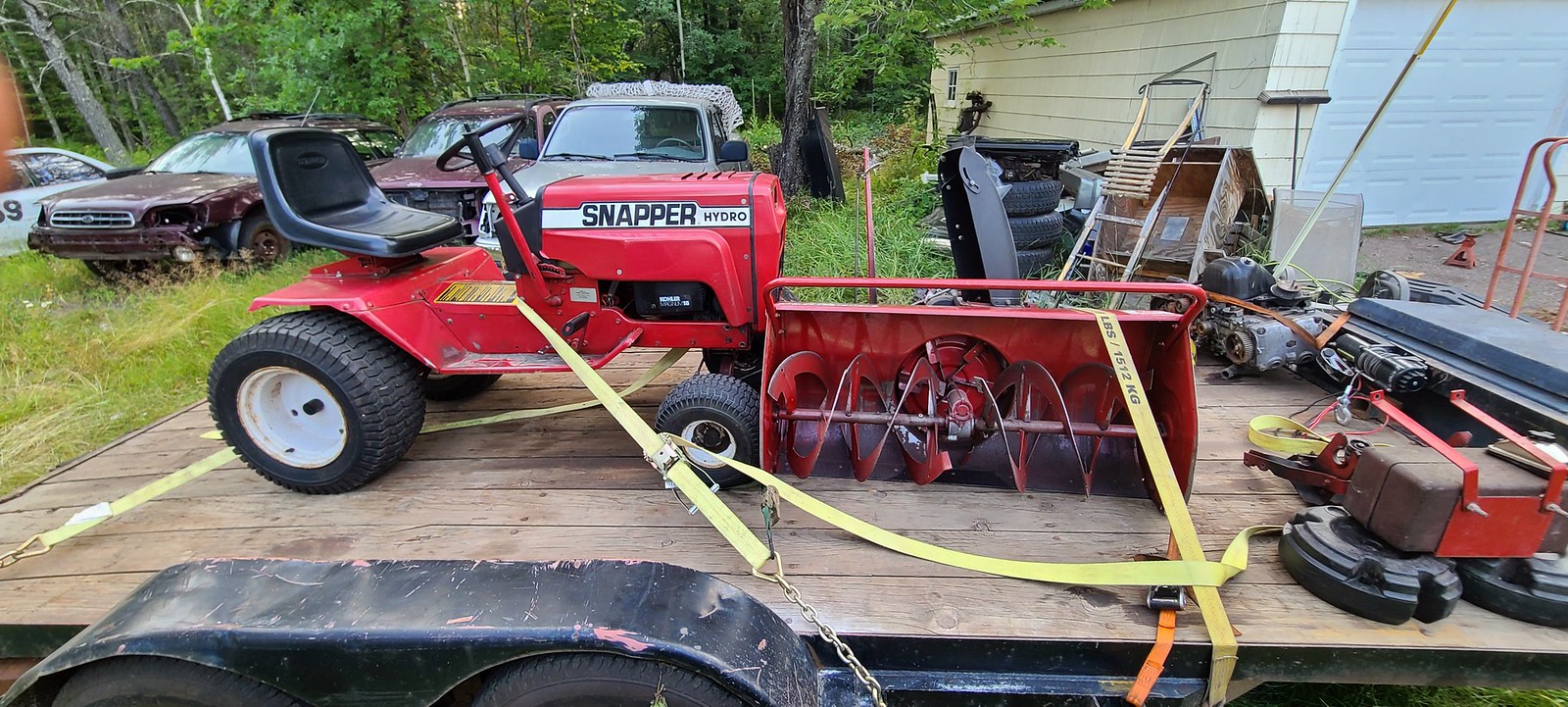

    I found this picture of it on the trailer right after bringing it home.
    [​IMG]
    2023-01-31_11-22-56
    by Numbchux, on Flickr

    Krazylegz1485 and tangledupinblu like this.
  8. Nhibbs
    Offline

    Nhibbs Well-Known Member

    Likes Received:
    2,222
    Trophy Points:
    348
    Kinda crazy it was designed to only run at part throttle and you were able to kill it just by opening the throttle more. I feel like in all of the lawn mowers I have worked on full throttle is just wide open.

  9. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398
    I think the overrevving was the biggest and final coffin nail, but not the only. It does have over 1500 hours on it and is over 30 years old. The cooling fins were all packed with what looked like mud ( 30 years of moisture and dust...). The oil (which I had changed after mowing season last fall) was very black.

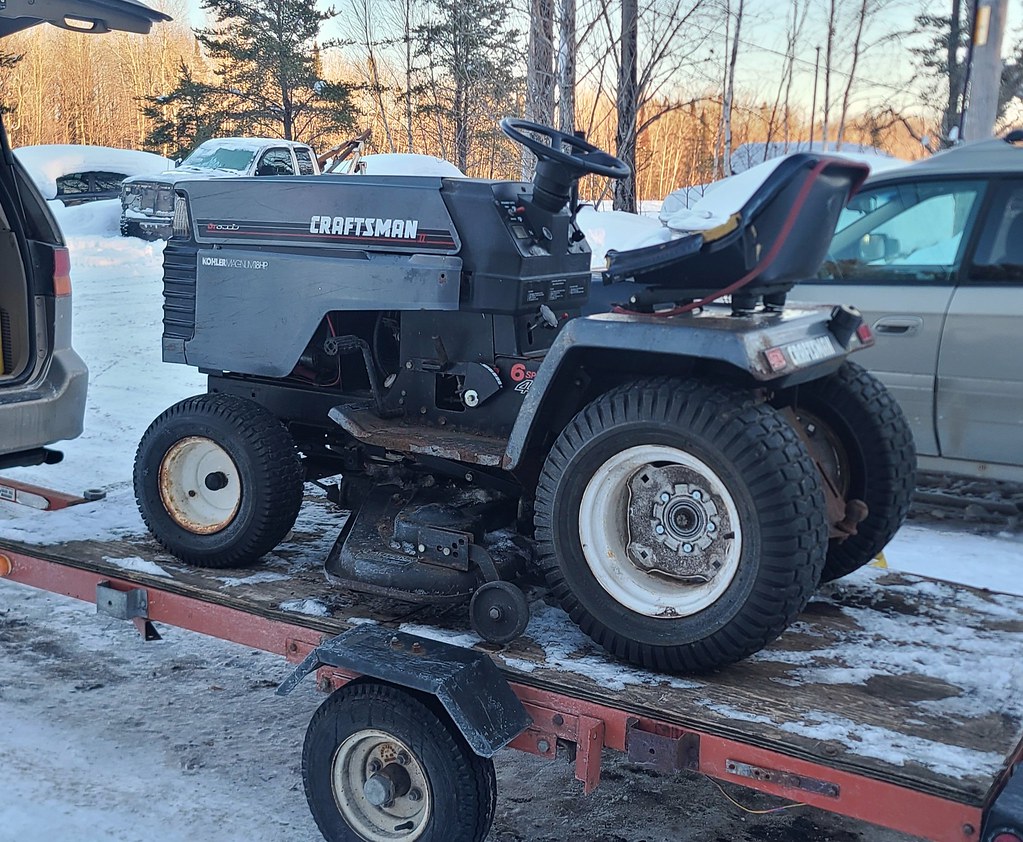

    Bought a pretty rough Craftsman yesterday with the same motor...
    [​IMG]
    2023-02-06_02-10-27
    by Numbchux, on Flickr

  10. Cotts612
    Offline

    Cotts612 Well-Known Member

    Likes Received:
    652
    Trophy Points:
    298
    Nice! Rev her up!
