Wondering what the diameter of various subaru center caps are.

Discussion in 'General Subaru Discussion' started by JasonoJordan, Dec 13, 2011.

  1. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Well as a few of you have seen i got a set of cr-v steelies for my winter rim. Well they did not come with center caps nor did i really want honda center caps...Im wondering a couple things.

    1. What size are the wrx,sti,and lgt center cap sizes
    2. could any of these work with said honda rims.
    3. If anyone has some center caps from various cars i can try out with said rims.

    Thanks in the mean time will be doing various google searches....

  2. pillboy
    Offline

    pillboy Well-Known Member

    Likes Received:
    3,614
    Trophy Points:
    348
    The hole the cap presses into on my LGT rim is 2.16" and the overall diameter of the cap is 2.32" (the best I can tell with my plastic dial caliper). I'm guessing this is going to convert into a 55mm center hole and the overall diameter is 59mm based on online conversion charts.

  3. Chux
    Offline

    Chux Well-Known Member

    Likes Received:
    1,453
    Trophy Points:
    398
    I bet they're the same 56.1mm as the hub bore.

  4. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Thanks for the info.

  5. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398

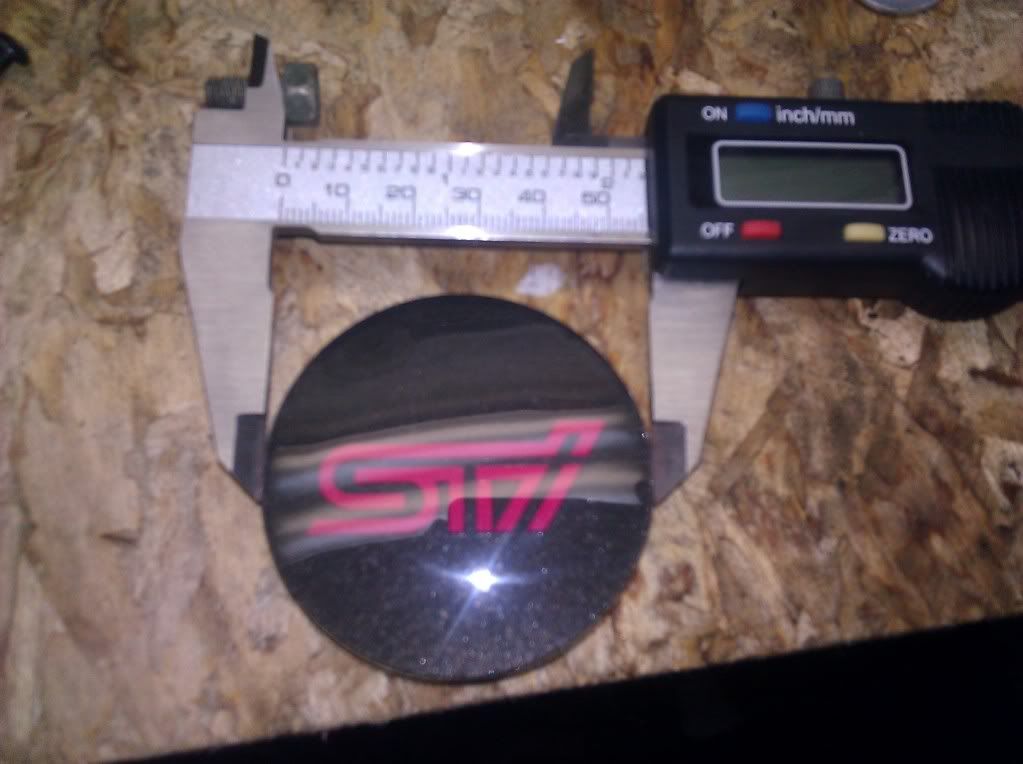

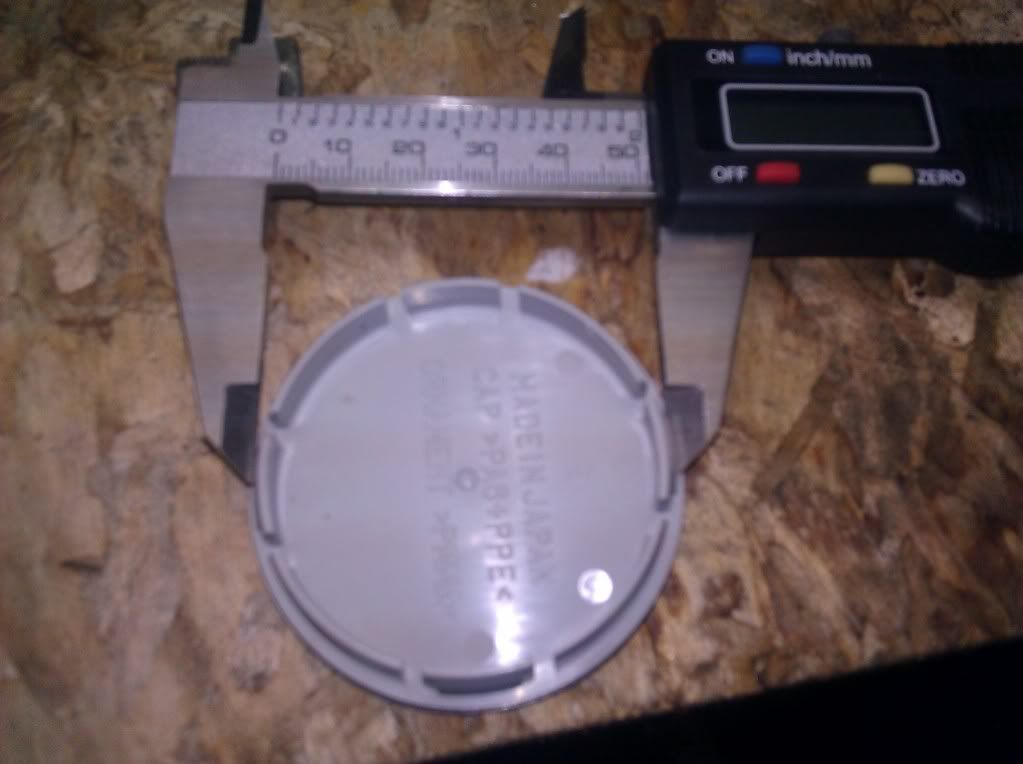

    Heres an sti centercap

    [​IMG]

    [​IMG]

  6. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Shean would u mind me borrowing one for test fittint?

  7. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    No problem bud. Text me or show up to a tuesday meet.

  8. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Found on the 09 crv wheels that i am looking for center caps. Od of center cap is 68mm id is 60mm

  9. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    so with my new found information does anyone know of a plastic place in the cities that can custom make me some of these buggers?

  10. Tash
    Offline

    Tash Well-Known Member

    Likes Received:
    775
    Trophy Points:
    198
    Idk iif the Honda symbol is raised in the center cap or not but if not what is wrong with just painting over the Honda symbol? Is its raised sand it down carefully and paint?

  11. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Well problem is one of 2 things. Normally it is raised on this wheel. 2. i would have to have said center caps to do this. the ones i got from the salvage yard did not come with them and to replace them with factory ones at the price of even 50 bucks to just paint over them sounded obserd.

  12. Tash
    Offline

    Tash Well-Known Member

    Likes Received:
    775
    Trophy Points:
    198
    Ah didn't know you didn't have them

  13. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Yea i wish they did come with them because then i would have no problem defacing them haha.

  14. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    Never mind my text then. The custom center caps will be more than $50 a set.

  15. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    ouchhhhhh haha, well it might come to that route but if they are nice custom ones thats not a problem its just thought it was pointless to get nice oem honda ones and cover them in paint is all

  16. idget
    Offline

    idget Want to pokéman? PM ShortytheFirefighter Staff Member

    Likes Received:
    4,334
    Trophy Points:
    398
    From what i remember they were about 100 for plain ones custom sized in platic. About 300 for billet ones with a porsche logo cut to cutom size. Im assuming they can do any logo with the appropriate image file.


  17. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Yea that sucks being there are alot of blanks on ebay just seeminly none in the right size. Can get a set of oem ones for 45 shipped might just have to go that route.

  18. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Confirmed it with the subaru dealer that no center cap ever stocked by them would work with the crv rims i have. However found a cheap alternative by just going down to the honda dealer with the wheel. $8.25 a cap will post the part number 2 maro when i get it on the reciept.

    Coat of paint to cover the honda badge and we will be good to go.

  19. pillboy
    Offline

    pillboy Well-Known Member

    Likes Received:
    3,614
    Trophy Points:
    348
    Duct tape would work also.

  20. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Picked up my 3 caps that had to be ordered today. The part number that worked with the 09 cr-v steelies i have is 44732-s0x-a01(That is a zero not a o for people that want clarification)
    Caps at time of purchase were 8.25ea + tax.

    The cap according to my short google search belongs to a 08-11 honda element.

  21. JasonoJordan
    Offline

    JasonoJordan Well-Known Member

    Likes Received:
    1,697
    Trophy Points:
    398
    Pictures of said caps painted on the car as well as the wheels clearing brembo's

    [​IMG]

    [​IMG]

    [​IMG]
